Transmission Vent Replacement

Transmission Vent Replacement

Removal Procedure

1. Remove the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement (Service and Repair) .





Important: The transaxle vent is press-fitted to the transaxle.

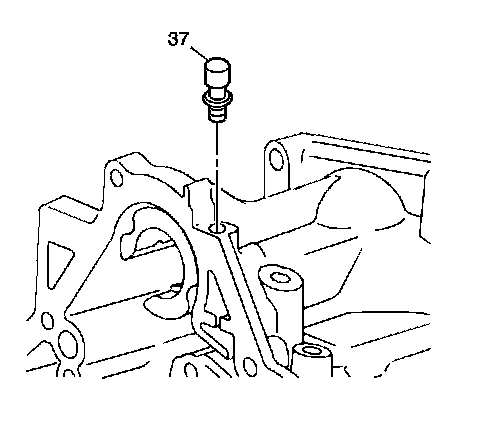

2. Remove the transaxle vent (37).



Installation Procedure





1. Install the transaxle vent (37).
2. Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement (Service and Repair) .
