Drive Axle Oil Seal Removal - Left Side
Drive Axle Oil Seal Removal - Left Side
Tools Required
* J 23129 Seal Remover
* J 6125-1B Slide Hammer

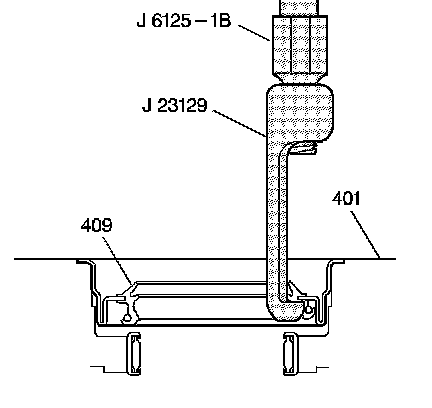

Use J 23129 and J 6125-1B in order to remove the axle oil seal assembly (409) from the case cover (401).
Drive Axle Oil Seal Removal - Left Side
Tools Required
* J 23129 Seal Remover
* J 6125-1B Slide Hammer
Use J 23129 and J 6125-1B in order to remove the axle oil seal assembly (409) from the case cover (401).
