Differential Carrier and Components Removal

Differential Carrier and Components Removal

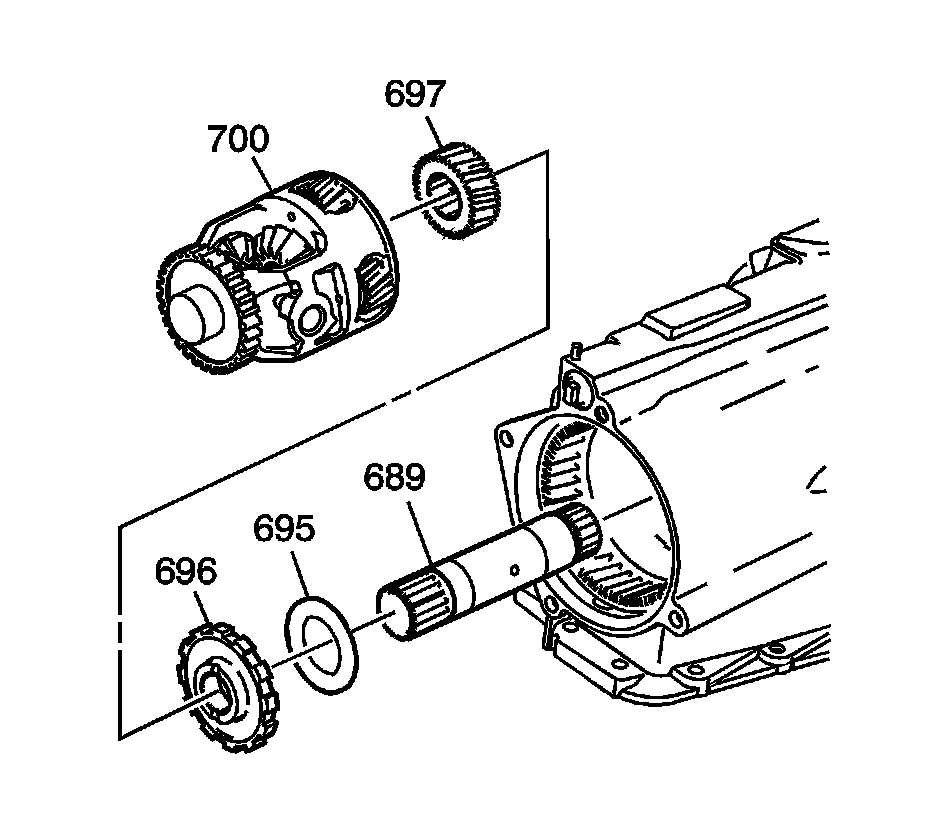

1. Remove the differential carrier assembly (700).
2. Remove the differential carrier sun gear (697).
3. Remove the park gear (696).
4. Remove the thrust bearing (695) from the differential carrier internal gear.
5. Remove the shaft differential carrier sun gear (689).
