Torque Converter Fluid Seal Assemble



Torque Converter Fluid Seal Assemble

Tools Required

J 28540-A Converter Seal Installer





Notice: Install the seal onto the tool before installing into the case to prevent damage to the seal.

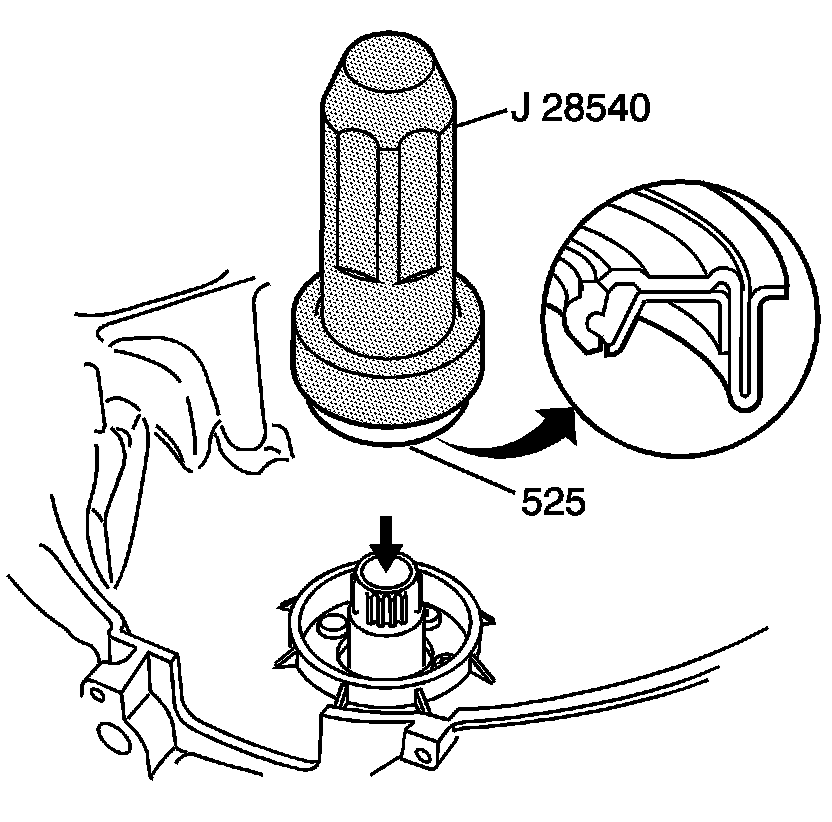

Use J 28540-A and a mallet in order to install the torque converter oil seal (525).
