Reverse Reaction Drum Assemble

Reverse Reaction Drum Assemble

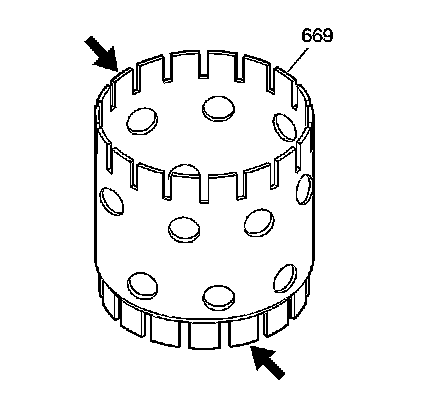

1. Inspect the reverse reaction drum (669) for the following:

* Cracks
* Damaged splines
* Distortion

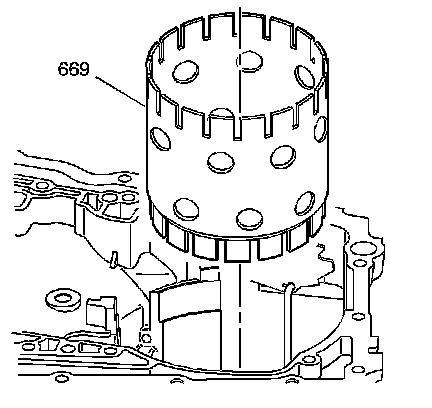

2. Install the reverse reaction drum (669) into the case and engage the drum onto the input carrier splines.
