Oil Pump Drive Shaft Assemble

Oil Pump Drive Shaft Assemble

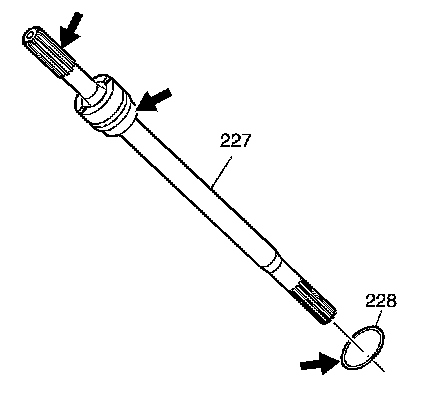

1. Inspect the oil pump drive shaft (227) for the following:

* A scored or rough journal surface
* Stripped or burred splines
* A cut or damaged seal

2. Install a new oil pump drive shaft seal (228) onto the oil pump drive shaft (227).

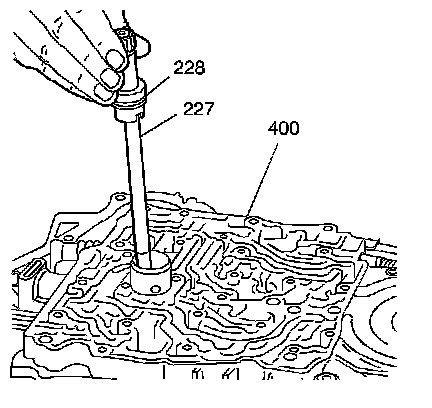

3. Install the oil pump drive shaft assembly (227) into the case cover (400).
