Input and 3rd Clutch Functional Air Check

Input and 3rd Clutch Functional Air Check






Notice: Do not exceed the recommended amount of air pressure or it may damage or cause seals to roll.

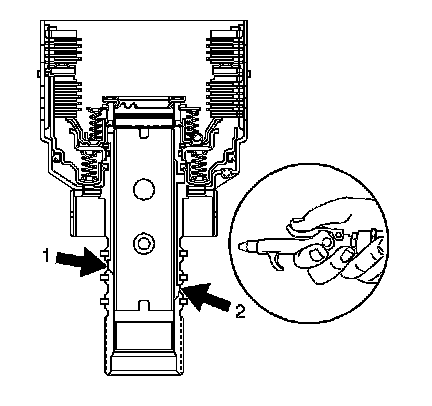

1. Use a rubber tipped air nozzle in order to apply a maximum 138 kPa (20 psi) at each indicated fluid passage.
2. Listen for the following:

* The third clutch (1) assembly to apply
* The input clutch (2) assembly to apply
