Driven Sprocket Support Bearing Disassemble

Driven Sprocket Support Bearing Disassemble


Tools Required
* J 34129 Bearing Remover
* J 8092 Driver Handle

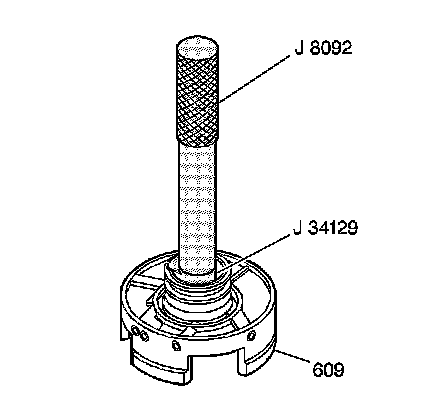

Use J 34129 , J 8092 and a hammer in order to remove the driven sprocket support bearing assembly from the driven sprocket support assembly (609).
