Driven Sprocket Support Bearing Assemble



Driven Sprocket Support Bearing Assemble


Tools Required
* J 34126 Sprocket/Remover Bearing Remover
* J 8092 Driver Handle






Important: Position the driven sprocket support bearing assembly so that markings on the edge are facing up.

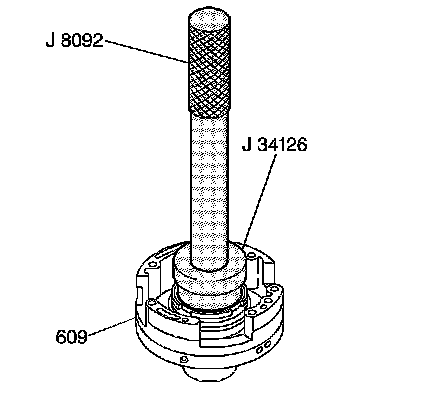

Use J 34126 (2) , J 8092 (1) and a hammer in order to seat the driven sprocket support bearing assembly flush with or below the driven sprocket support assembly (609) hub.
