Case Components Disassemble

Case Components Disassemble

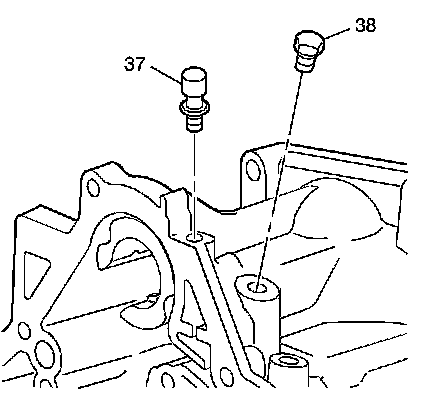

1. Inspect the vent for damage or being plugged. If the vent is damaged, use channel locks and a large screwdriver in order to remove the vent assembly (37).
2. Remove the oil pressure test hole plug (38).
