Case Components Assemble

Case Components Assemble

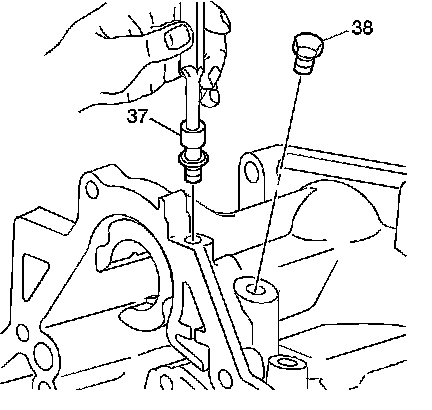

1. Use a hammer and a punch in order to install the vent assembly (37), if necessary.
2. Apply sealant GM P/N 12345382 to the oil pressure test hole plug (38).

Notice: Refer to Fastener Notice .

3. Install the oil pressure test hole plug (38).

Tighten the oil pressure test hole plug (38) to 12 N.m (106 lb in).
