1-2 Support Roller Clutch Assemble

1-2 Support Roller Clutch Assemble

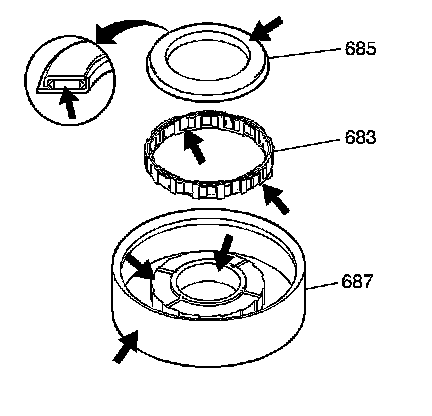

1. Inspect the 1-2 support roller clutch components for the following conditions:

* A scored or burned contact surface for the manual 2-1 band on the 1-2 support drum (687)
* A damaged or worn forward drum bushing
* A damaged or worn inner race of the 1-2 support roller clutch
* A damaged or worn 1-2 clutch roller assembly (683)
* A damaged thrust bearing (685)

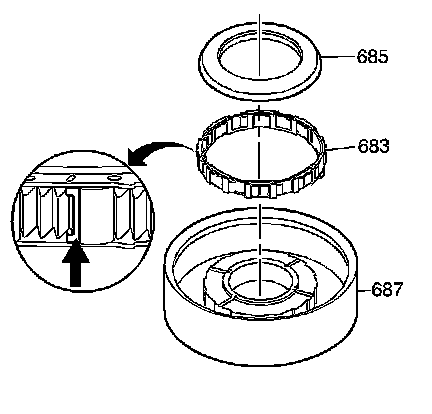

2. Install the 1-2 clutch roller assembly (683) into the 1-2 support drum.
Important: Note the position of the cage assembly to the inner race.



3. Install the thrust bearing (685) onto the 1-2 support drum (687). Press down with hand pressure only.
