Rear Suspension

Stabilizer Shaft Insulator Replacement

Removal Procedure





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .

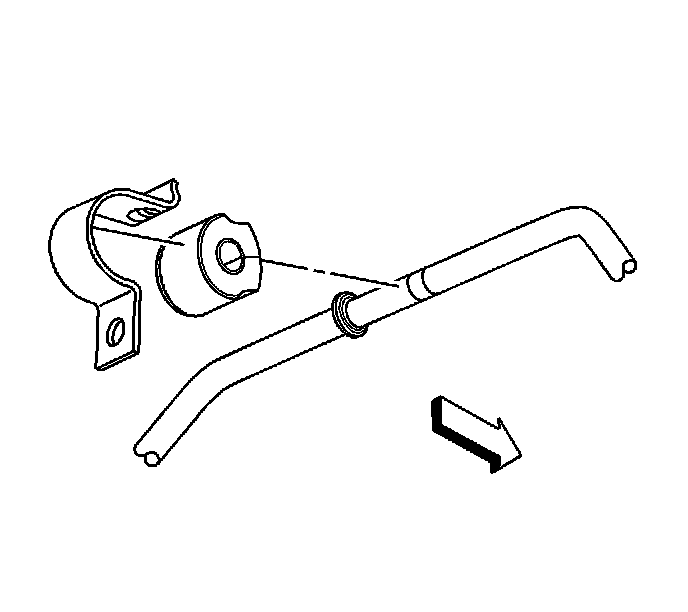

2. Remove the stabilizer shaft bolt and clamp.
3. Remove the stabilizer shaft insulator (2) from the stabilizer shaft.



Installation Procedure





1. Install the stabilizer shaft insulator (2) to the stabilizer shaft.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the stabilizer shaft insulator bracket.

Tighten the bolt to 48 N.m (35 lb ft).

3. Lower the vehicle.
