Refrigerant Pressure Sensor / Switch: Locations

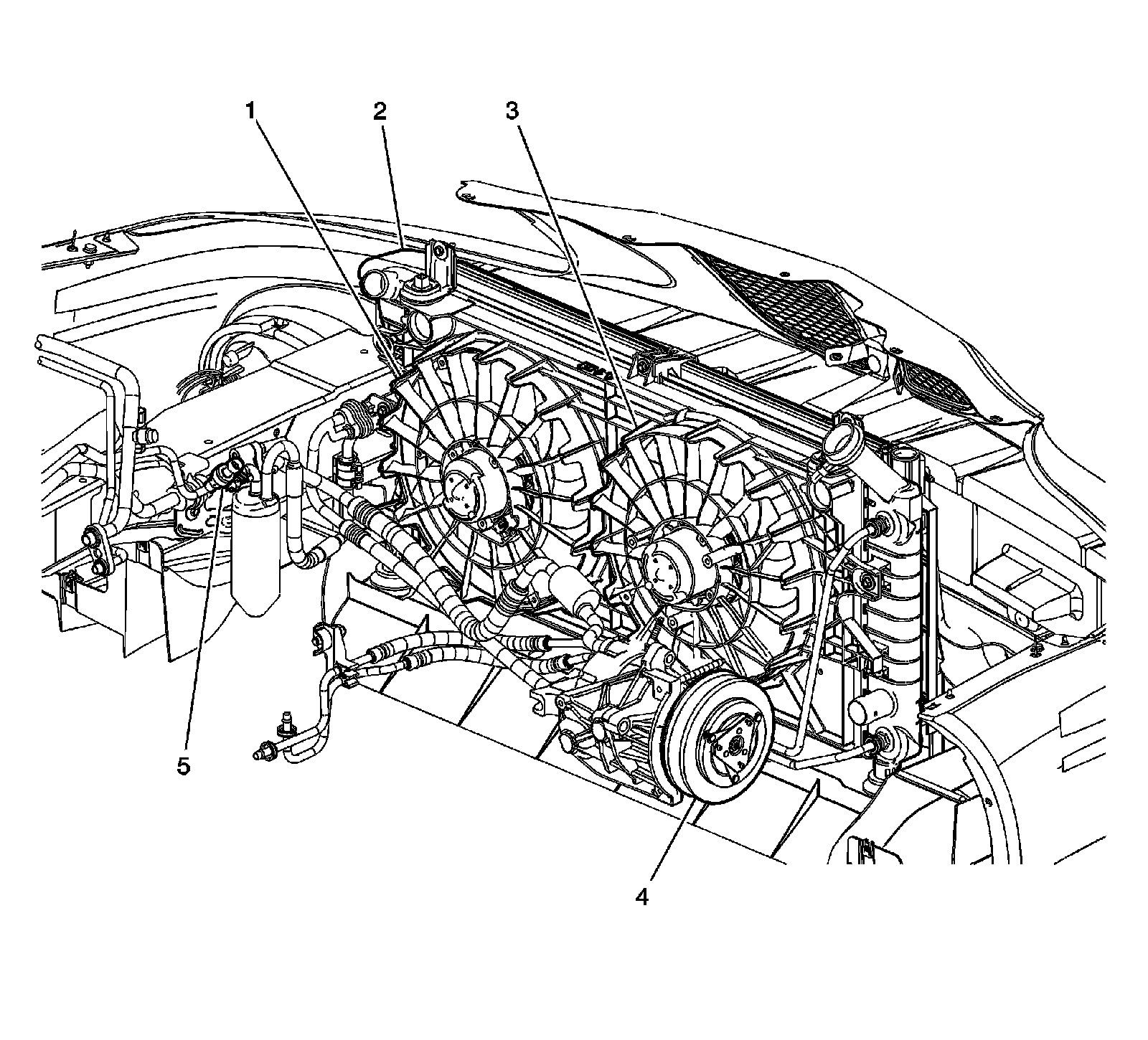

HVAC Cooling (CRFM)

1 - Cooling Fan - Left
2 - Radiator
3 - Cooling Fan - Right
4 - A/C Compressor Clutch
5 - A/C Refrigerant Pressure Switch
