Lumbar Switch Replacement

Lumbar Switch Replacement

Removal Procedure





1. Remove the outer seat cushion trim panel. Refer to Front Seat Trim Panel Replacement (Front Seat Trim Panel Replacement) .

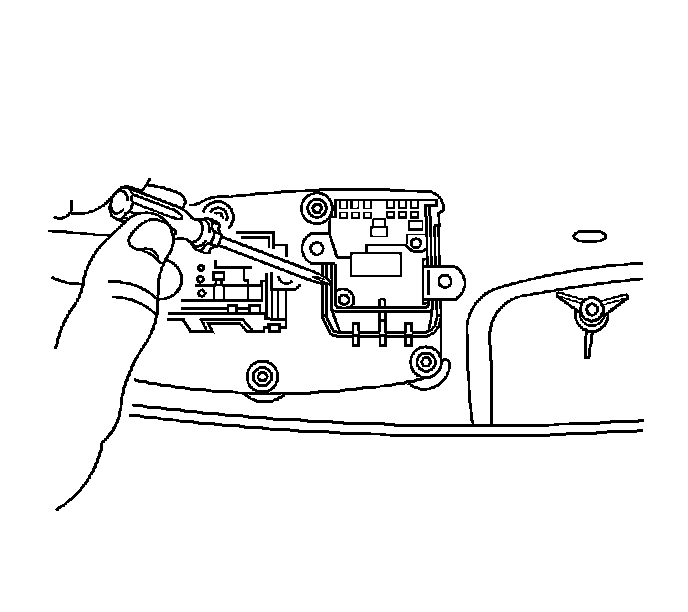

2. Use a small, flat-bladed tool to remove the lumbar control switch from the trim panel retainer.
3. Disconnect the electrical connector from the lumbar switch.
4. Remove the switch from the seat.



Installation Procedure





1. Position the lumbar control switch to the seat.
2. Connect the electrical connector to the lumbar switch.
3. Press the switch into the retainer on the trim panel.
4. Install the trim panel. Refer to Front Seat Trim Panel Replacement (Front Seat Trim Panel Replacement) .
