Shoulder Belt Guide Adjuster Replacement - Front

Shoulder Belt Guide Adjuster Replacement - Front

Removal Procedure





1. Remove the upper quarter trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Service and Repair) .

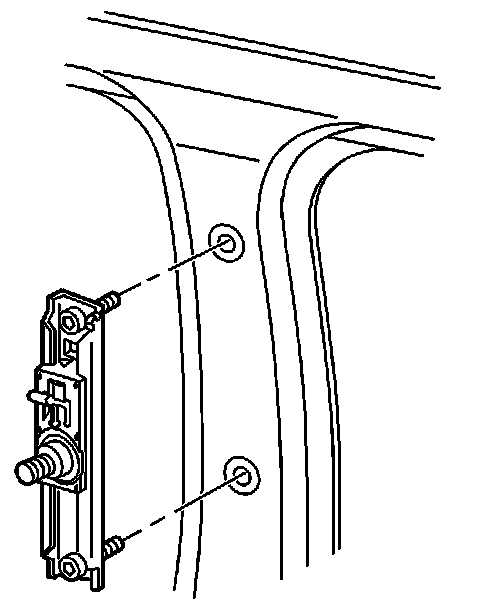

2. Remove the shoulder belt guide adjuster bracket bolts.
3. Remove the shoulder belt guide belt adjuster bracket from the upper center pillar.



Installation Procedure


Important: Verify that the release lever at the top of the bracket is in the full up position.






1. Position shoulder belt guide adjuster bracket to the upper center pillar.

Notice: Refer to Fastener Notice .

2. Install the shoulder belt guide belt adjuster bracket bolts.

Tighten the shoulder belt guide adjuster bracket bolts to 42 N.m (31 lb ft).

3. Install the upper quarter trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Service and Repair) .
