Guide Replacement - Rear Seat Shoulder Belt

Guide Replacement - Rear Seat Shoulder Belt

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover


Removal Procedure

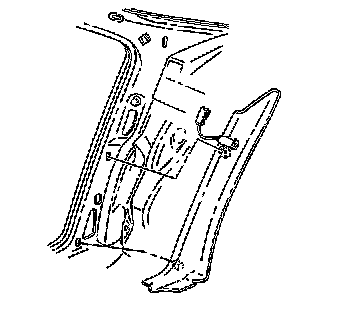

1. Push back the rear seat back.
2. Remove the push-pin retainer from the rear shoulder belt guide using the J 38778 .
3. Remove the rear shoulder belt guide from the lower rear quarter trim panel.



Installation Procedure





1. Push back the rear seat back.
2. Align the rear shoulder belt guide to the lower rear quarter trim panel.
3. Install the push-pin retainer to the rear shoulder belt guide.
