Electrical Diagrams



SIR Schematics

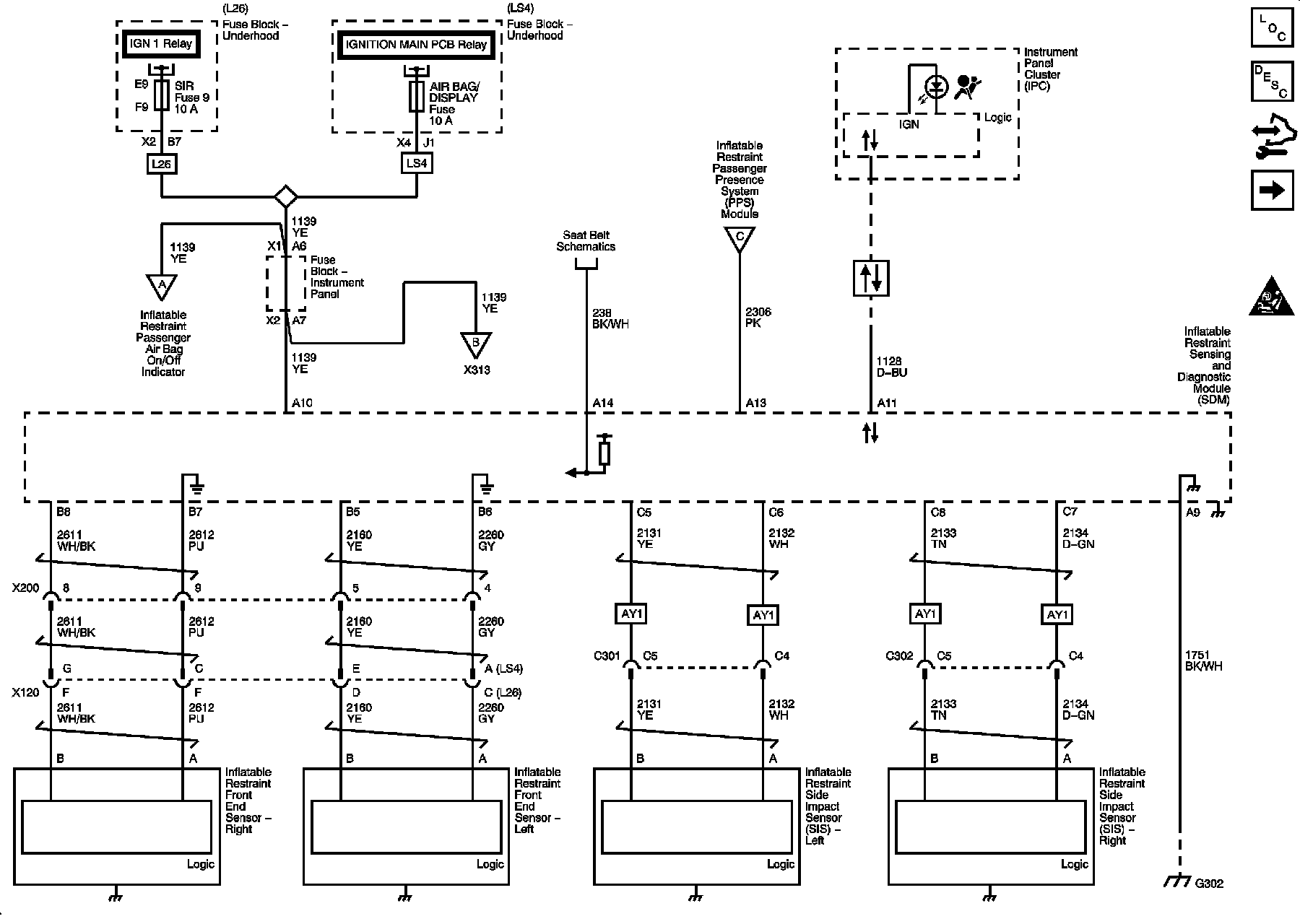

Power, Ground, DLC, Indicators, Sensors and References

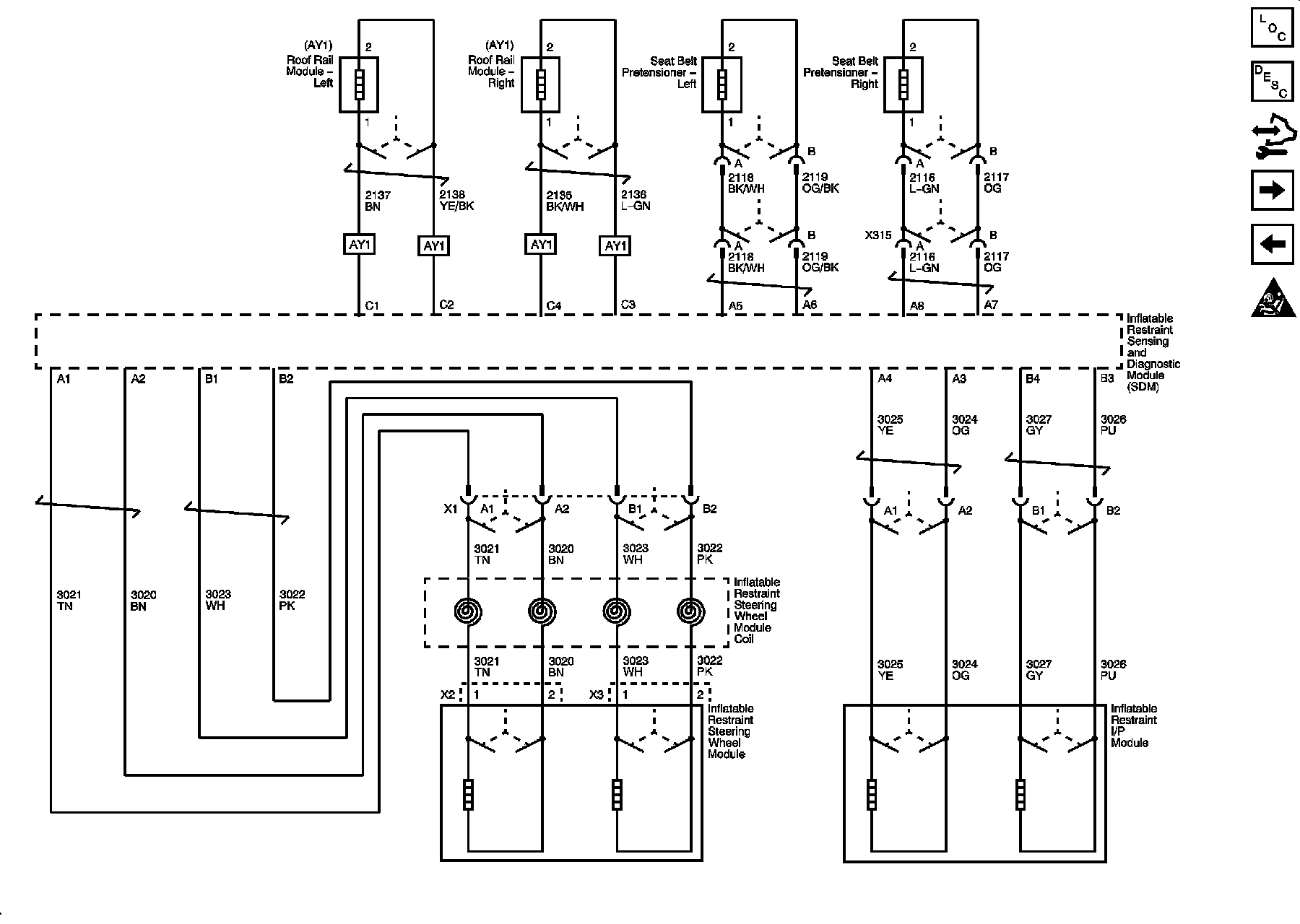

Deployment Loops

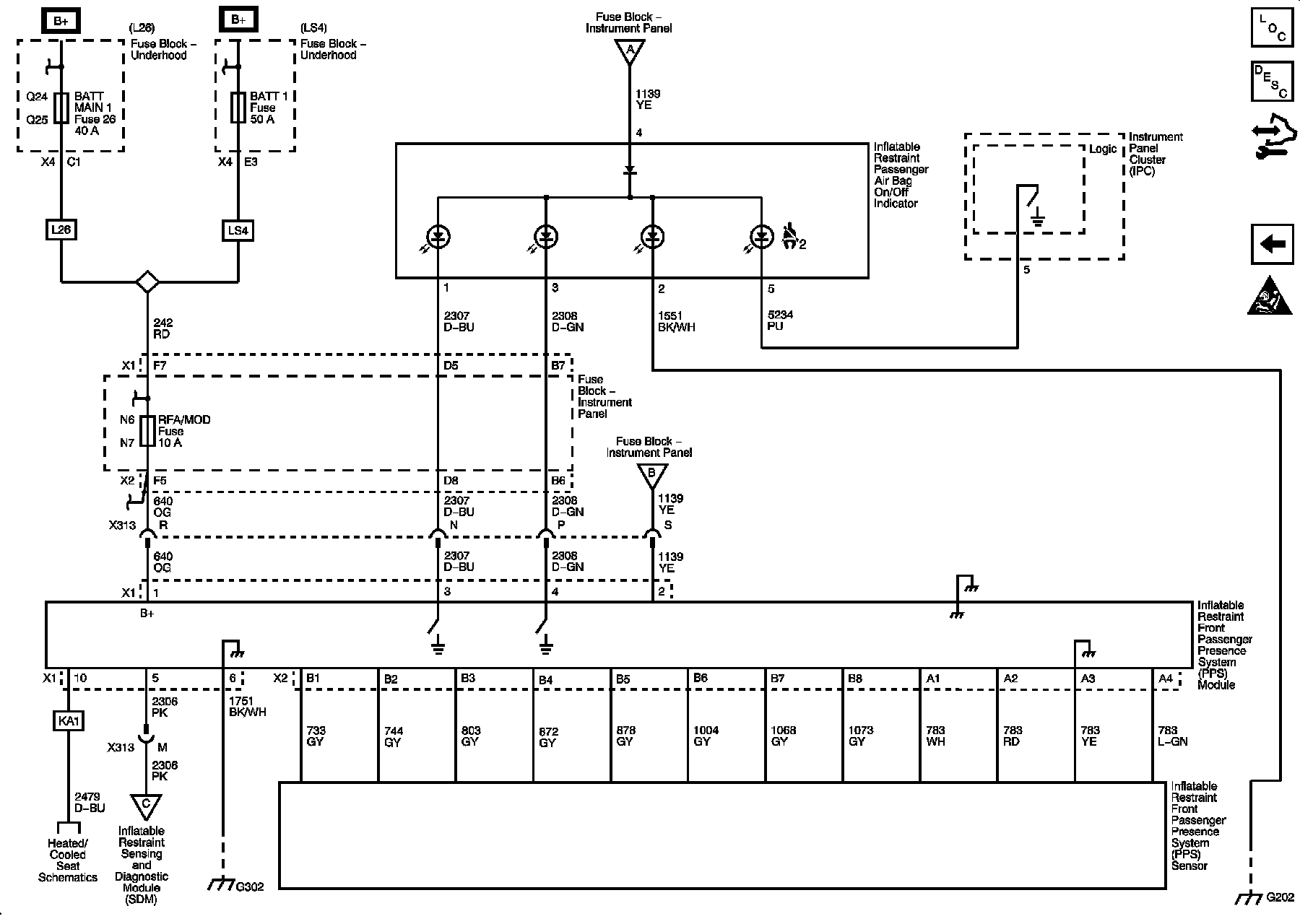

Passenger Presence System
