Fuel Filler Neck: Service and Repair

Fuel Tank Filler Pipe Housing Replacement

Removal Procedure





1. Open the fuel filler door.
2. Remove the fuel filler cap.

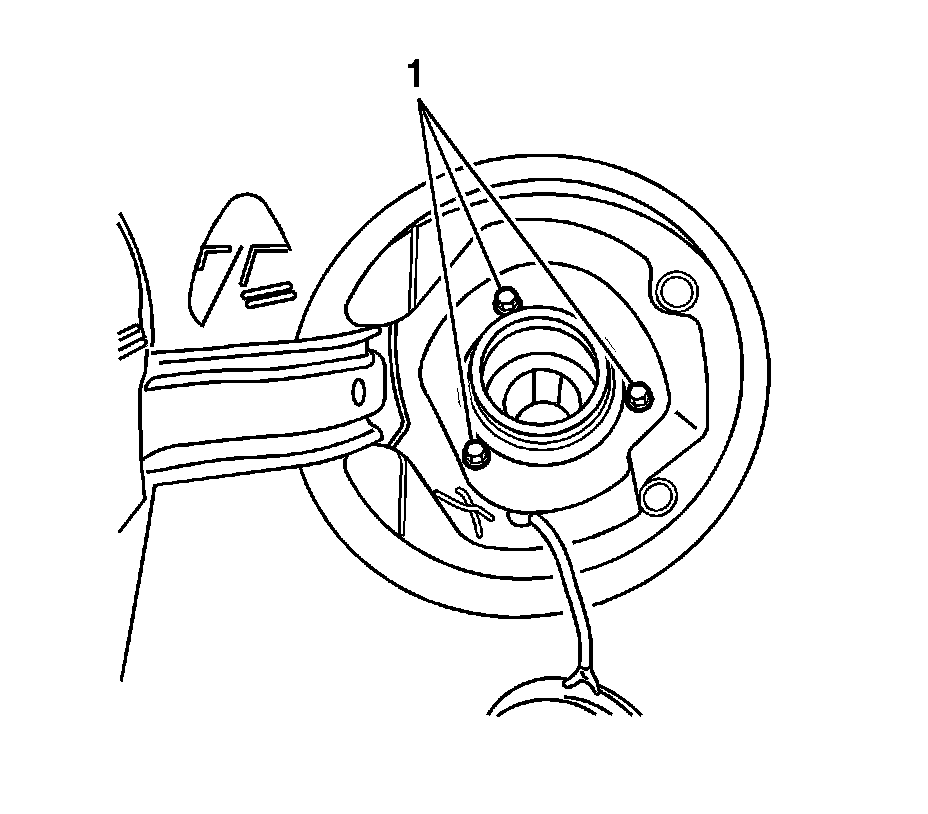

3. Remove the fuel filler pocket screws (1) from the pocket.

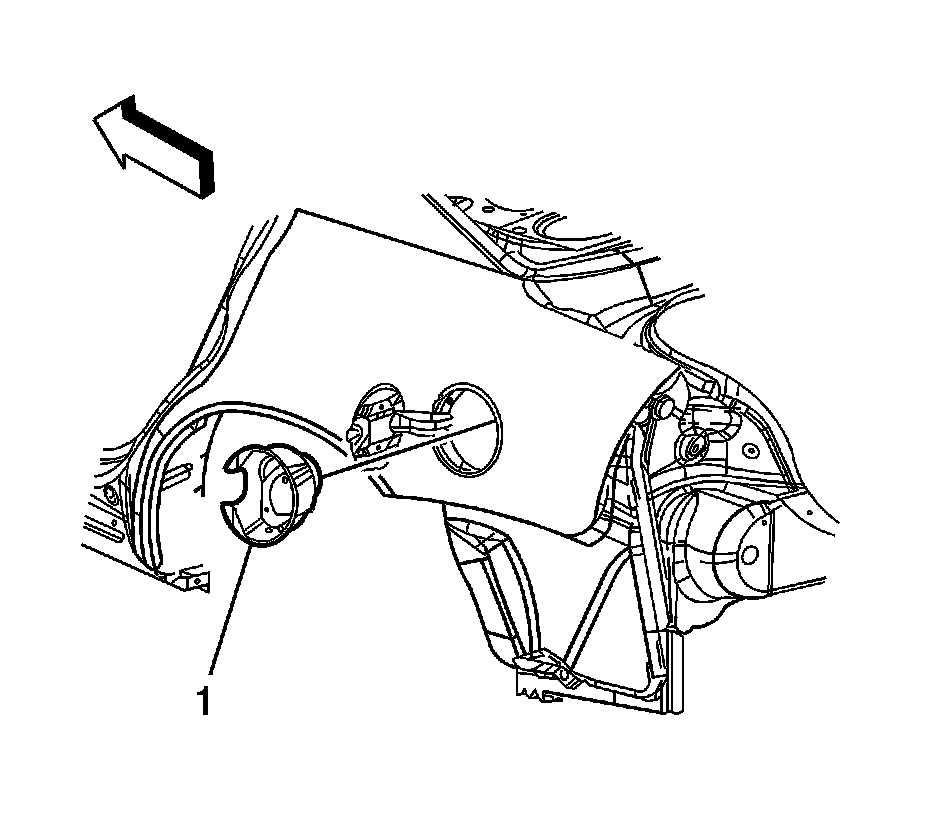

4. Remove the fuel filler pocket (1) from the vehicle.



Installation Procedure





1. Install the fuel filler pocket (1) to the quarter panel.





Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the fuel filler pocket screws (1) to the pocket.

Tighten the screws to 5 N.m (44 lb in).

3. Install the fuel filler cap.
4. Close the fuel filler door.
