Canister Purge Solenoid: Diagrams

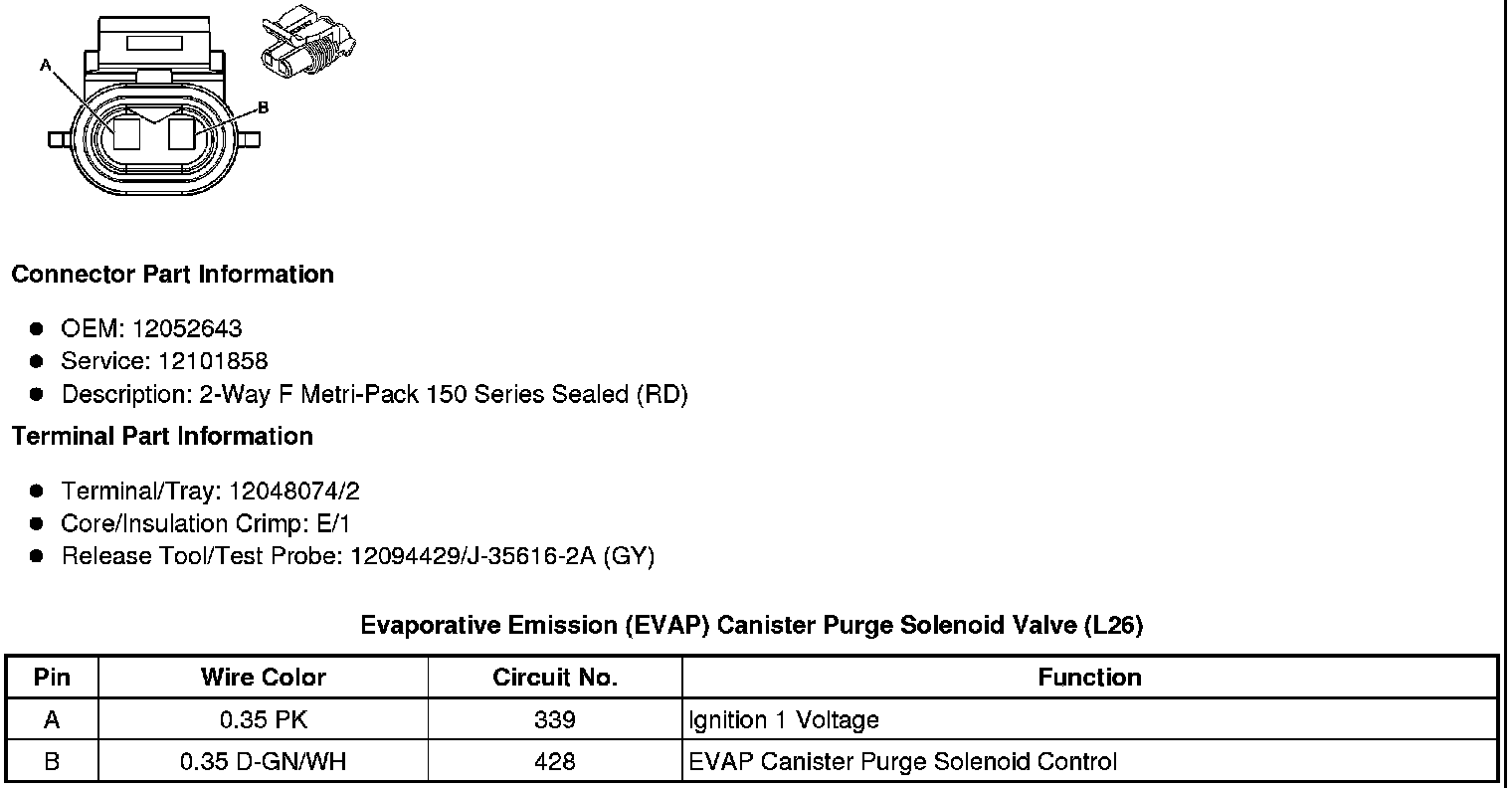

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (L26)

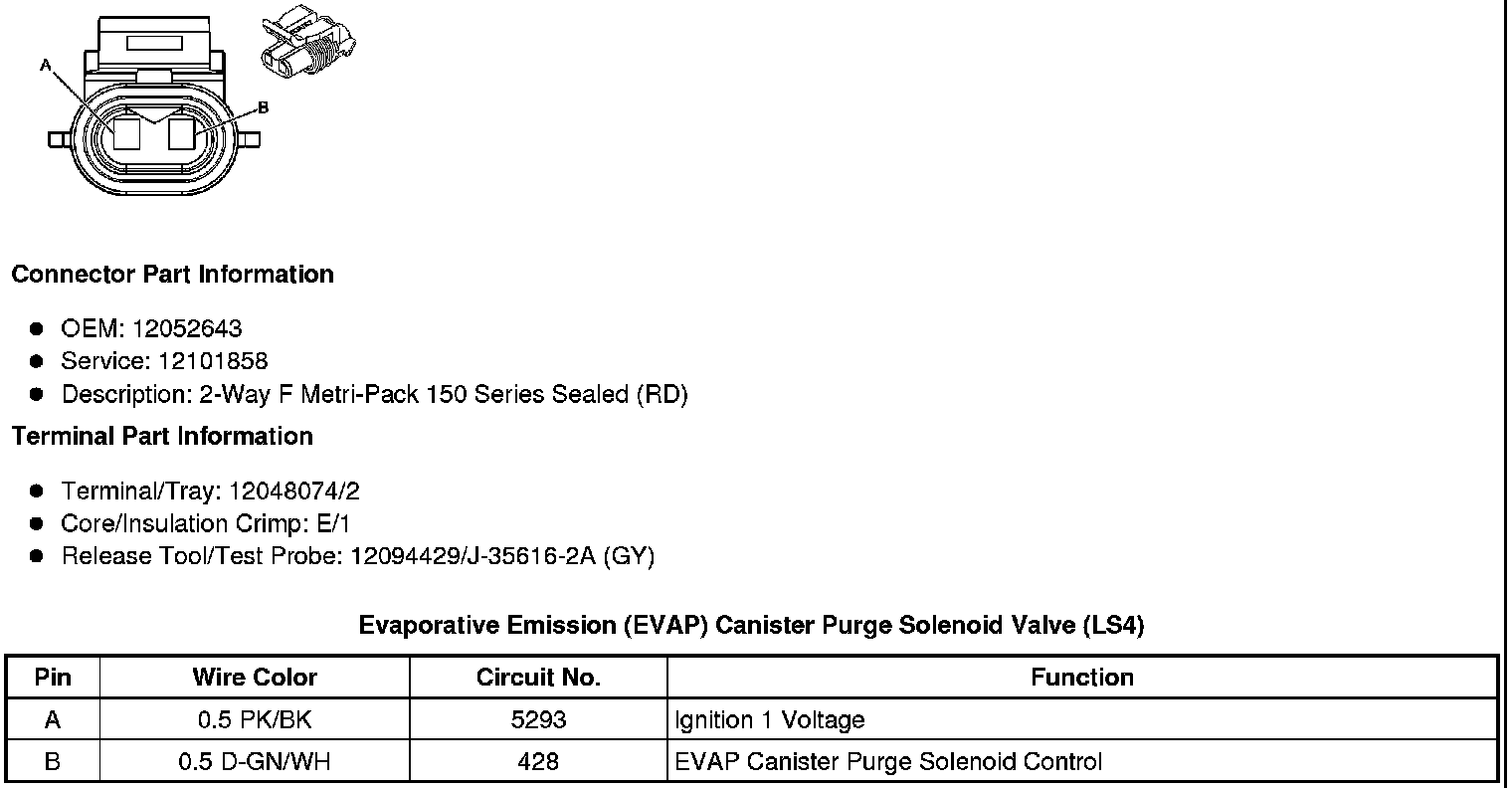

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LS4 - 5.3L)
