Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Auxiliary Power Outlet >> Diagrams >> Electrical Diagrams

Electrical Diagrams

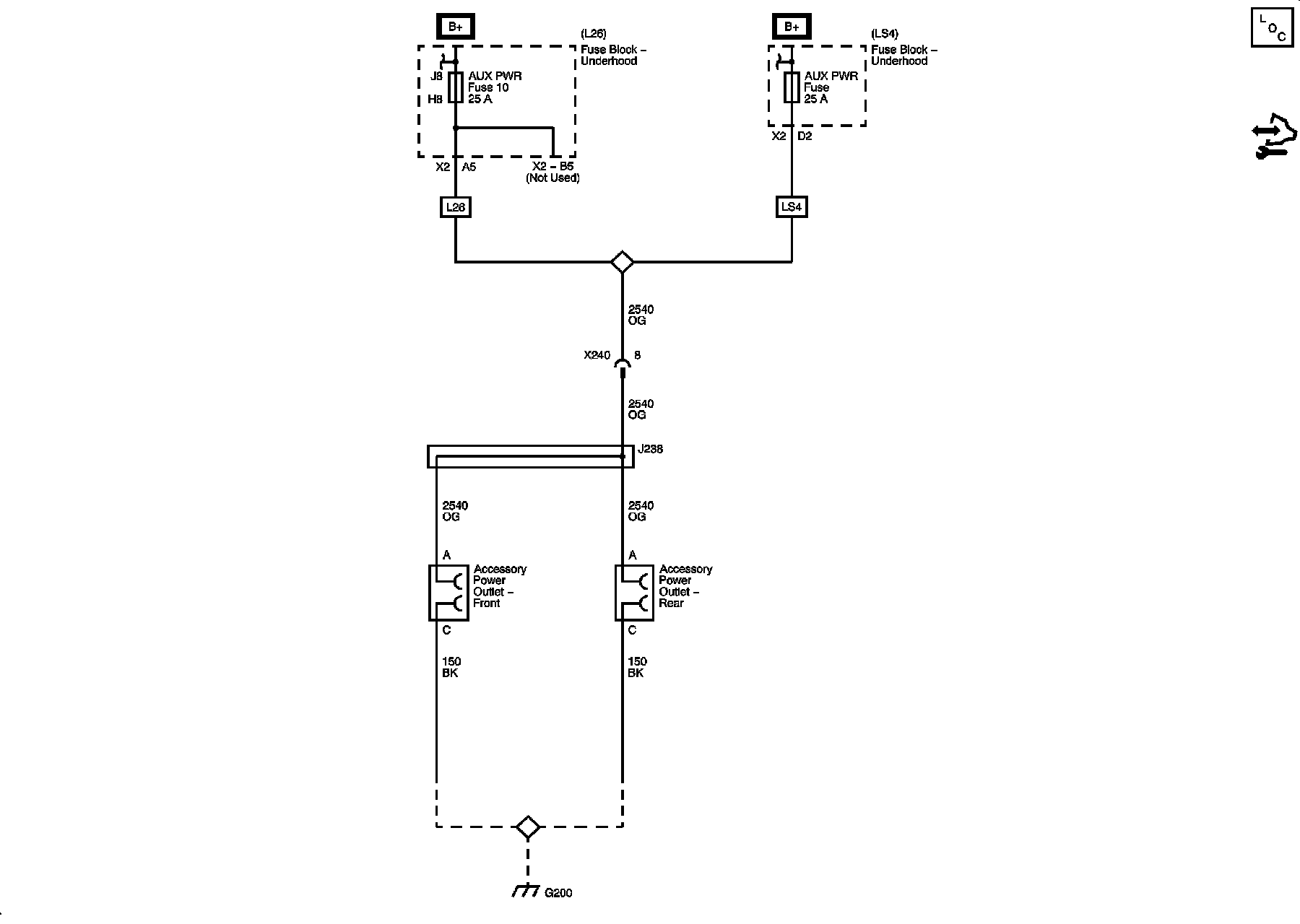

Cigar Lighter/Power Outlet Schematics

Power Outlets
