Overhead Console Courtesy Lamp Replacement

Overhead Console Courtesy Lamp Replacement

Removal Procedure

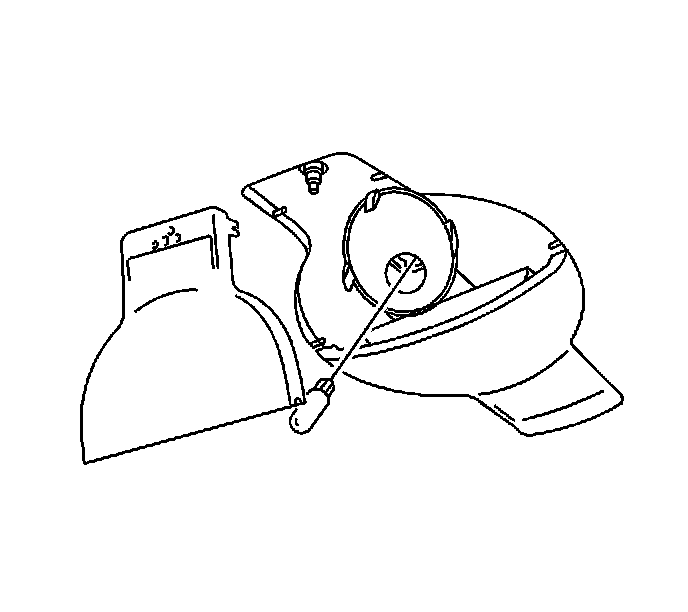

1. Remove the lamp lens.

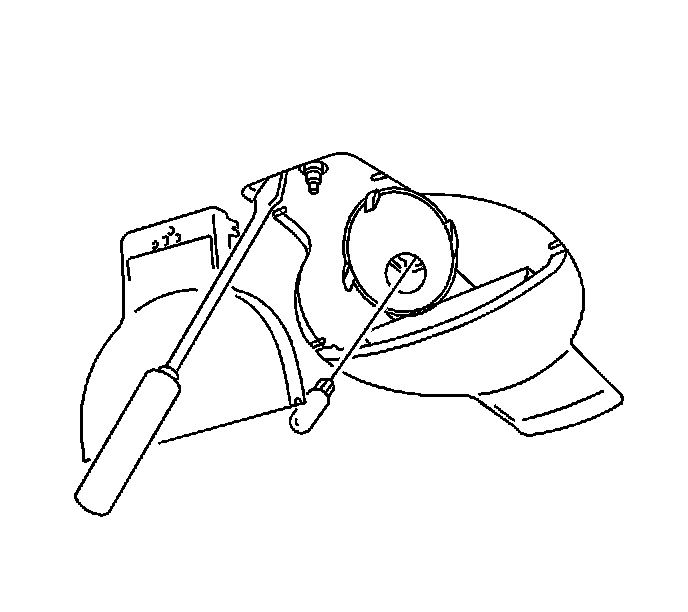

2. Disengage the reflector retainers and remove the reflector.
3. Remove the bulb



Installation Procedure





1. Install the bulb.
2. Install the reflector and engage the reflector retainers.
3. Install the lamp lens.
