Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Diagrams

Instrument Cluster / Carrier: Diagrams

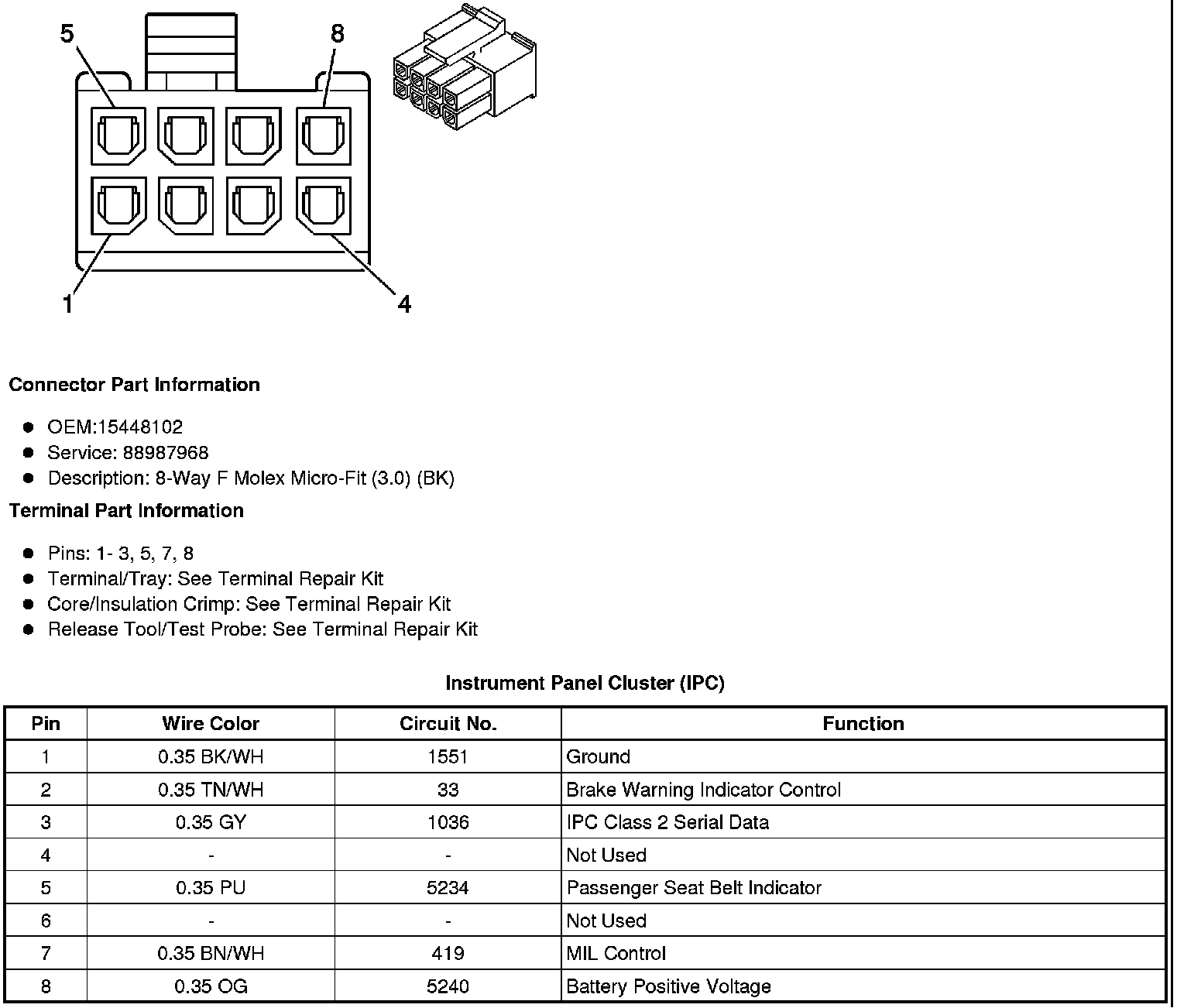

Instrument Panel Cluster (IPC)
