Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Head Up Display Diagrams

Head Up Display Diagrams

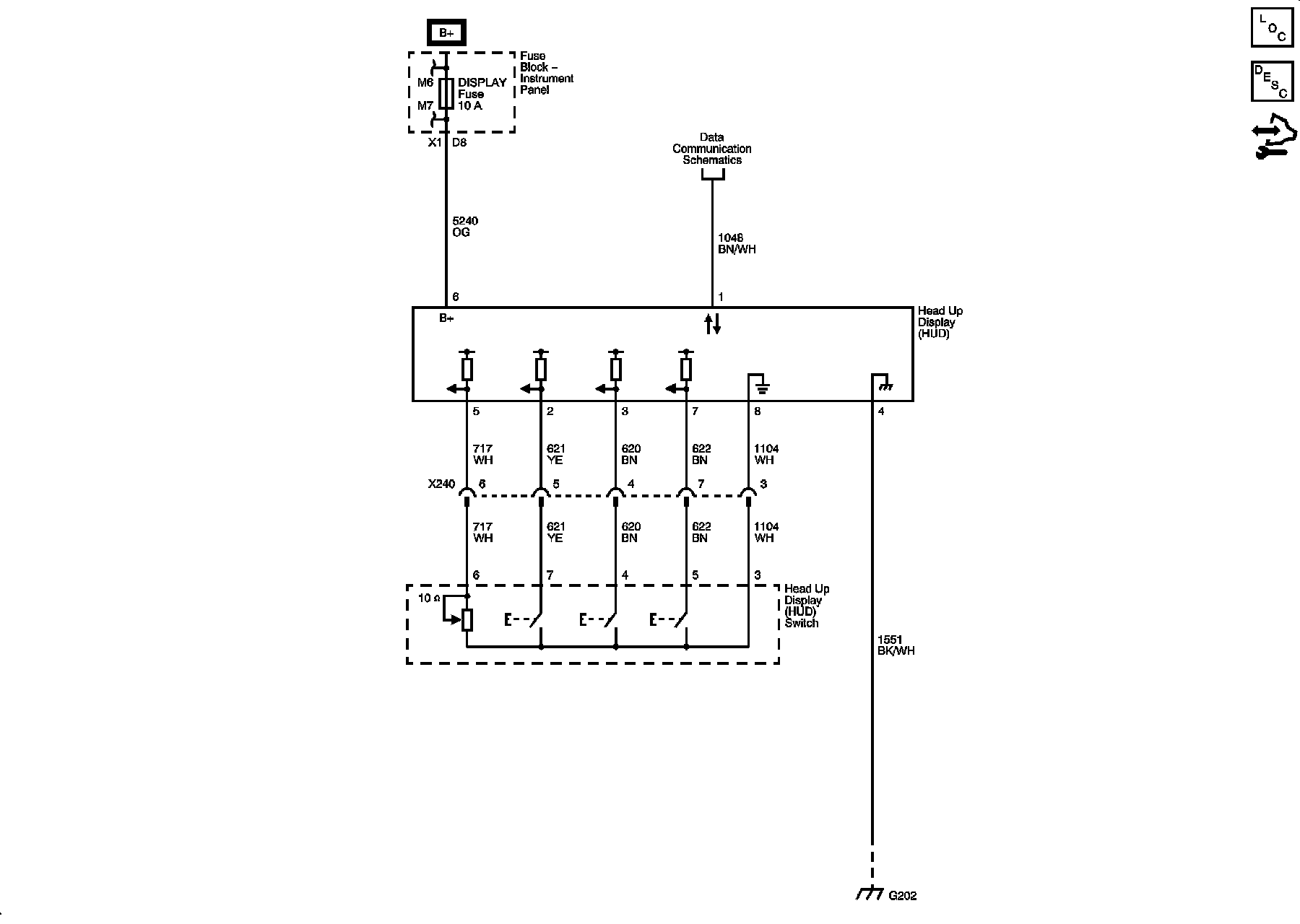

Head Up Display Schematics
