Compass: Service and Repair

Electronic Compass Module Replacement

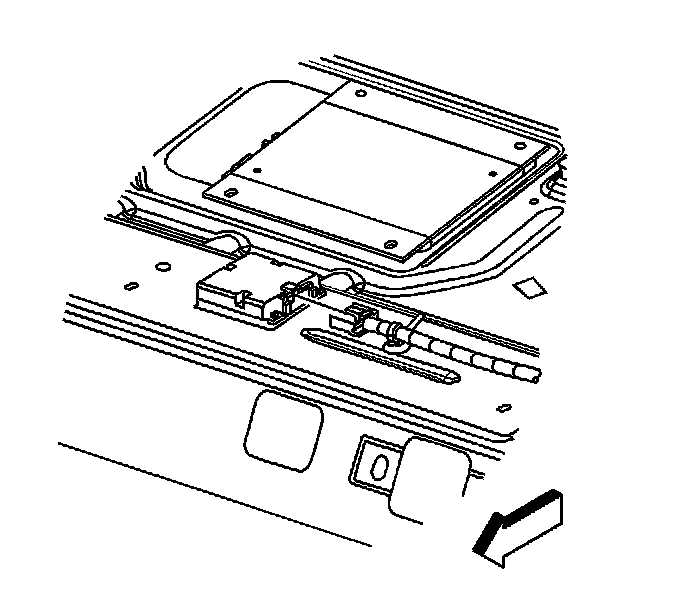

Removal Procedure





1. Remove the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair) .
2. Reposition the sound barrier for access.
3. Disengage the electronic compass retainers.
4. Disconnect the electrical connector.
5. Remove the electronic compass.



Installation Procedure





1. Connect the electrical connector.
2. Align the electronic compass to the openings in the rear shelf. Install the electronic compass.
3. Install the sound barrier.
4. Install the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair) .
