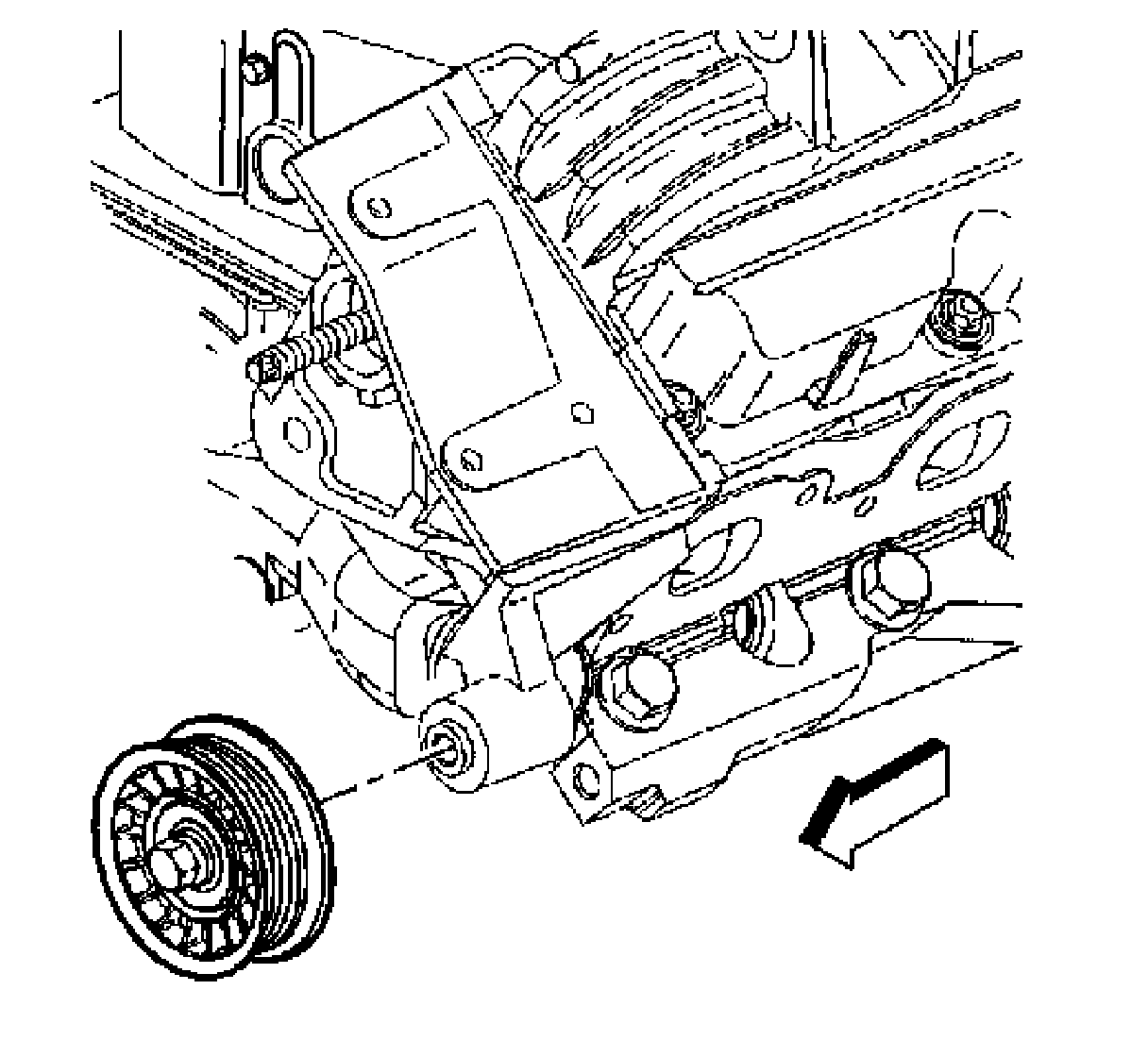

93. Drive Belt Idler Pulley Installation



Drive Belt Idler Pulley Installation





1. Install the drive belt idler pulley.

Notice: Refer to Fastener Notice .

2. Install the drive belt idler pulley bolt.

Tighten the drive belt idler pulley bolt to 50 N.m (37 lb ft).
