90. Water Outlet and Thermostat Installation

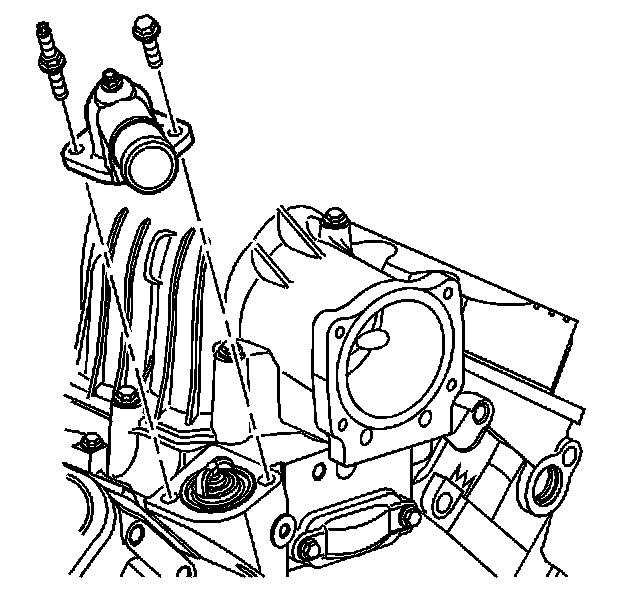

Water Outlet and Thermostat Installation (L26 - 3.8L)





1. Install the thermostat.
2. Install the water outlet.

Notice: Refer to Fastener Notice .

3. Install the water outlet bolt and stud.

Tighten the water outlet bolt and stud to 27 N.m (20 lb ft).
