82. Valve Rocker Arm Cover Installation - Right Side

Valve Rocker Arm Cover Installation - Right Side

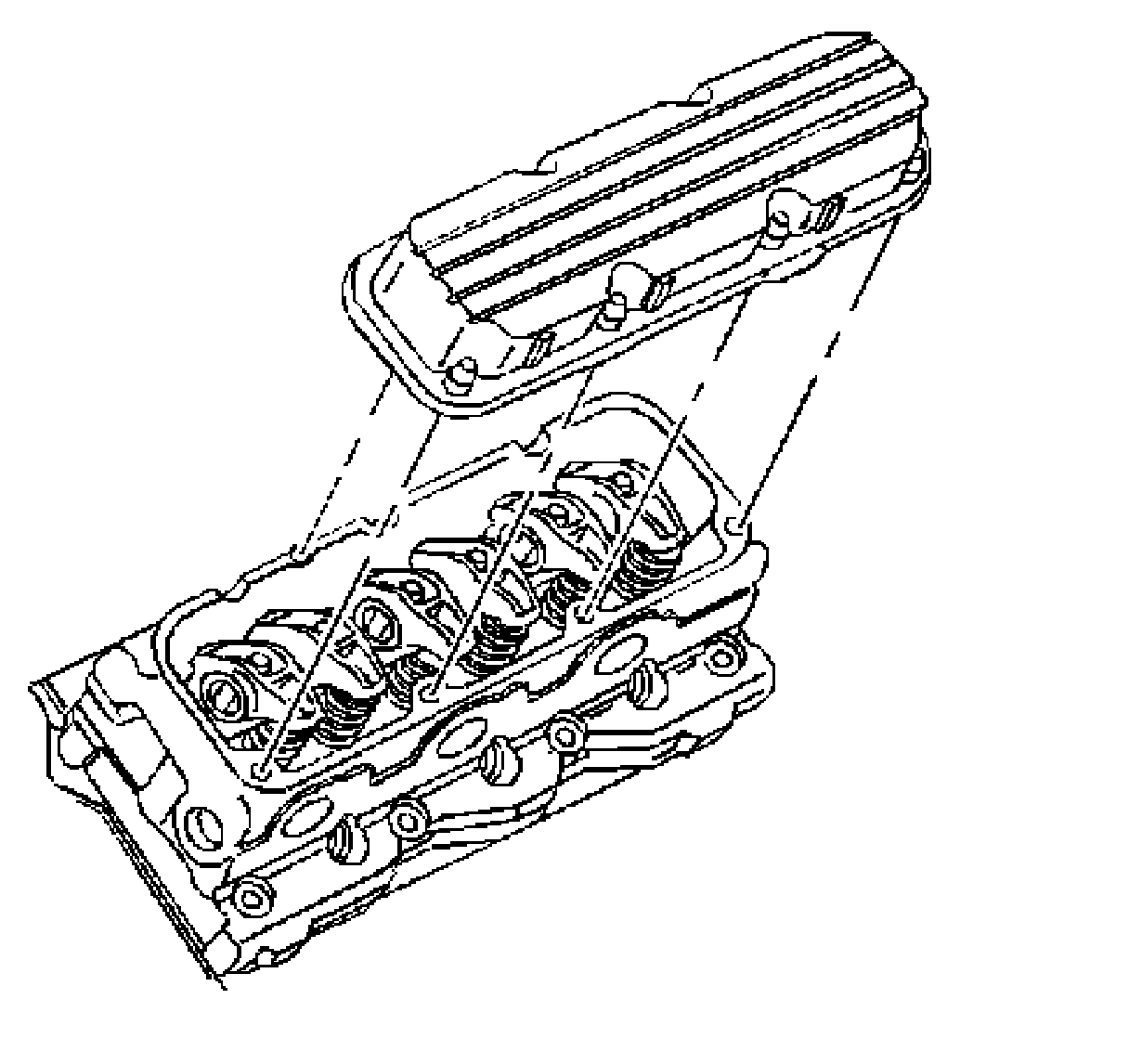

1. Install the valve rocker arm cover.
2. Apply GM P/N 12345382 (Canadian P/N 10953489) threadlocker or the equivalent to the threads.

Notice: Refer to Fastener Notice .

3. Install the valve rocker arm cover bolts.

Tighten the valve rocker arm cover bolts to 10 N.m (89 lb in).
