74. Crankshaft Front Oil Seal Installation

Crankshaft Front Oil Seal Installation

Tools Required

J 35354 Seal Installer





1. Coat the inside diameter of the crankshaft front oil seal with lubricant GM P/N 12345616 (Canadian P/N 993182) or the equivalent.

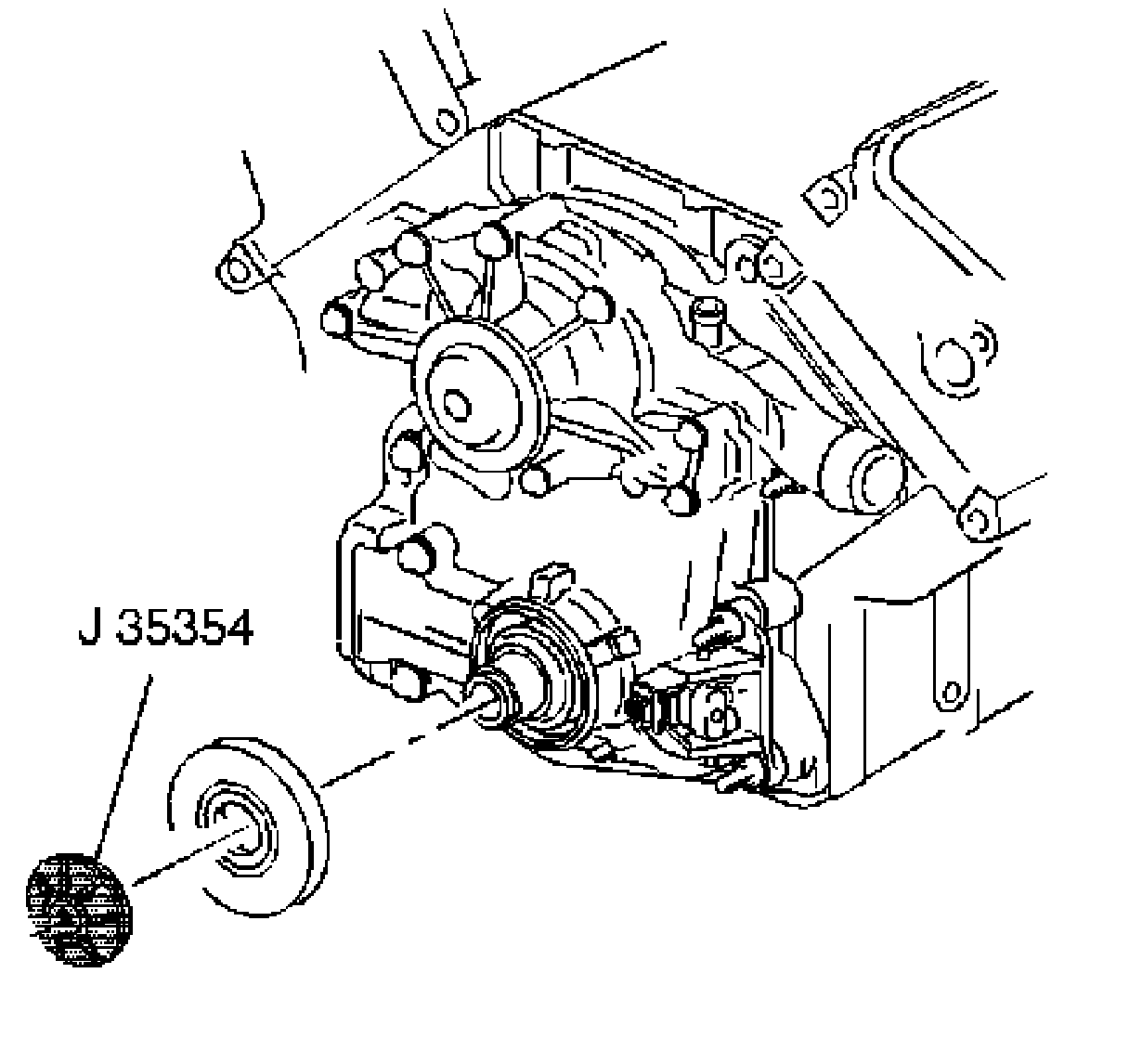

2. Use J 35354 and a soft faced hammer to install the crankshaft front oil seal.
3. Remove J 35354 .
