70. Camshaft Installation

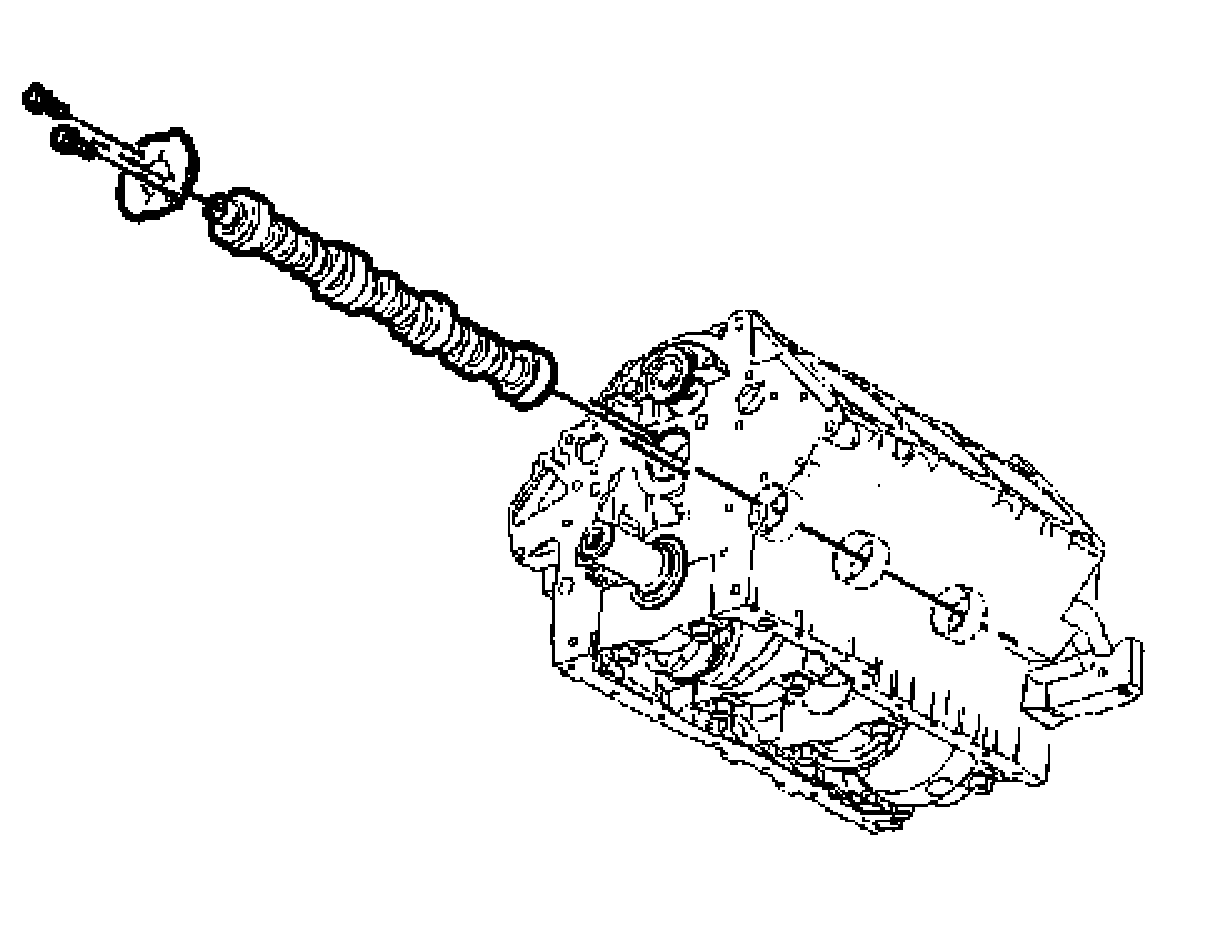

Camshaft Installation





1. Coat the camshaft with prelube GM P/N 12345501 (Canadian P/N 992704) or the equivalent.
2. Install the camshaft.
3. Install the camshaft thrust plate.

Notice: Refer to Fastener Notice .

4. Install the camshaft thrust plate bolts.

Tighten the bolts to 15 N.m (11 lb ft).
