24. Engine Front Cover Removal



Engine Front Cover Removal

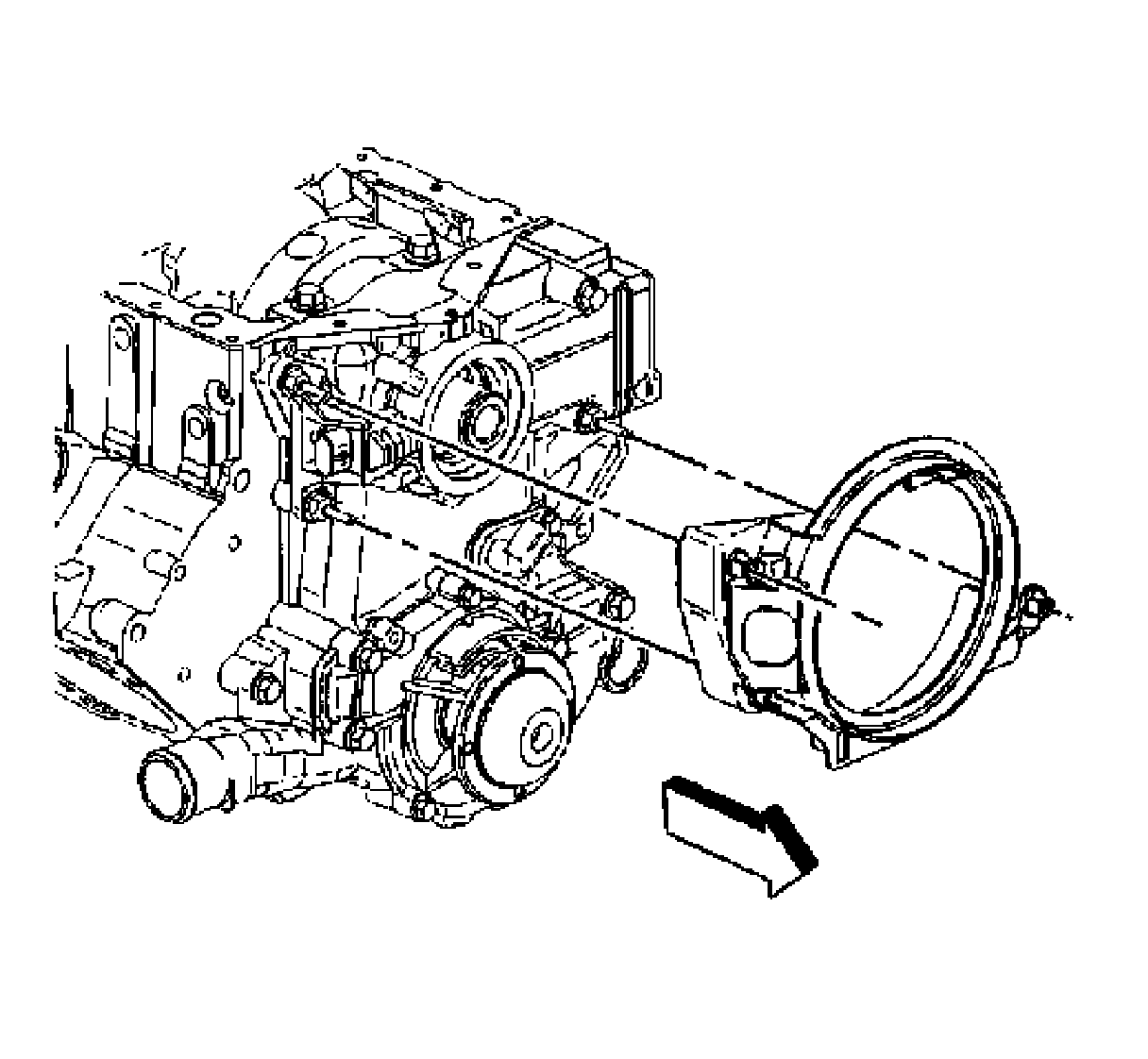

1. Remove the crankshaft position sensor shield.

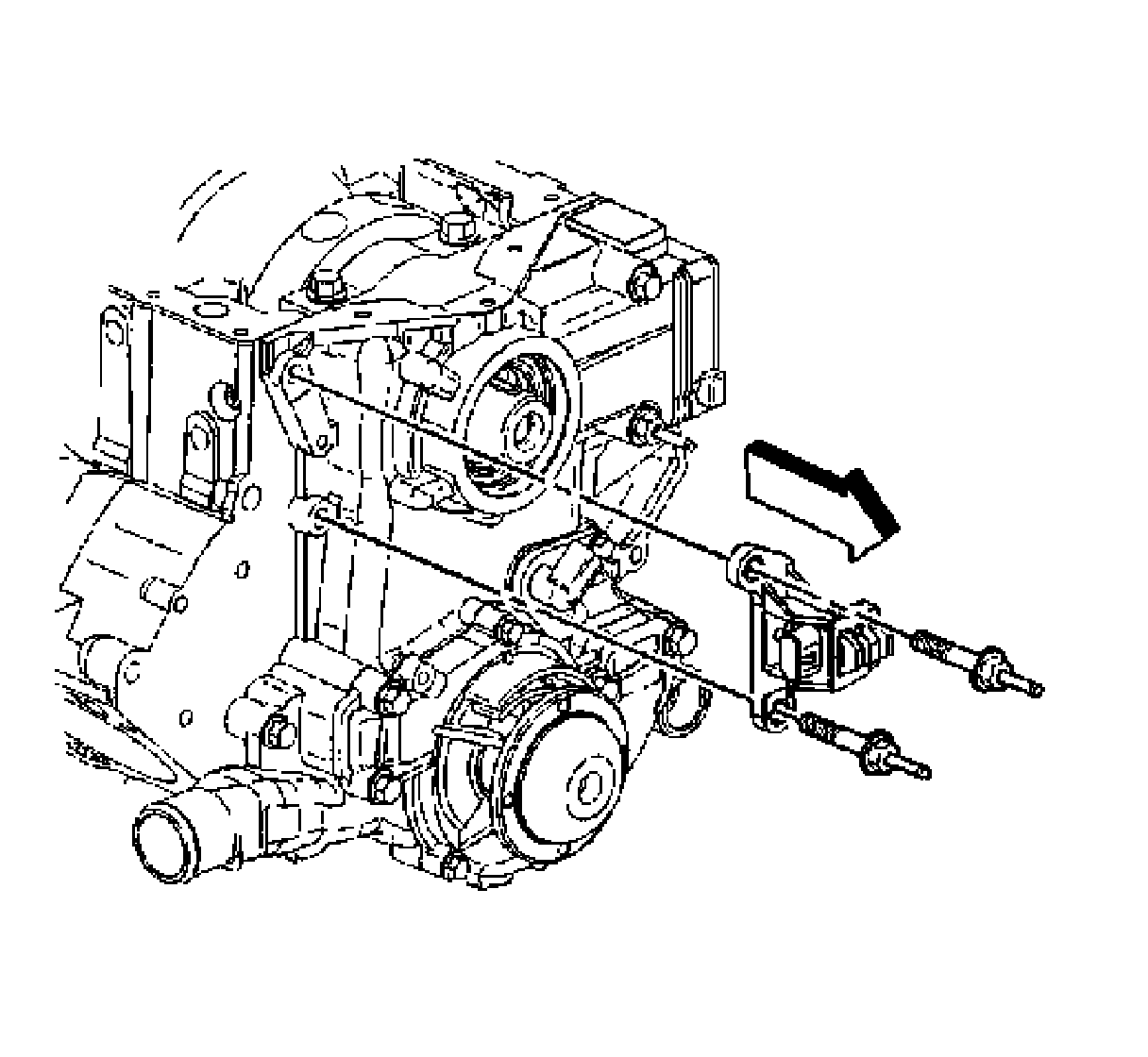

2. Remove the crankshaft position sensor studs.
3. Remove the crankshaft position sensor.

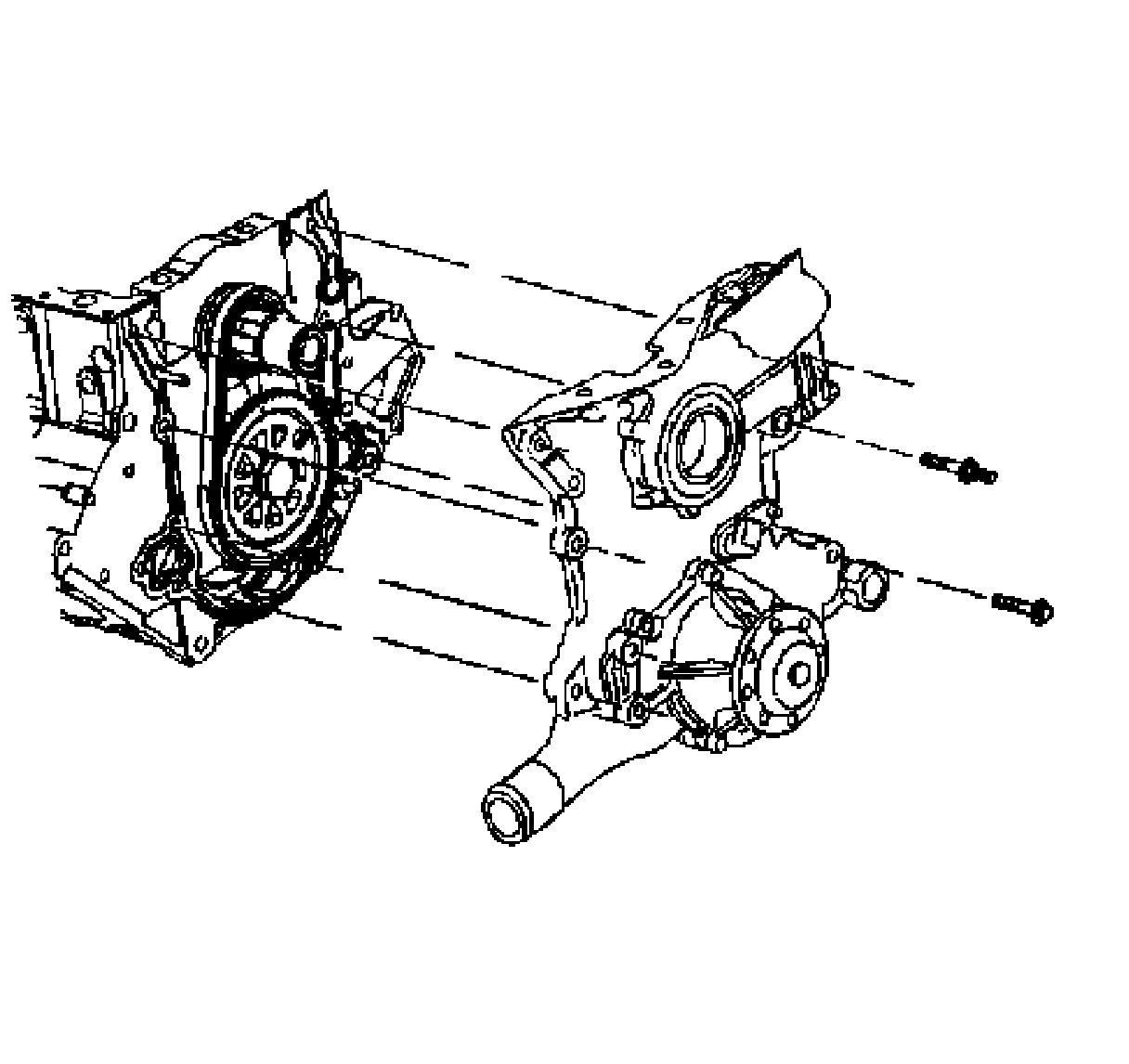

4. Remove the engine front cover bolts and stud.
5. Remove the engine front cover.

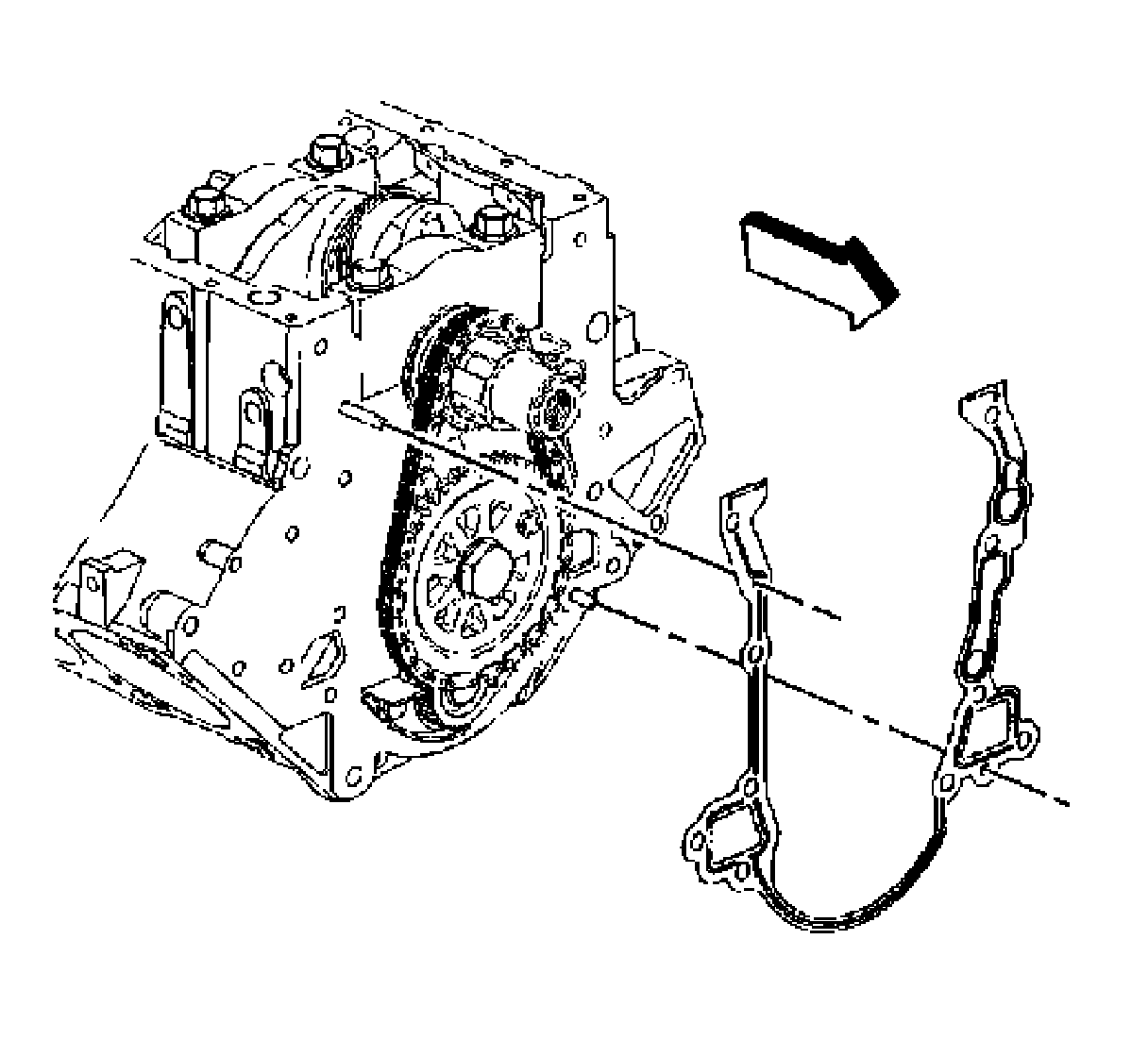

6. Remove the engine front cover gasket.
