23. Crankshaft Front Oil Seal Removal



Crankshaft Front Oil Seal Removal





Important: Do not damage the seal bore or the contact surfaces.

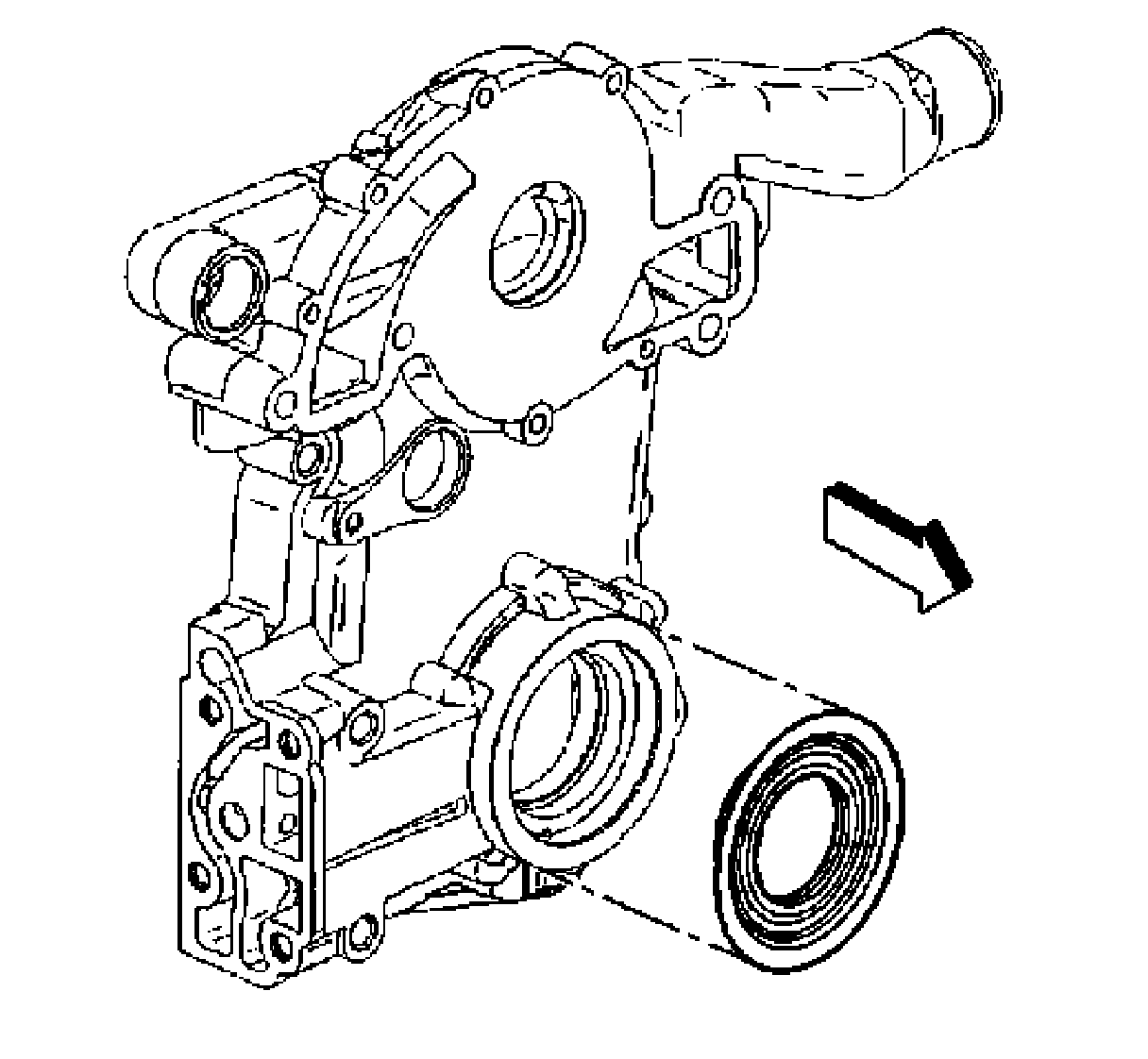

Use a screwdriver to pry out the crankshaft front oil seal.
