20. Valve Lifter Removal

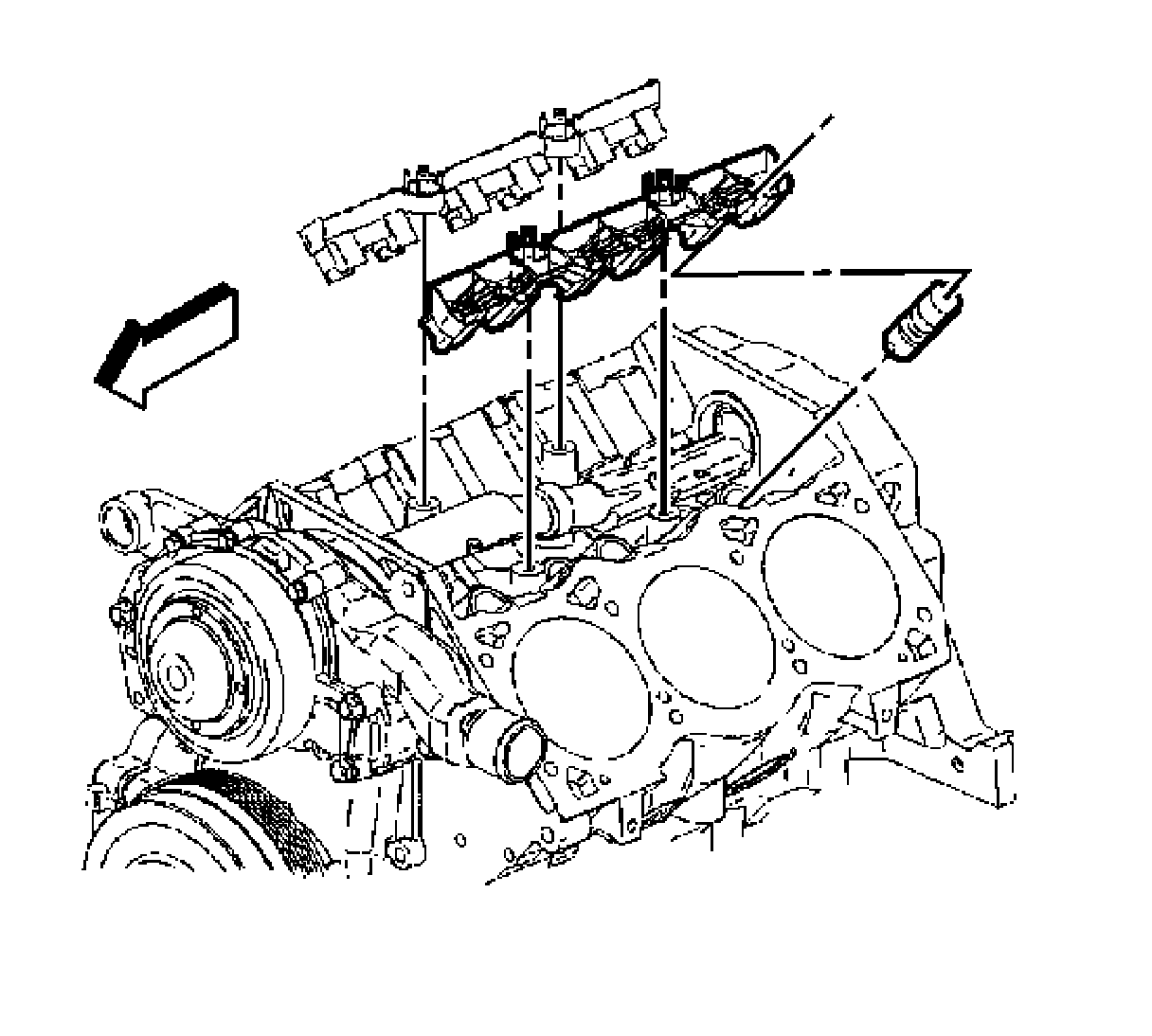

Valve Lifter Removal





1. Remove the valve lifter guide retainer bolts.
2. Remove the valve lifter guide retainers.
3. Remove the valve lifters.
