Drive Belt Idler Pulley Replacement - Upper

Drive Belt Idler Pulley Replacement - Upper

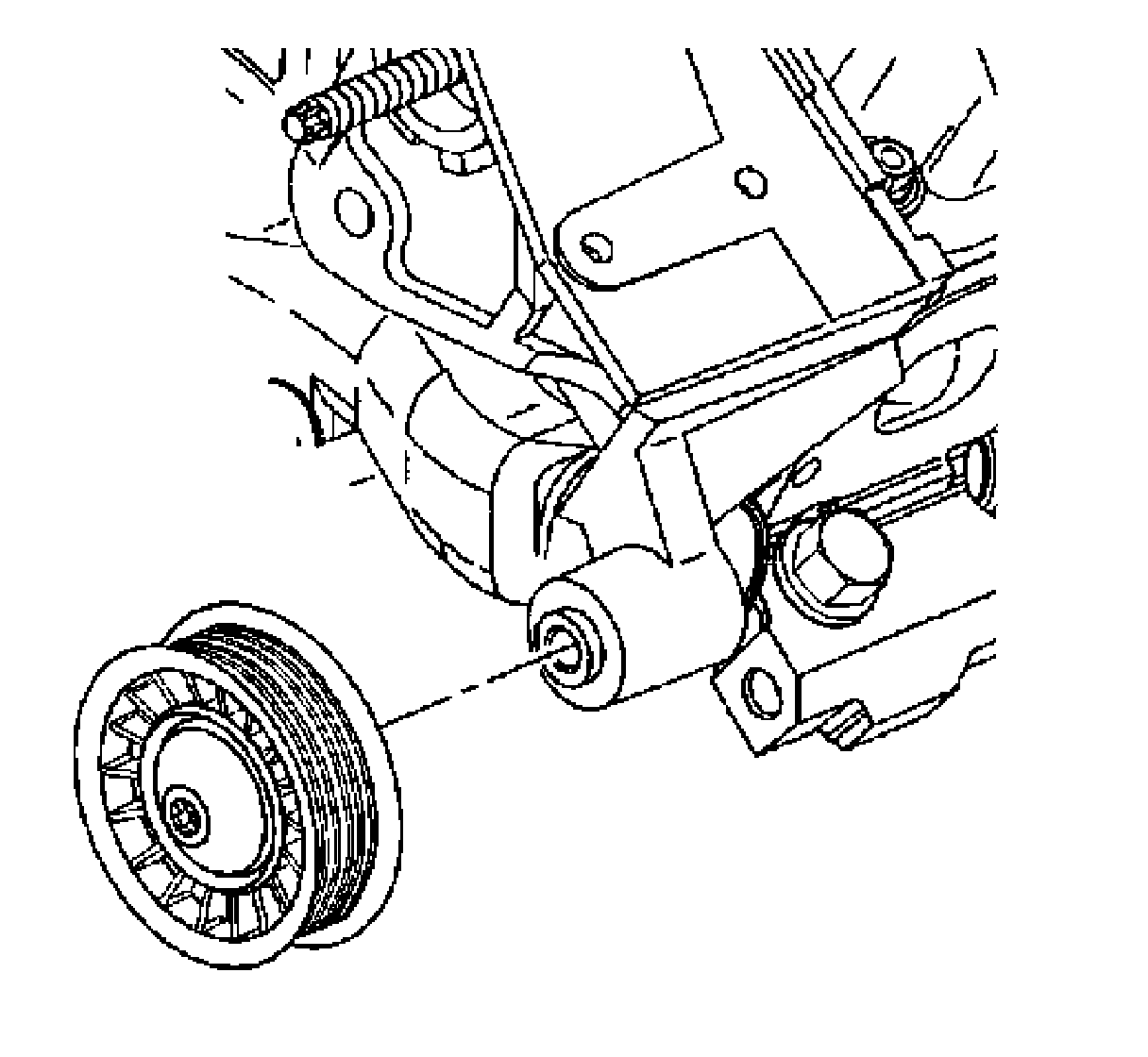

Removal Procedure





1. Remove the supercharger drive belt. Refer to Drive Belt Replacement (Service and Repair) .




2. Remove the idler pulley bolt.
3. Remove the drive belt idler pulley.



Installation Procedure





1. Install the drive belt idler pulley.

Notice: Refer to Fastener Notice .

2. Install the idler pulley bolt.

Tighten the bolt to 50 N.m (37 lb ft).





3. Install the supercharger drive belt. Refer to Drive Belt Replacement (Service and Repair) .
