Engine Mount Strut Replacement - Right

Engine Mount Strut Replacement - Right Side

Removal Procedure

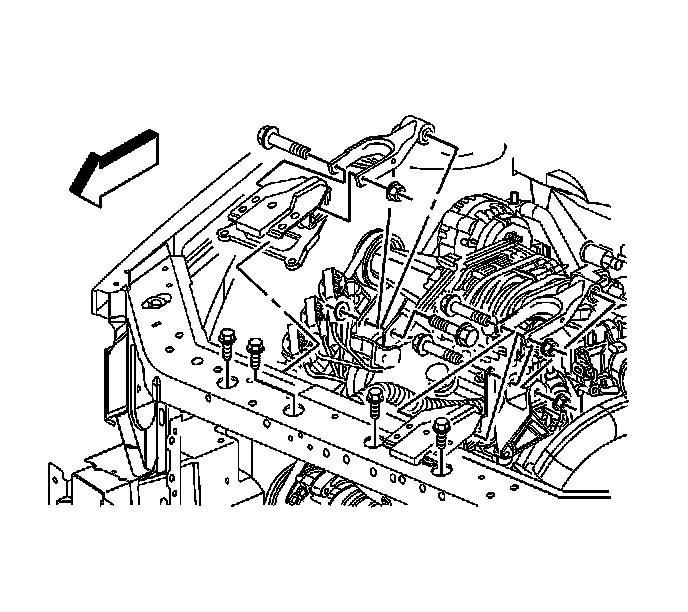

1. If equipped with a L26 - 3.8L engine, remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the engine.

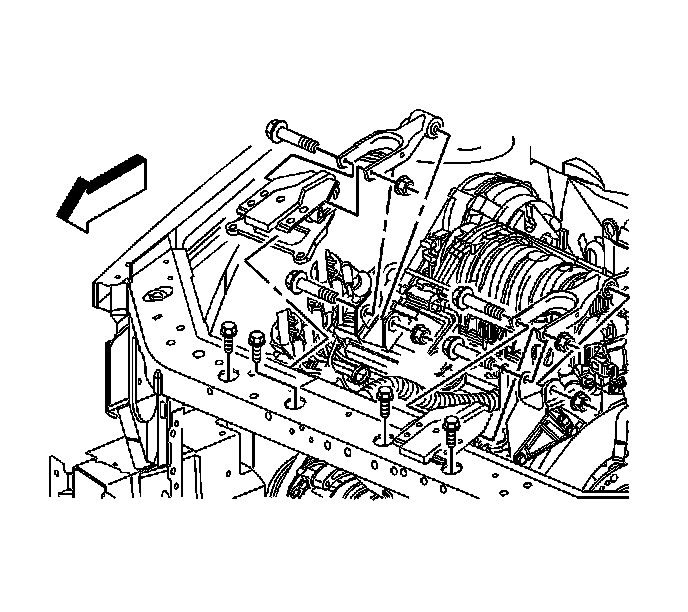

2. If equipped with a L32 engine, remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the engine.




3. Remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the upper radiator support.
4. Remove the engine mount strut.
5. Inspect the rubber in the engine mount strut for the following conditions:

* Hardness
* Splitting
* Cracking




Installation Procedure





1. Install the engine mount strut.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the upper radiator support.

Tighten the engine mount strut bolt to 48 N.m (35 lb ft).





3. With a L26 - 3.8L Engine, install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the engine.

Tighten the engine mount strut nut to 48 N.m (35 lb ft).





4. With a L32 Engine, install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the engine.

Tighten the engine mount strut nut to 48 N.m (35 lb ft).
