System Diagram

Starting and Charging Schematics

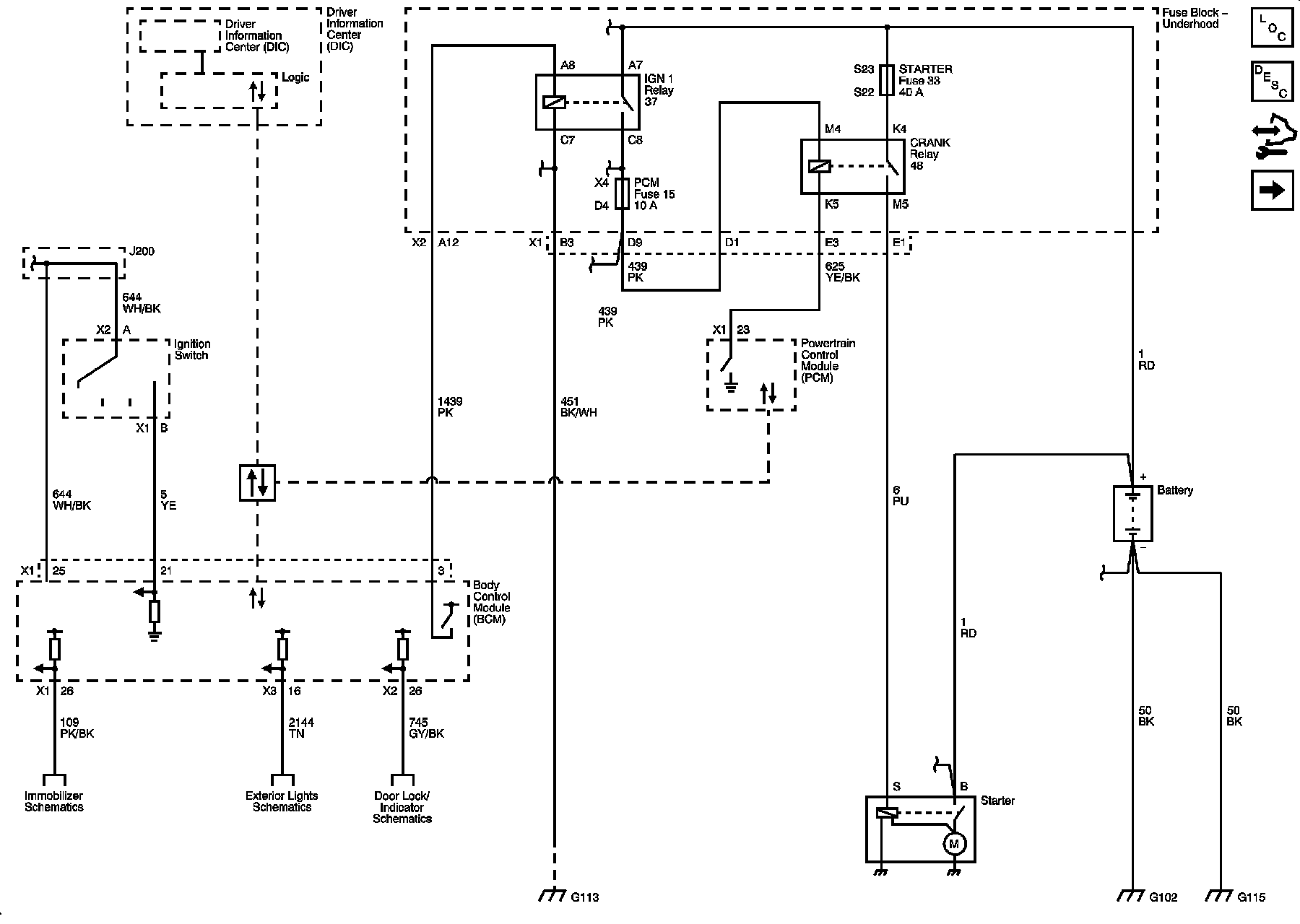

Starting - L26 - 3.8L

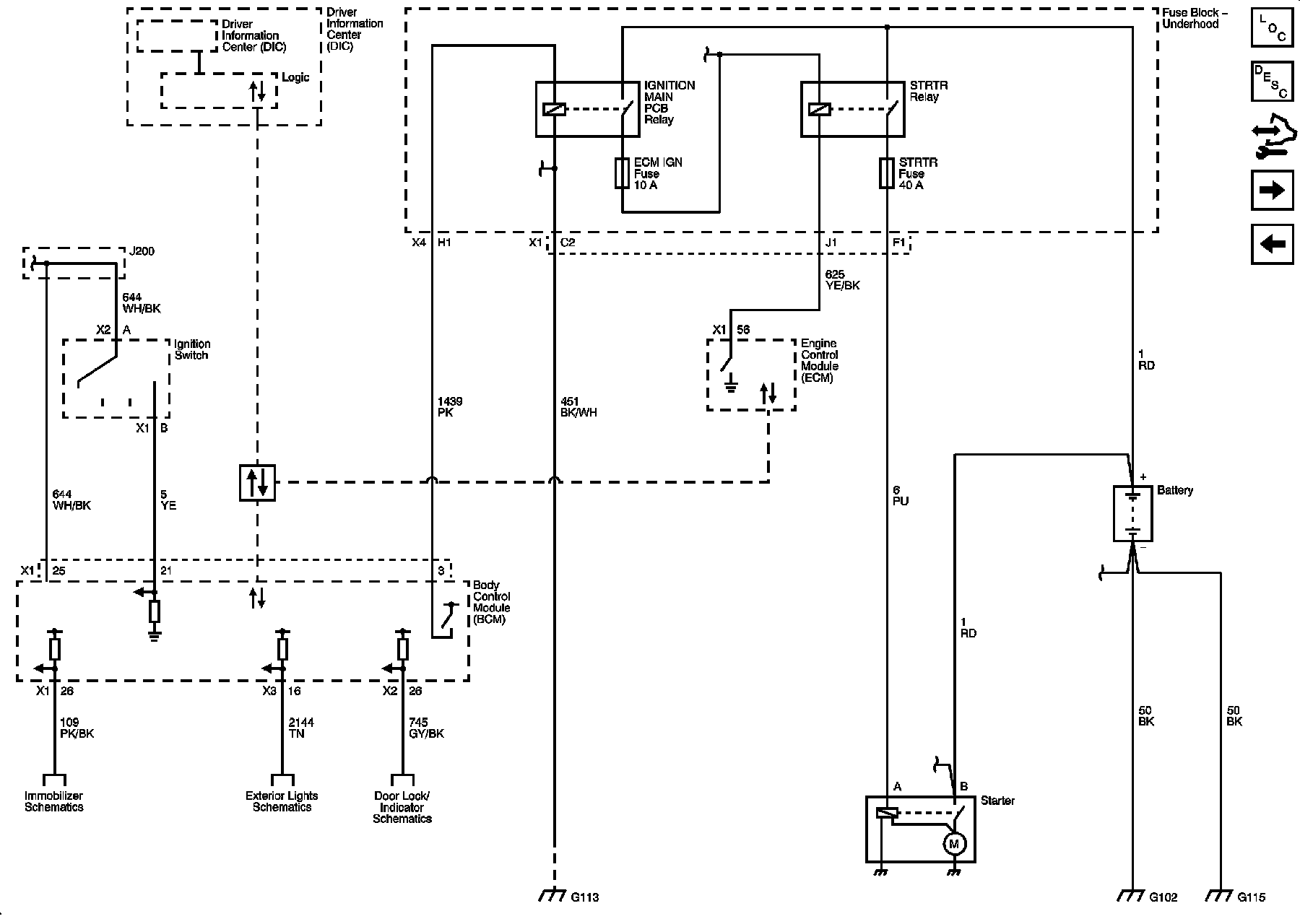

Starting - LS4 - 5.3L

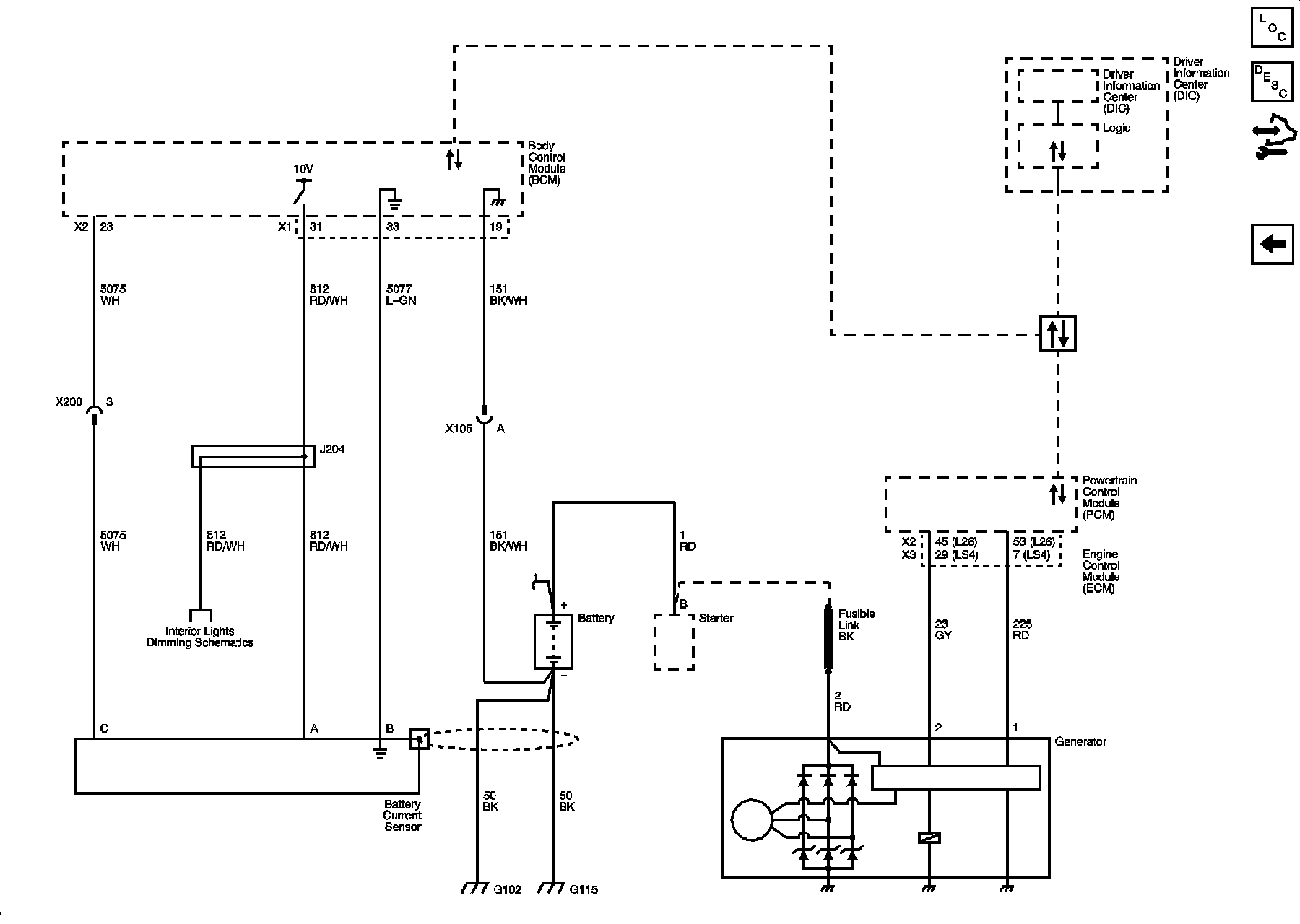

Generator
