Seat Temperature Element



Heated/Cooled Seat Schematics

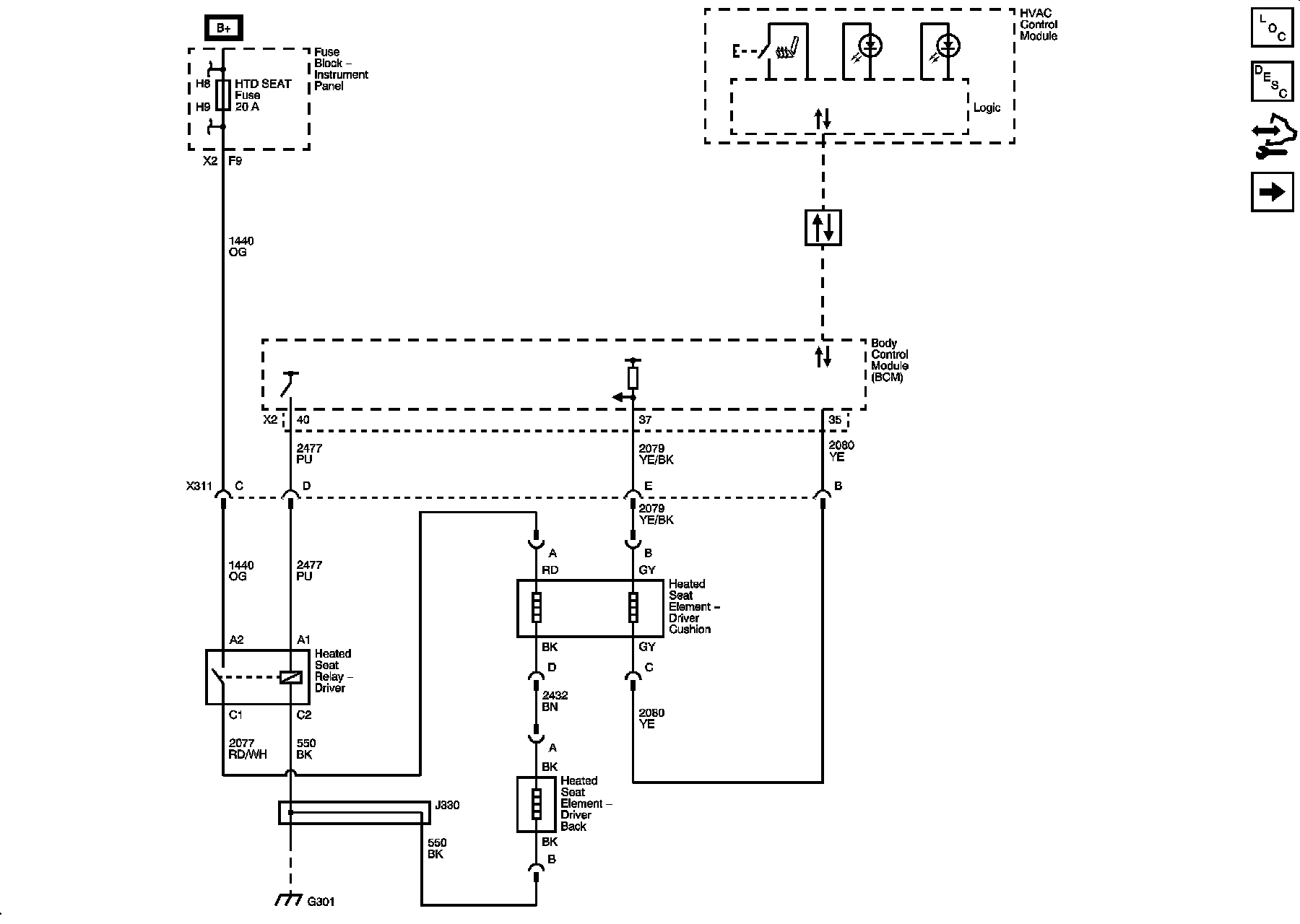

Heat Controls - Driver

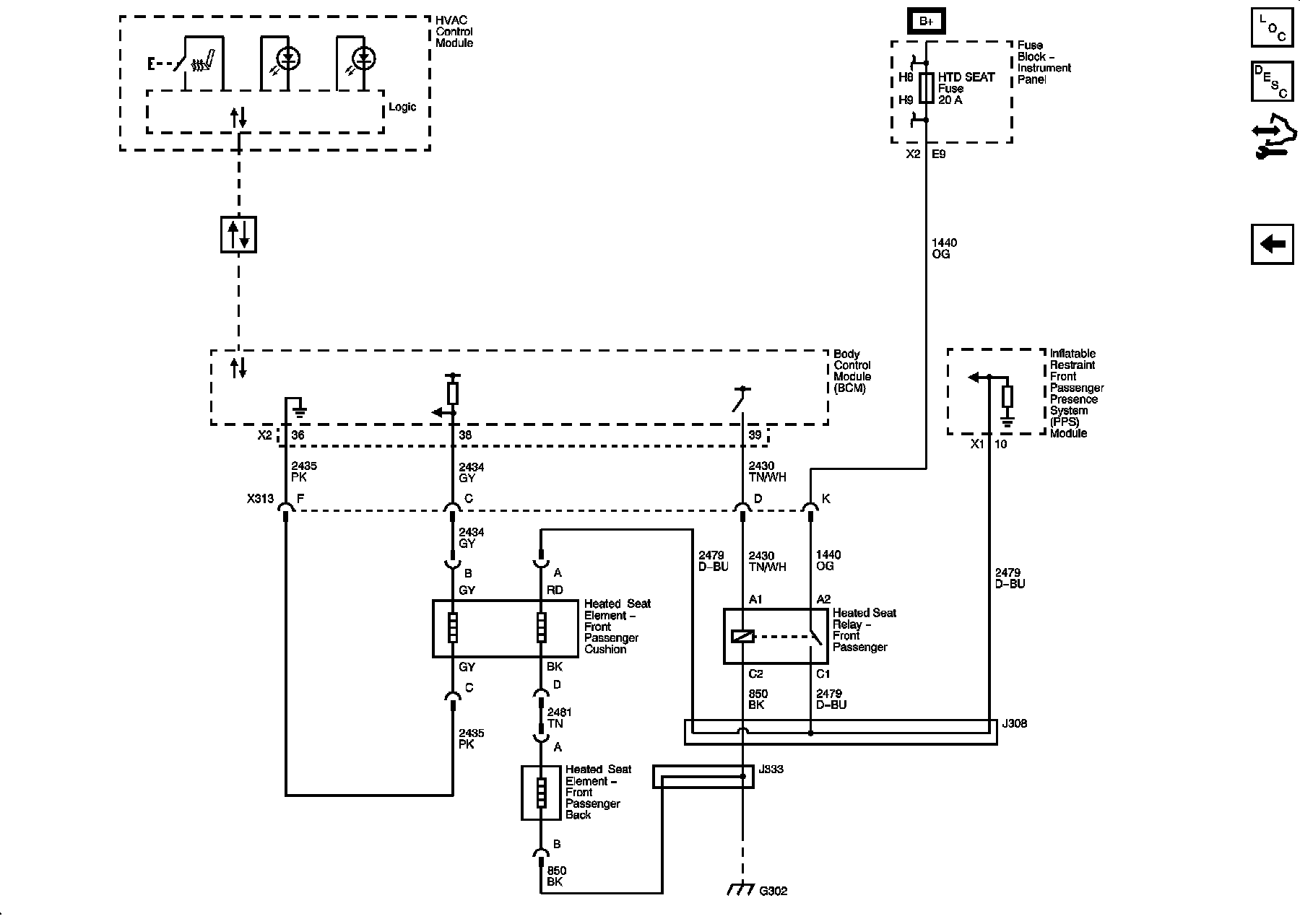

Heat Controls - Passenger
