Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signal Lamp

Turn Signal Lamp

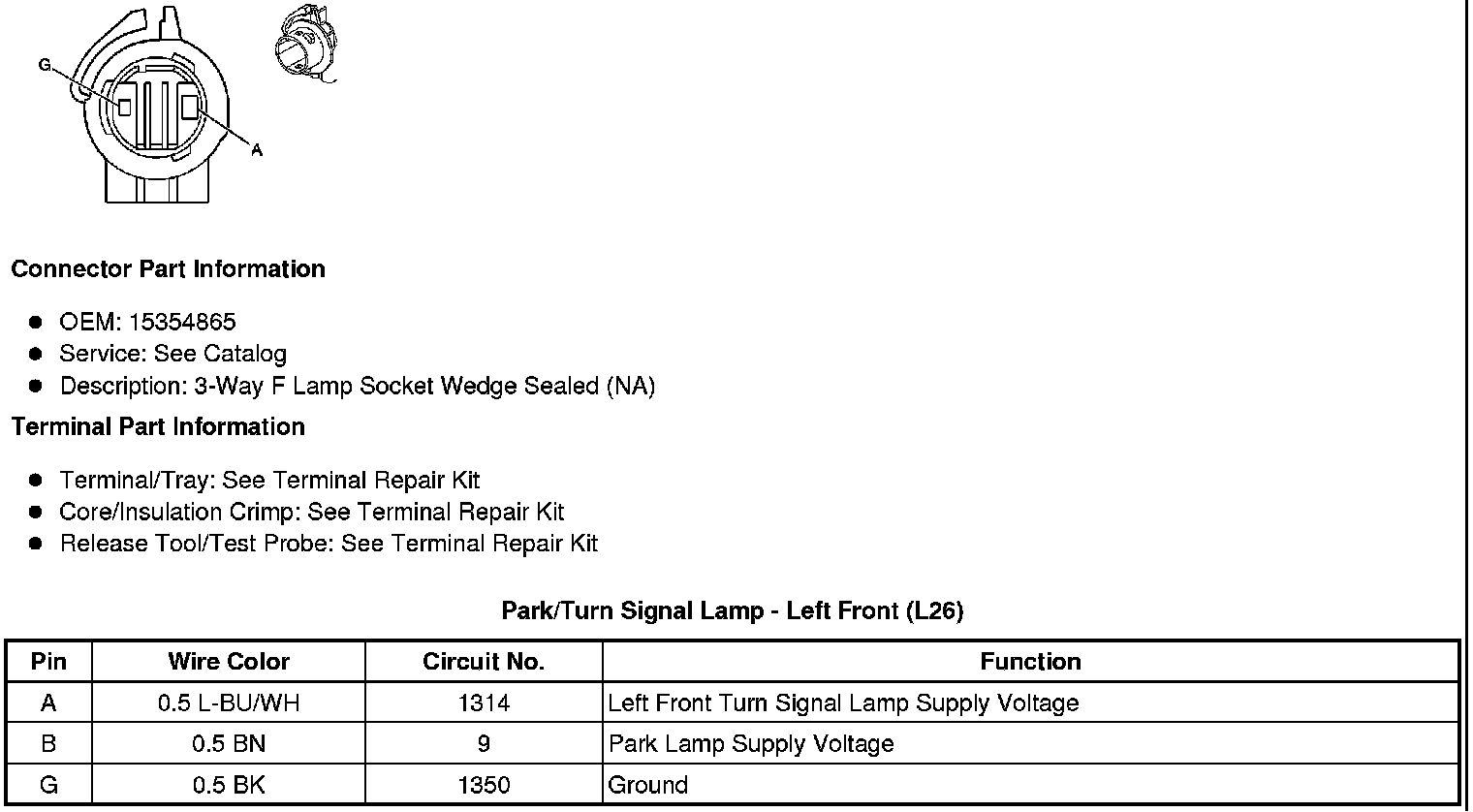

Park/Turn Signal Lamp - Left Front (L26 - 3.8L)

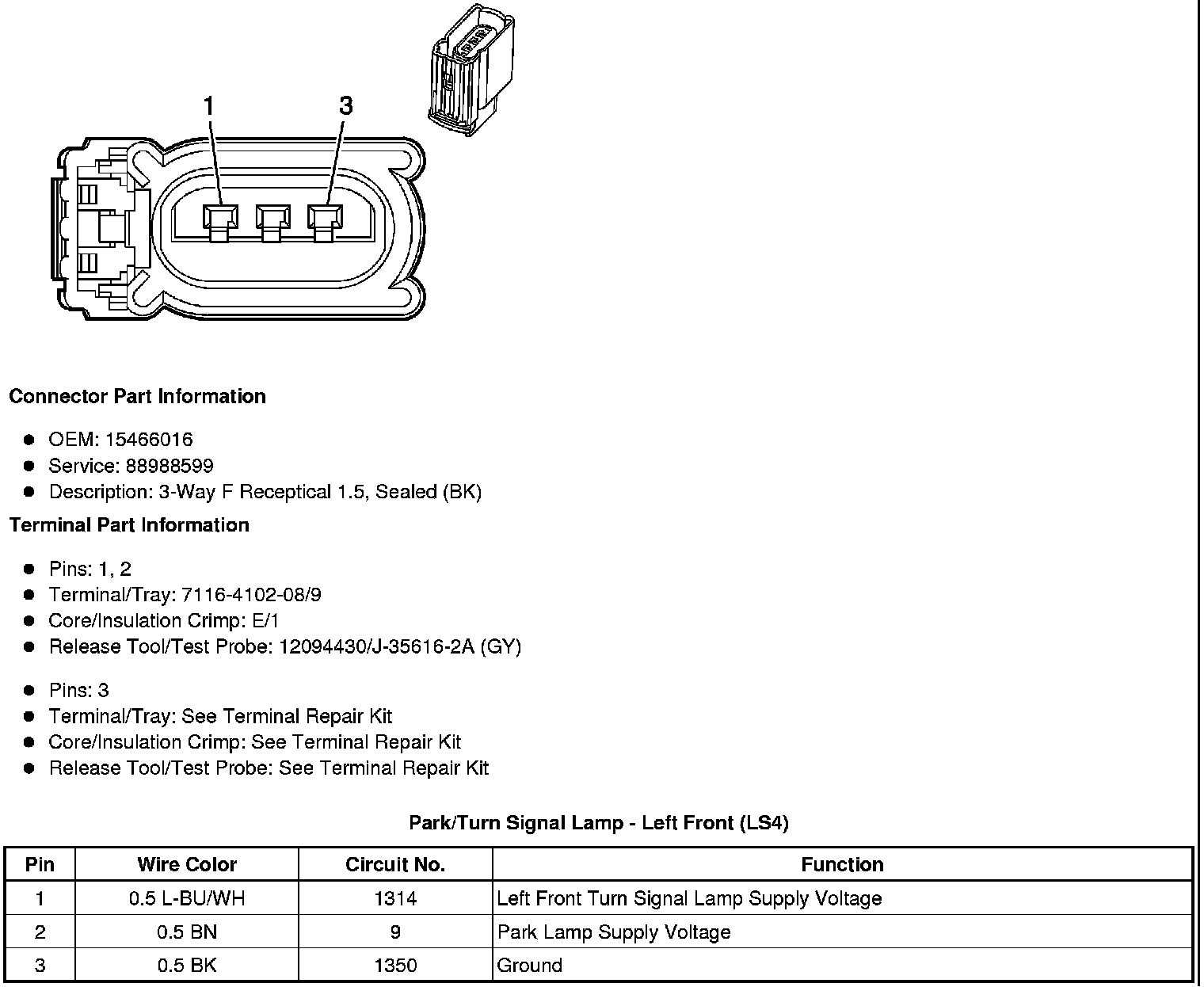

Park/Turn Signal Lamp - Left Front (LS4 - 5.3L)

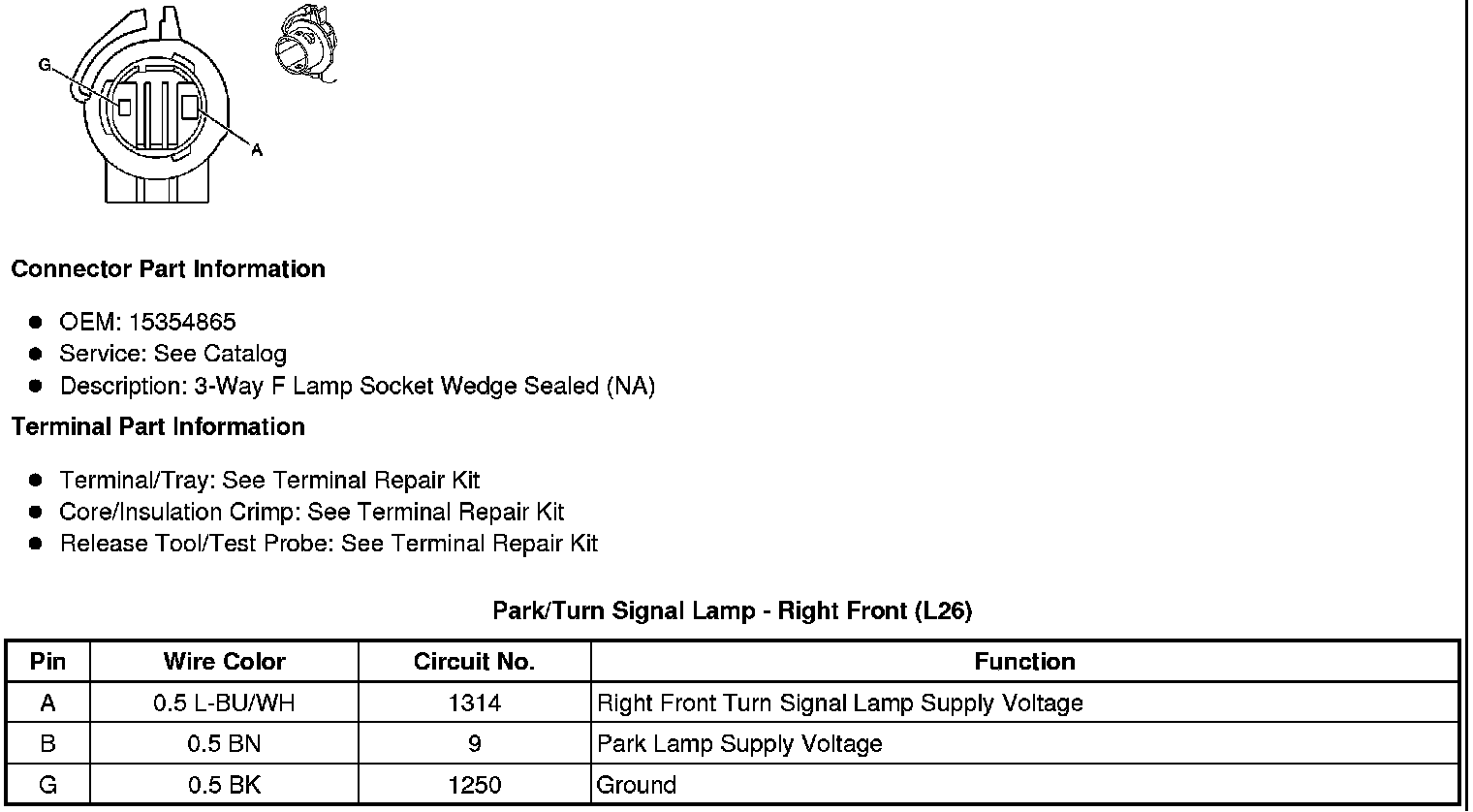

Park/Turn Signal Lamp - Right Front (L26 - 3.8L)

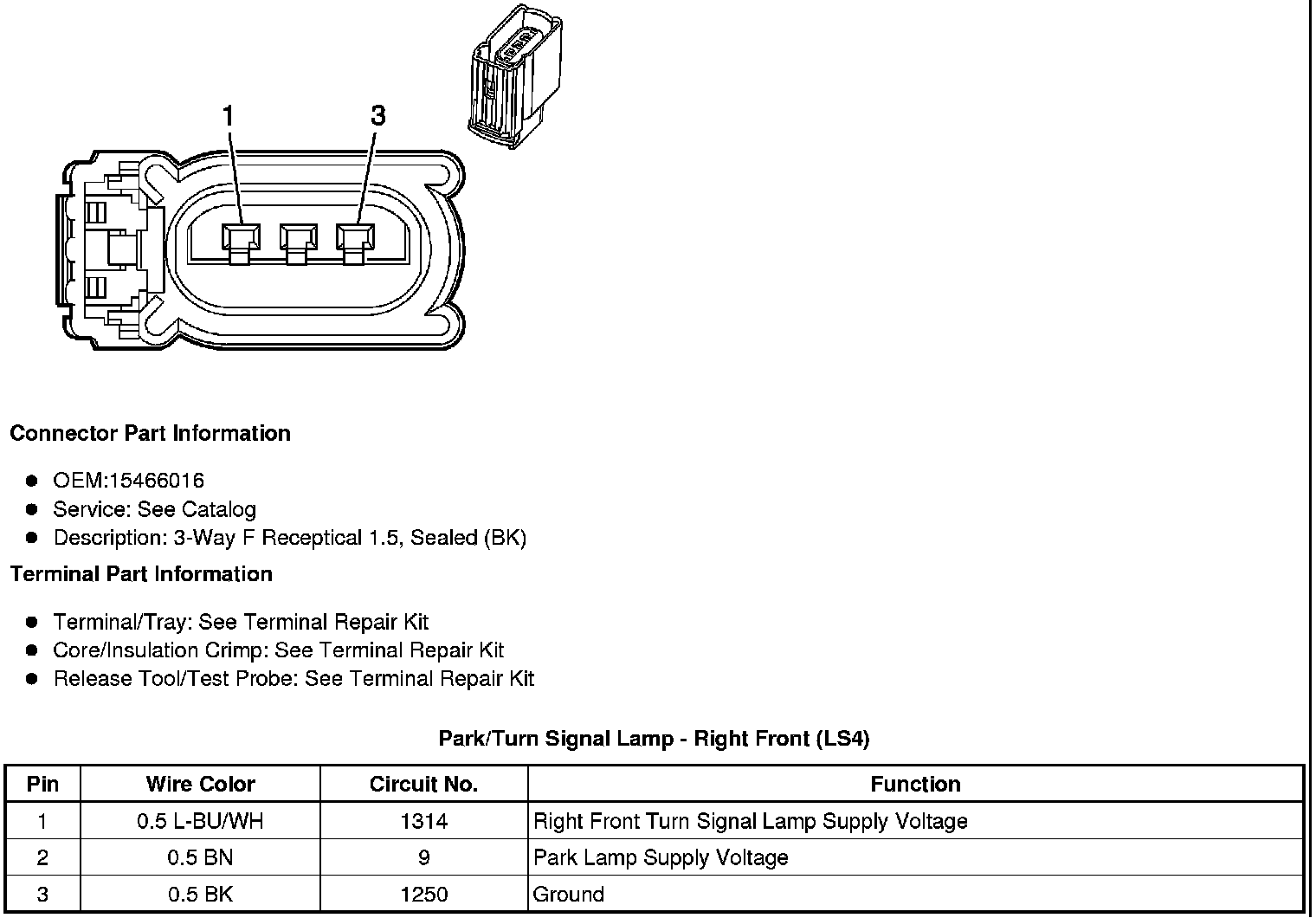

Park/Turn Signal Lamp - Right Front (LS4 - 5.3L)
