Tail Lamp

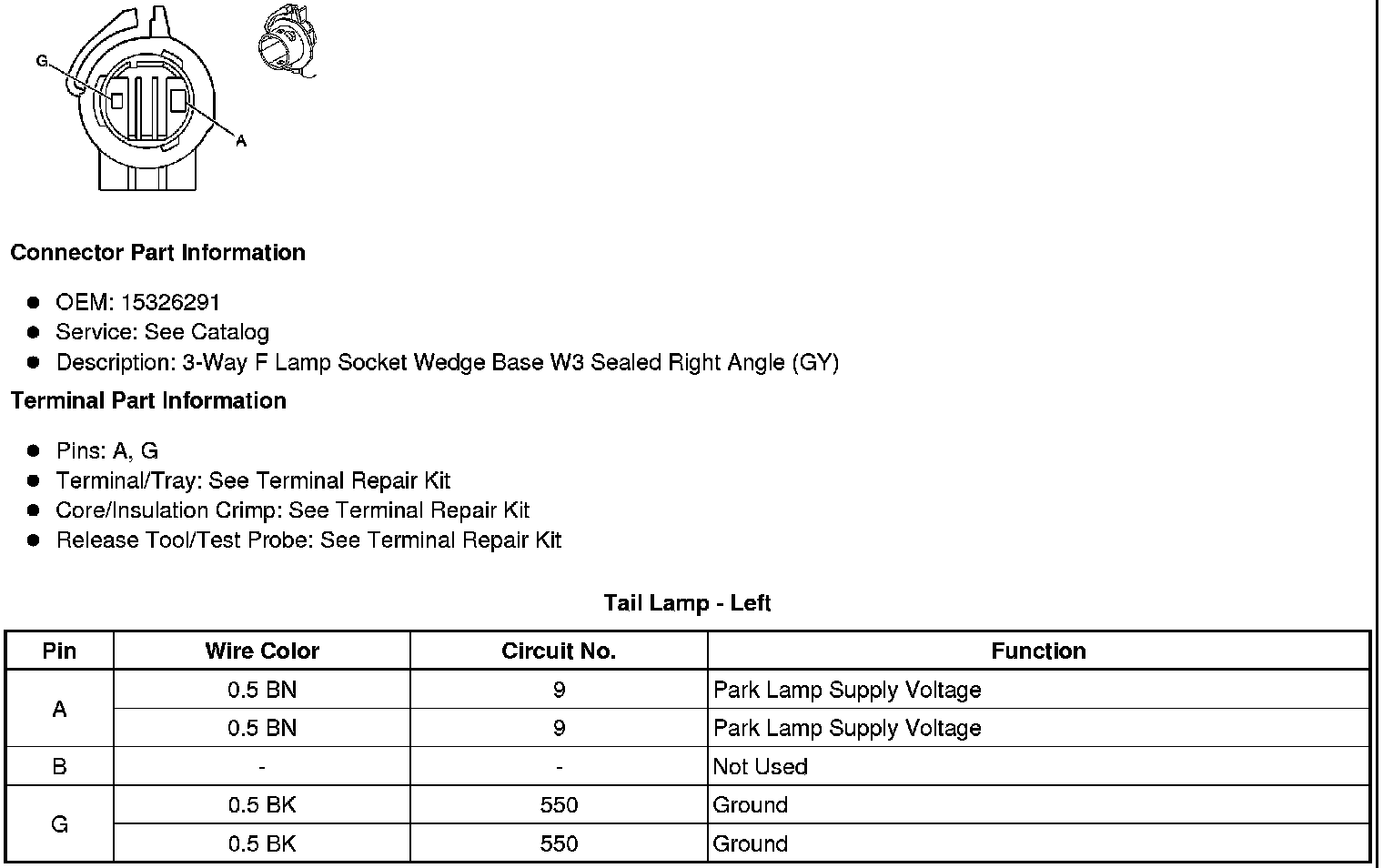

Tail Lamp - Left

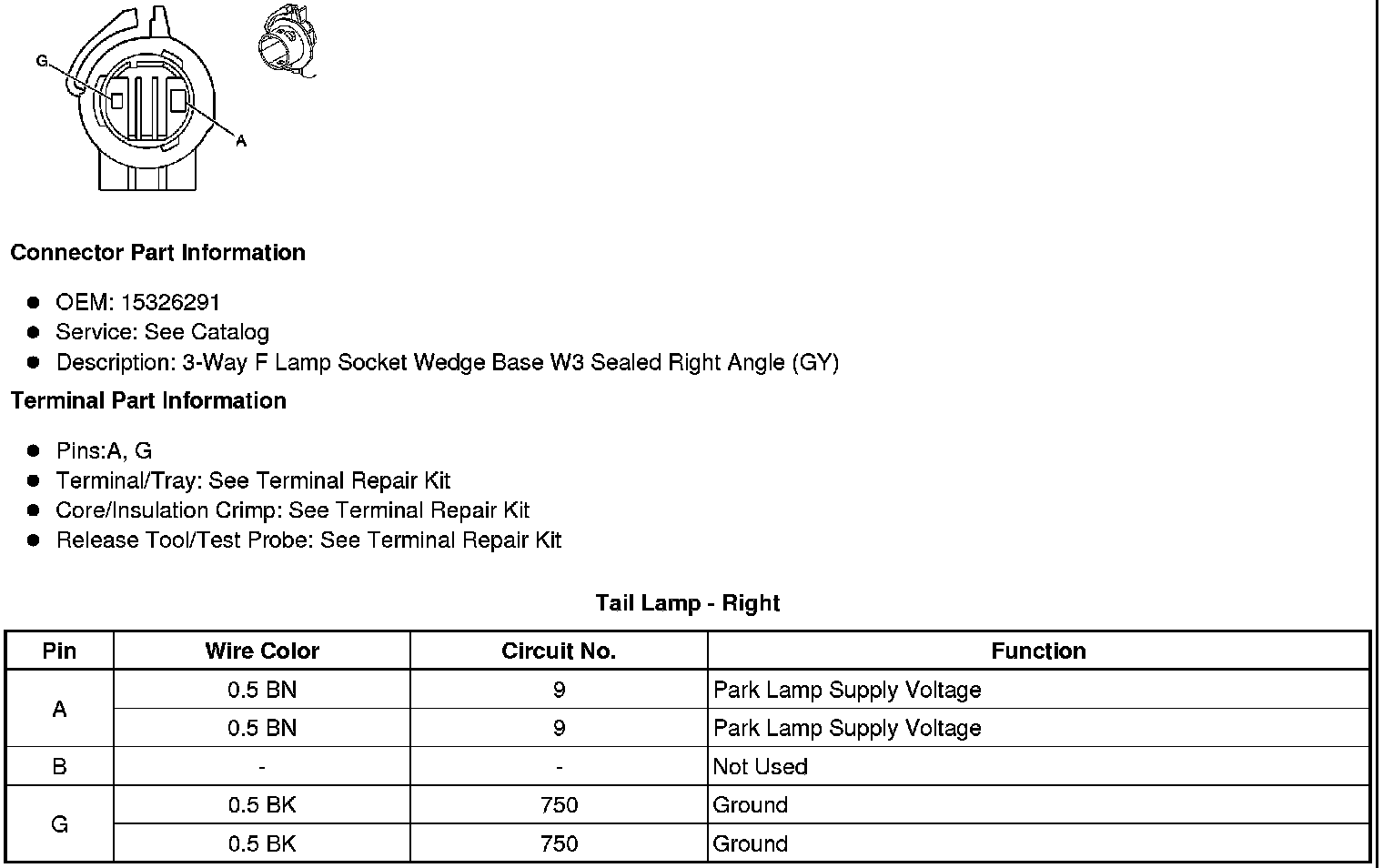

Tail Lamp - Right

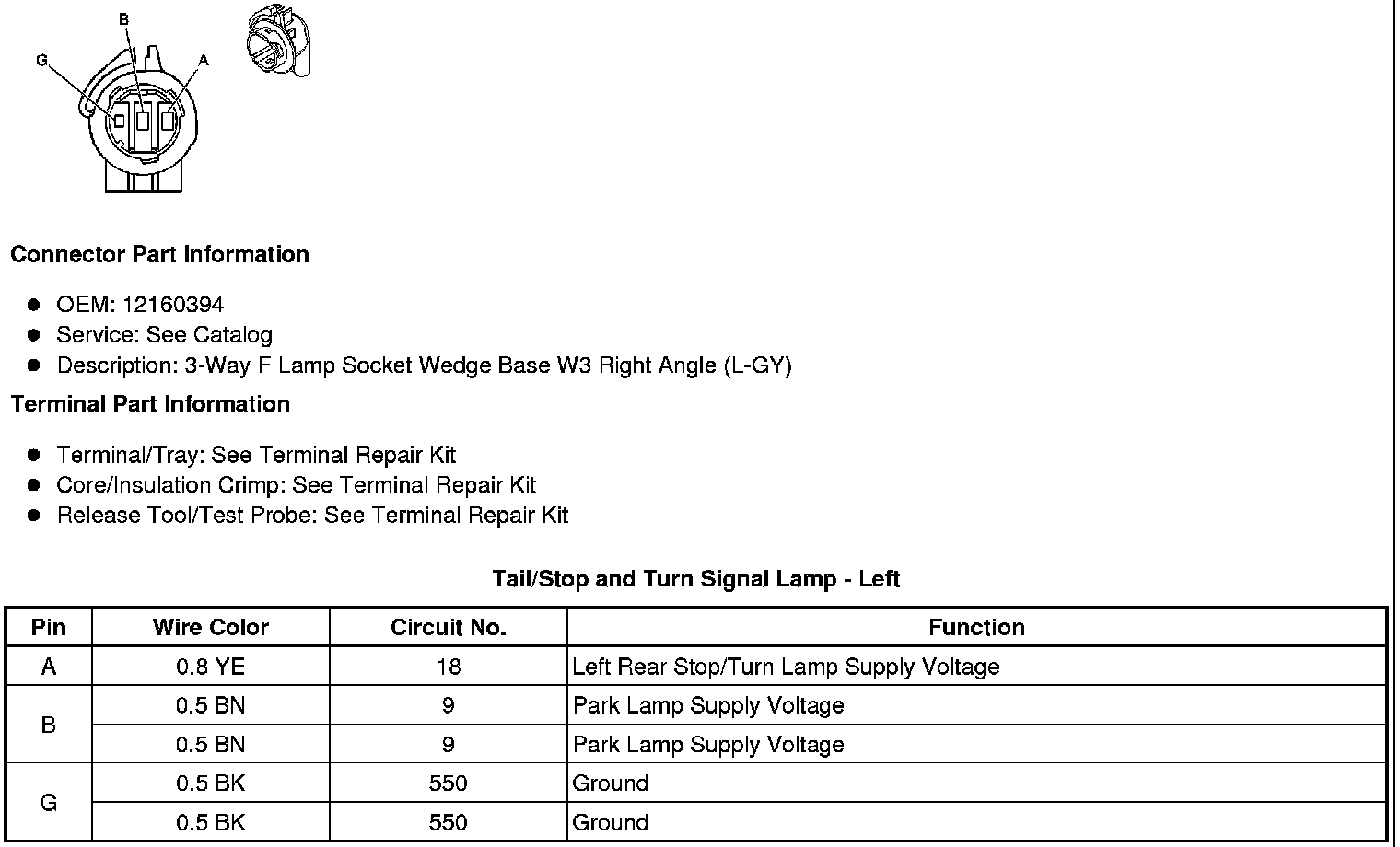

Tail/Stop and Turn Signal Lamp - Left

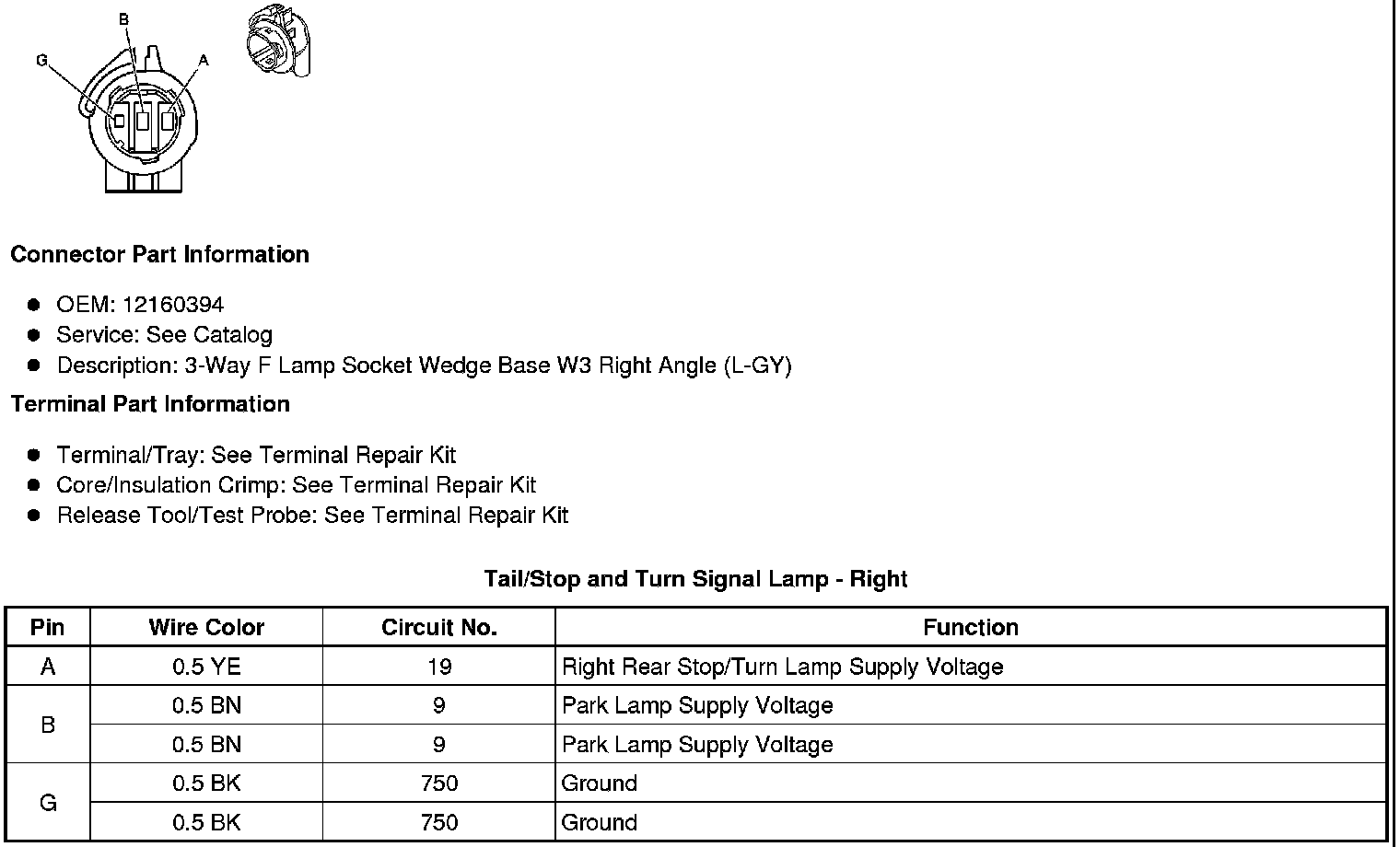

Tail/Stop and Turn Signal Lamp - Right
