Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column

Steering Column

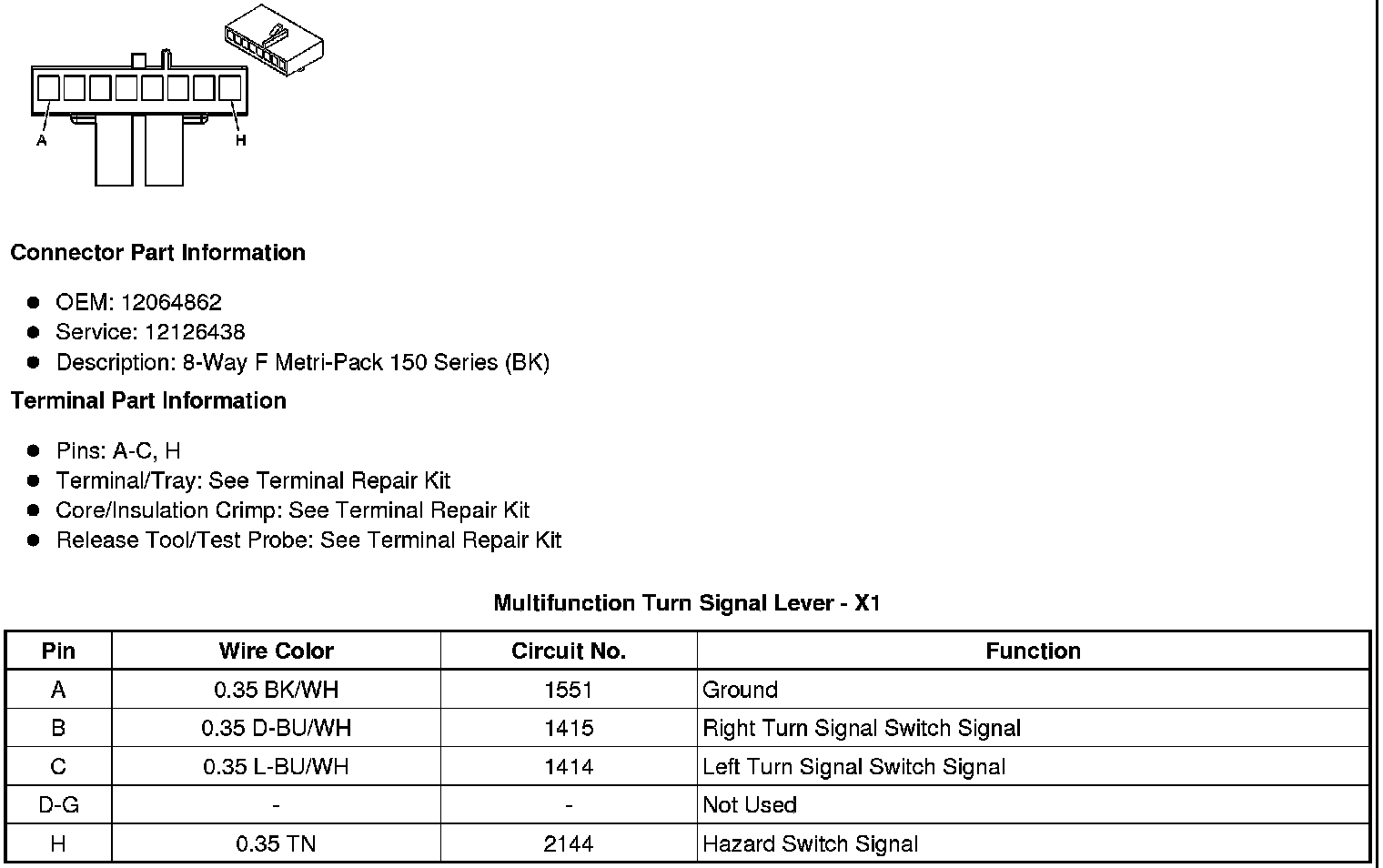

Multifunction Turn Signal Lever - X1

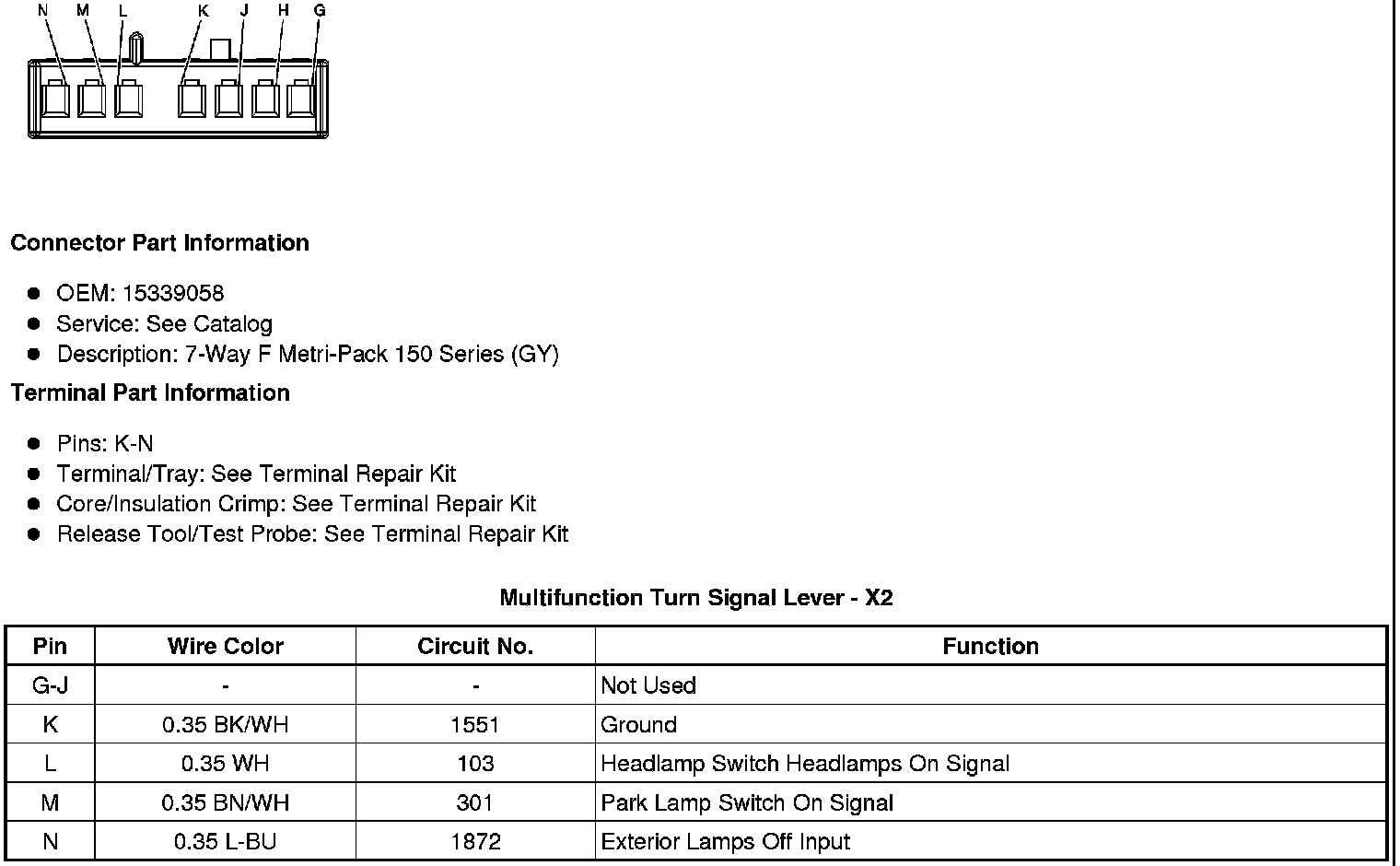

Multifunction Turn Signal Lever - X2

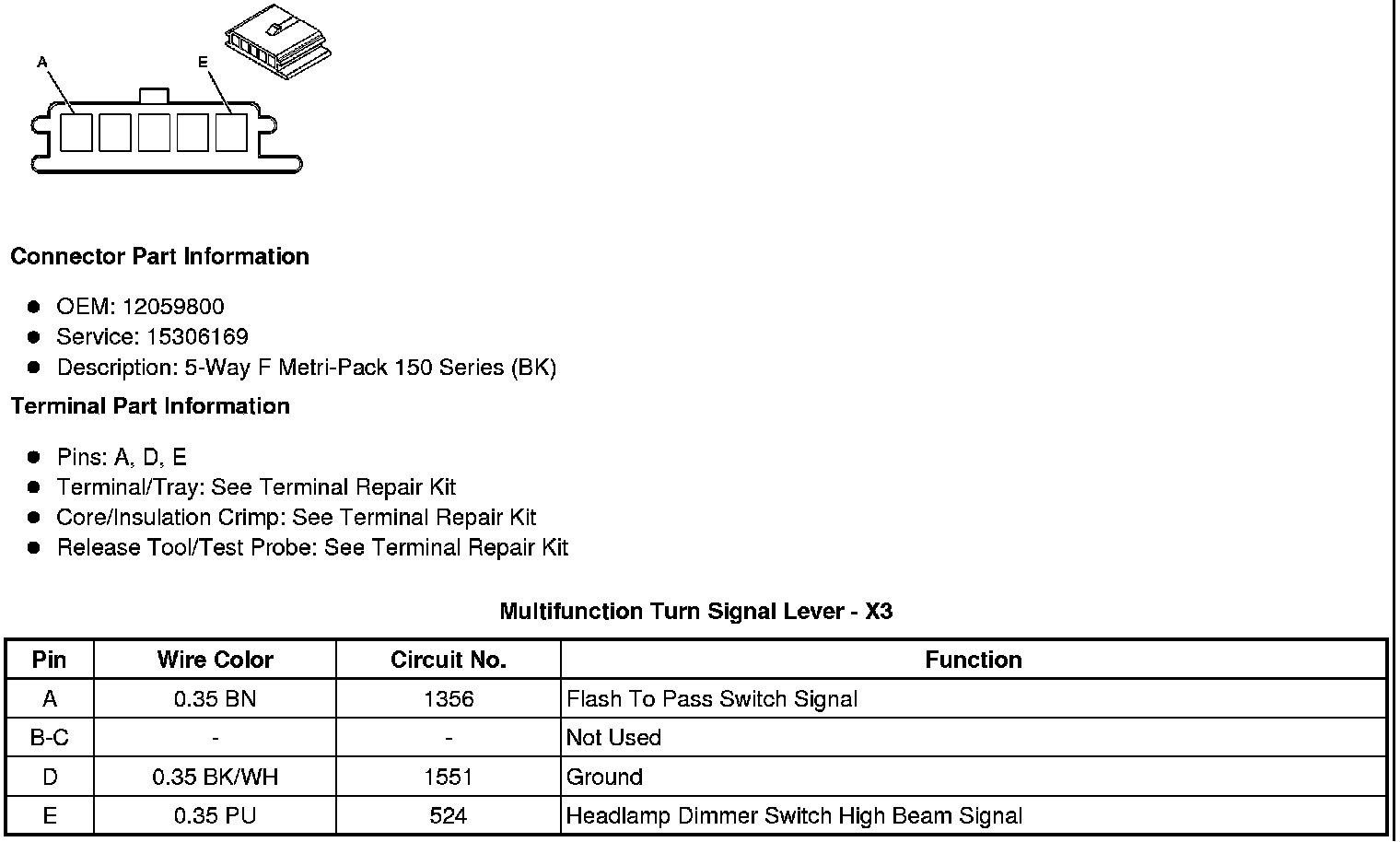

Multifunction Turn Signal Lever - X3

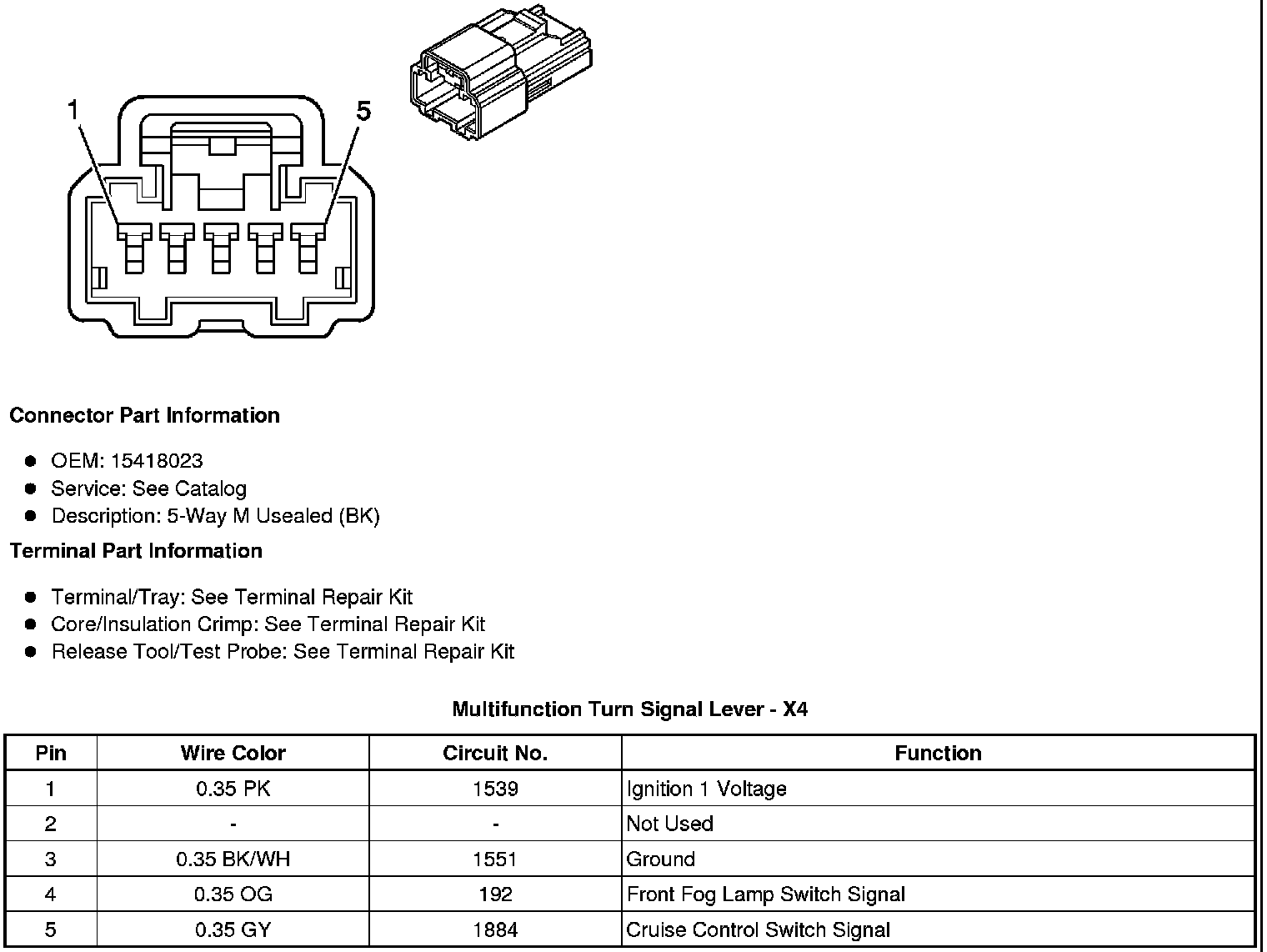

Multifunction Turn Signal Lever - X4
