Speaker

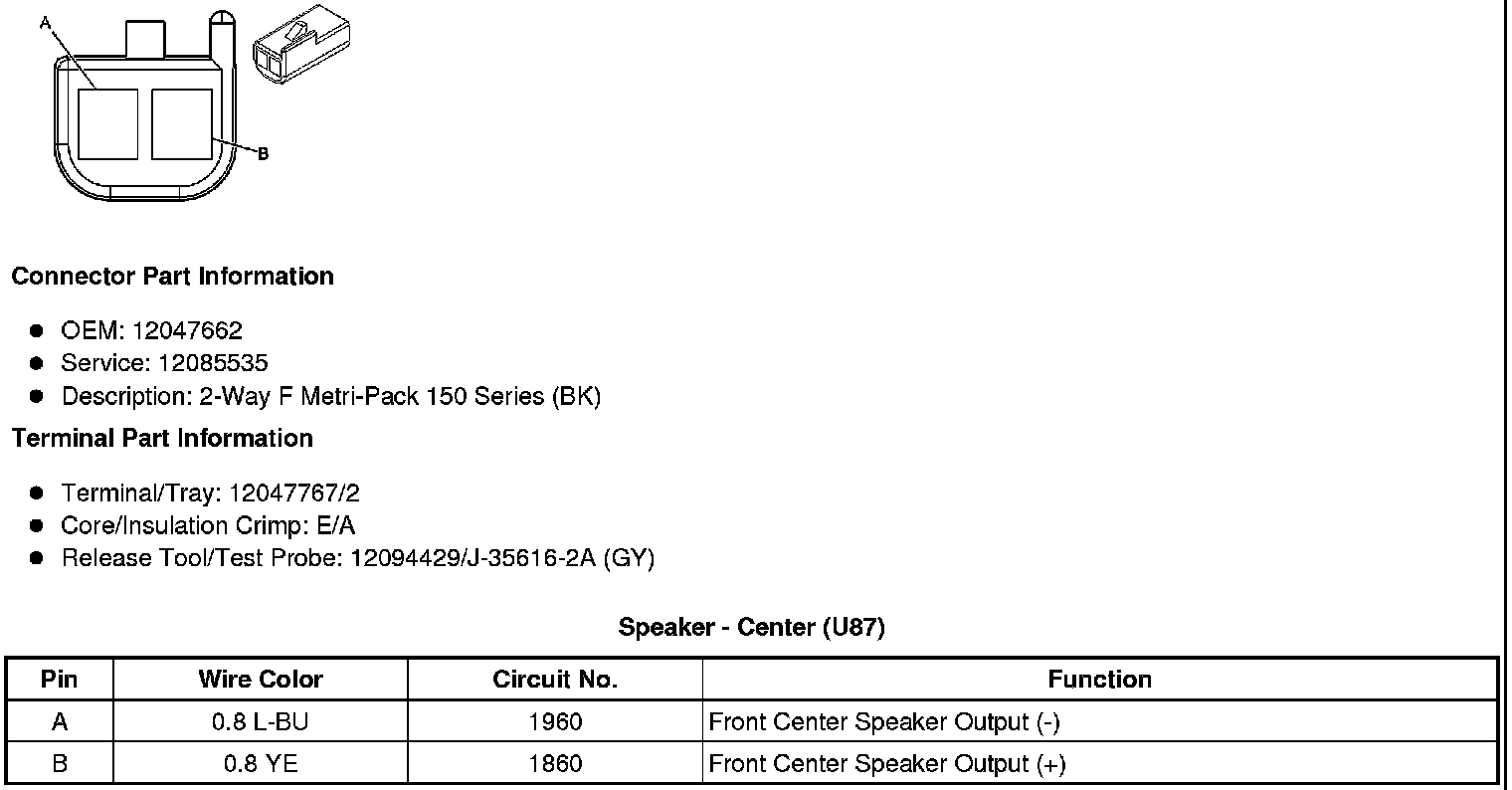

Speaker - Center (U87)

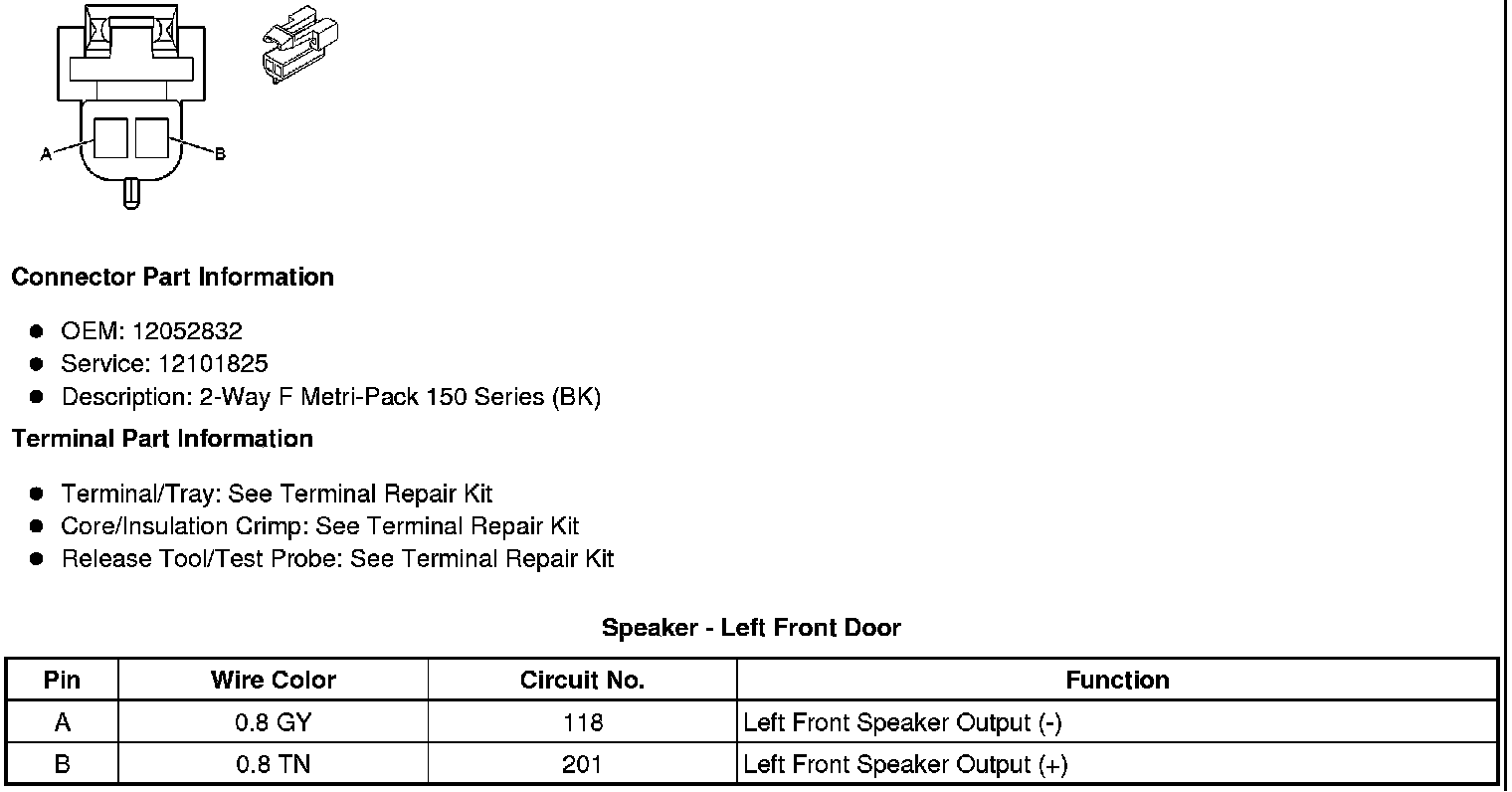

Speaker - Left Front Door

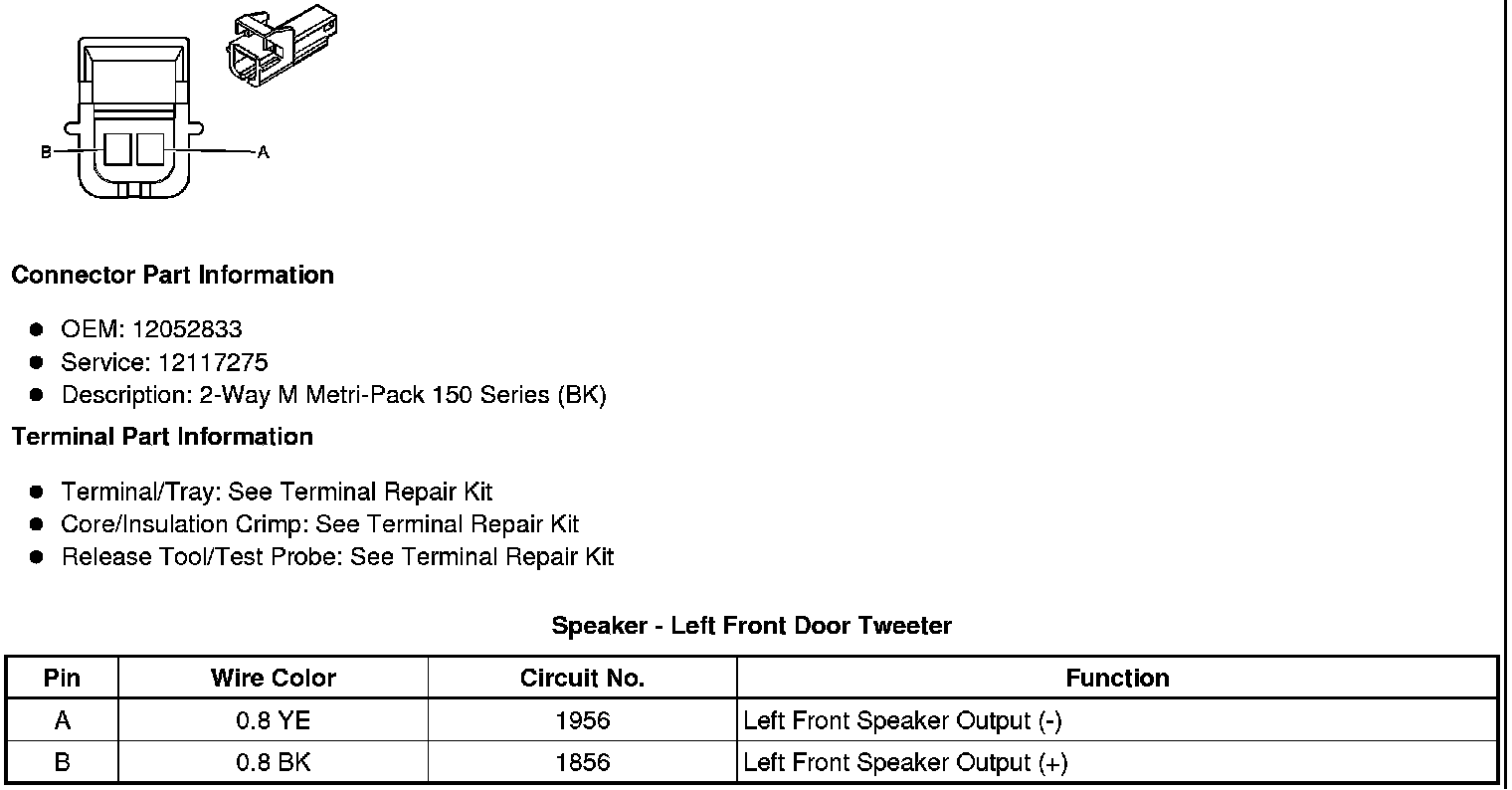

Speaker - Left Front Door Tweeter

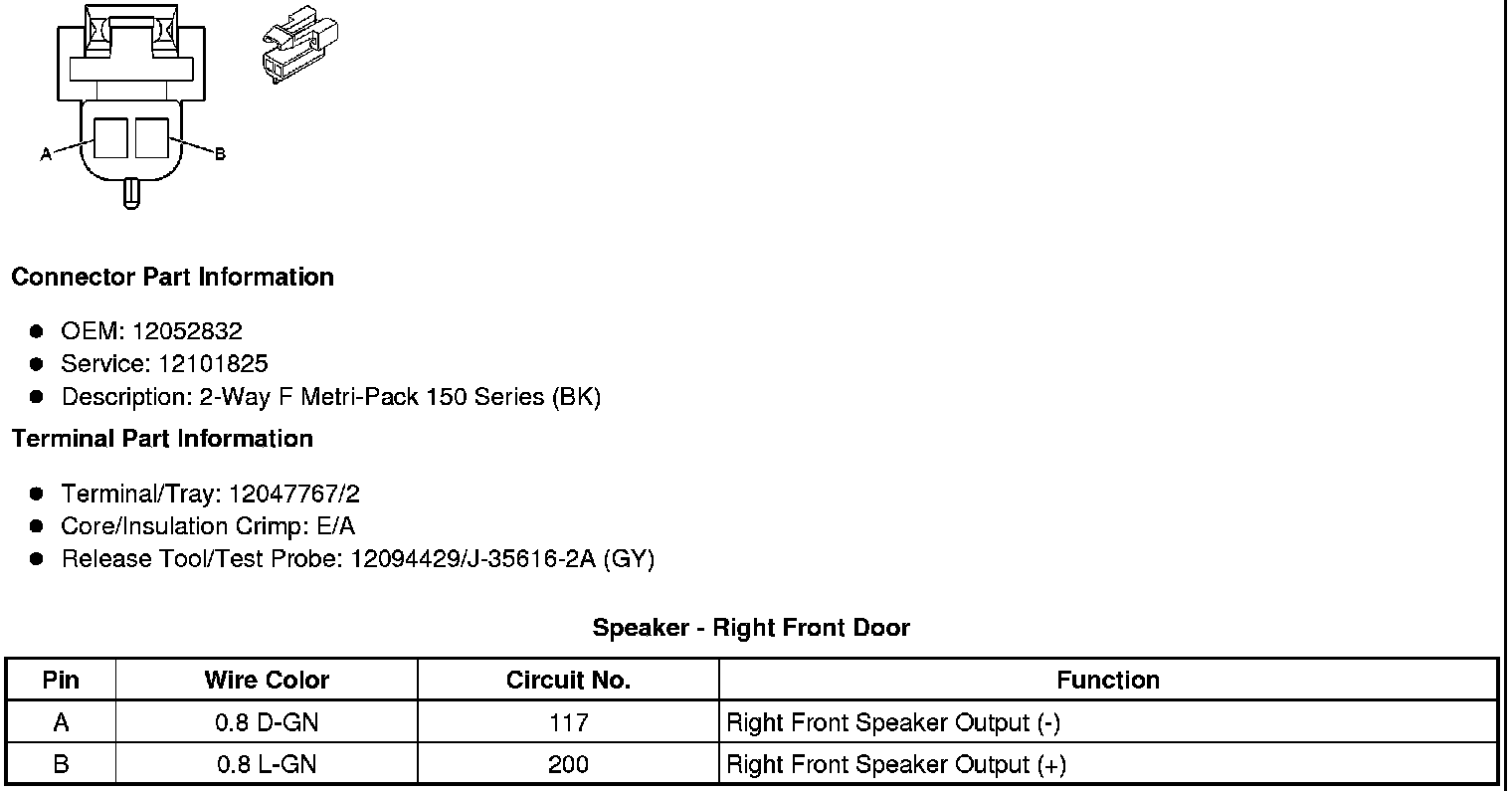

Speaker - Right Front Door

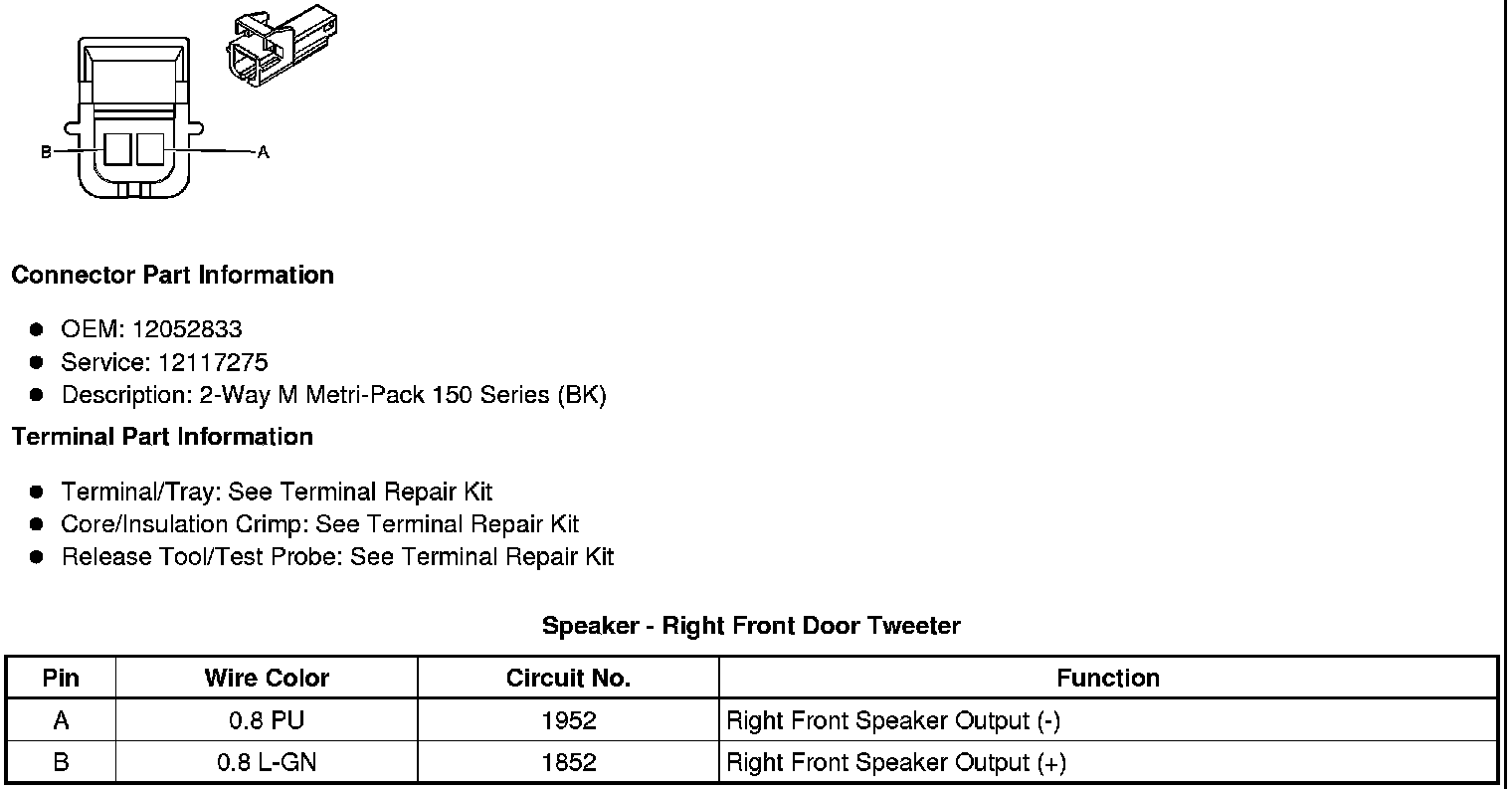

Speaker - Right Front Door Tweeter

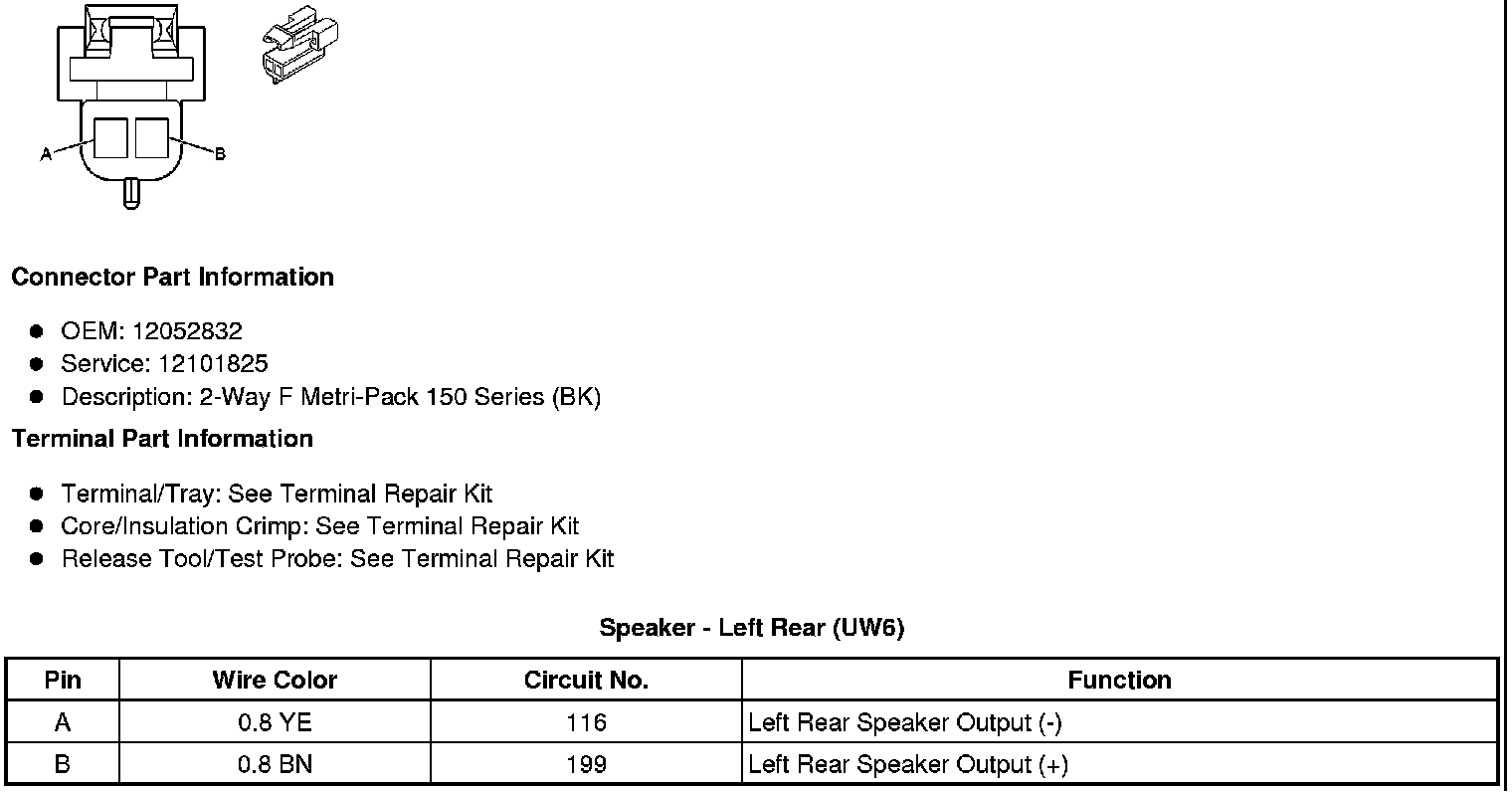

Speaker - Left Rear (UW6)

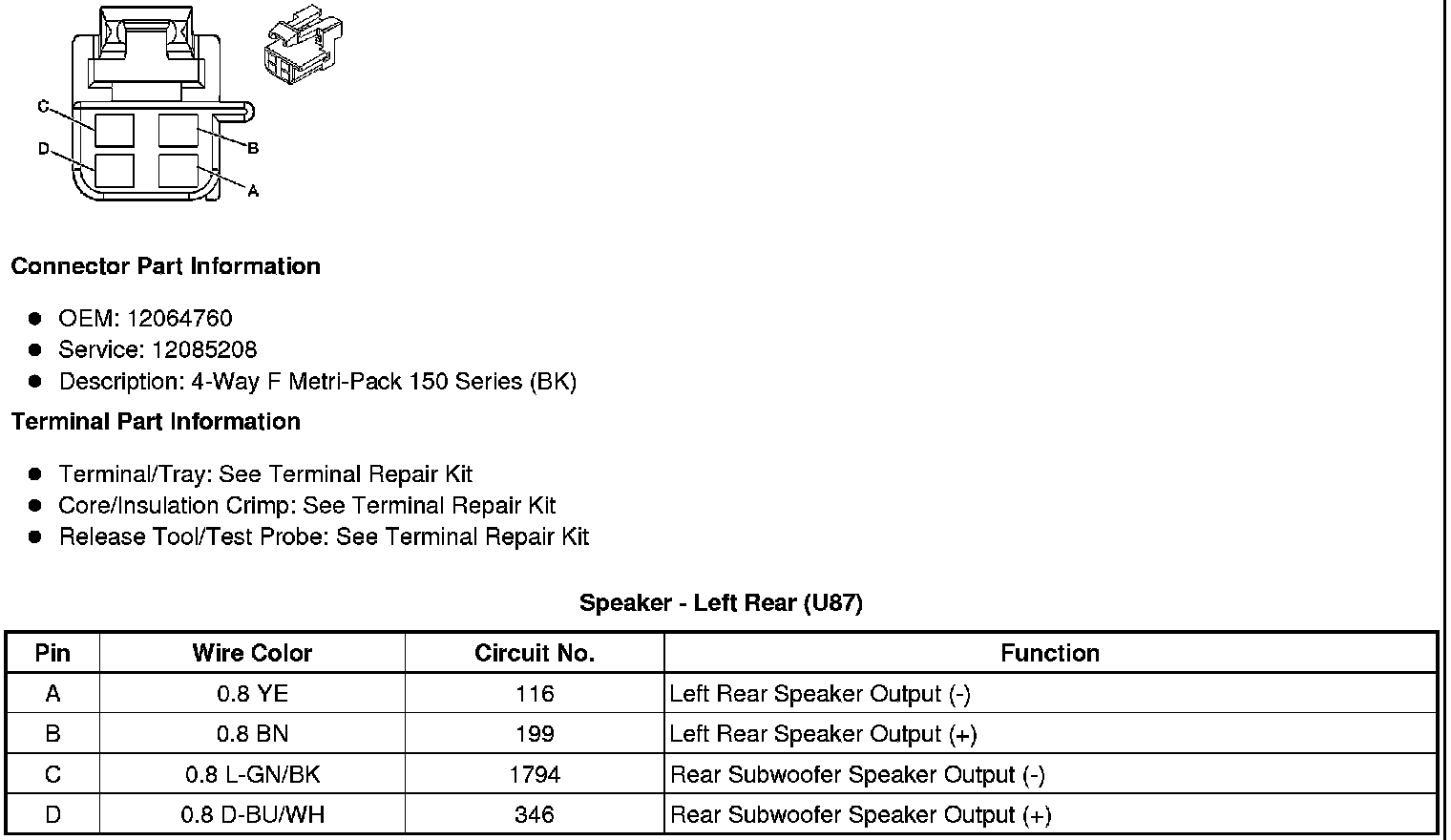

Speaker - Left Rear (U87)

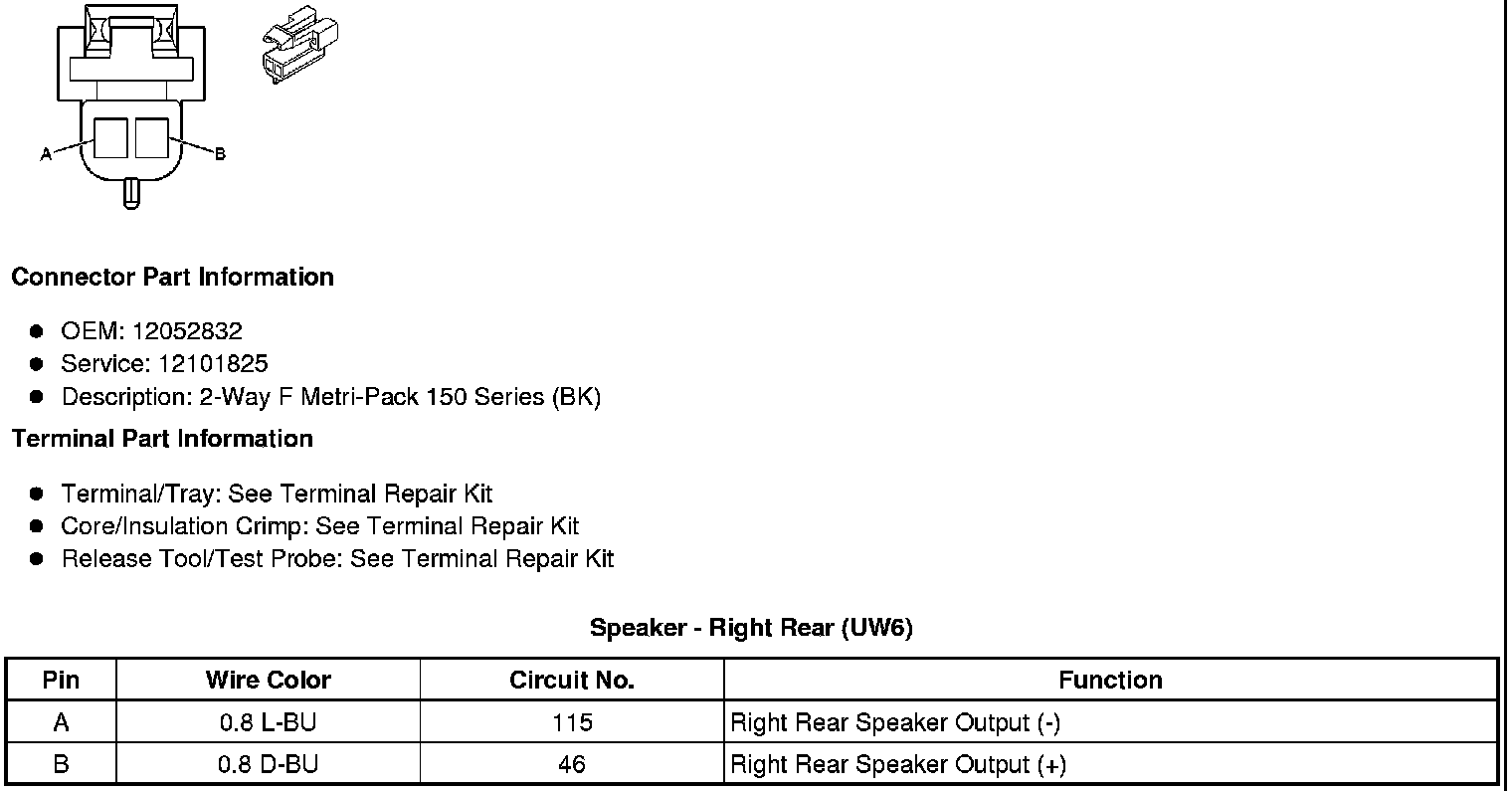

Speaker - Right Rear (UW6)

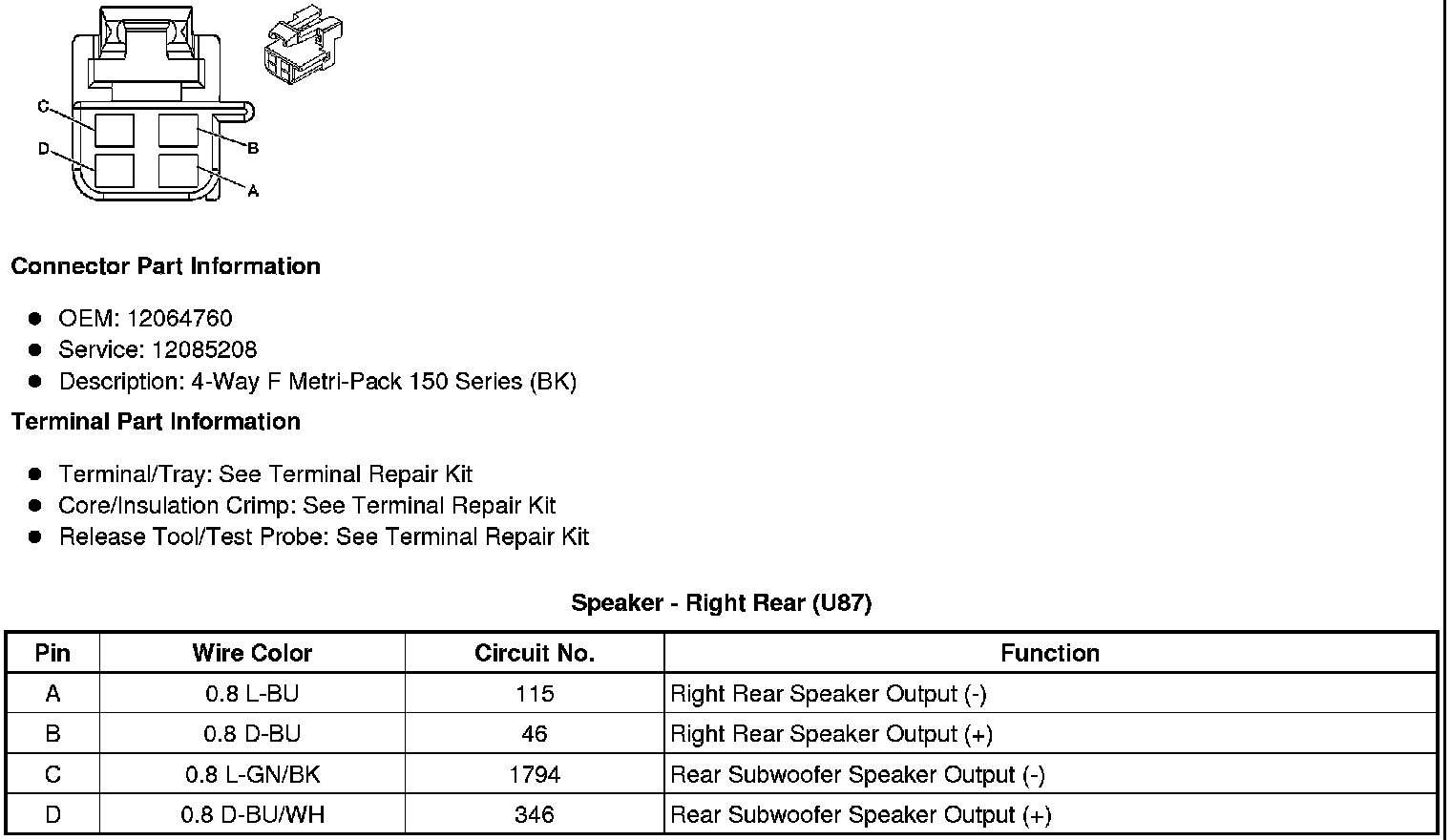

Speaker - Right Rear (U87)
