Seat Temperature Element

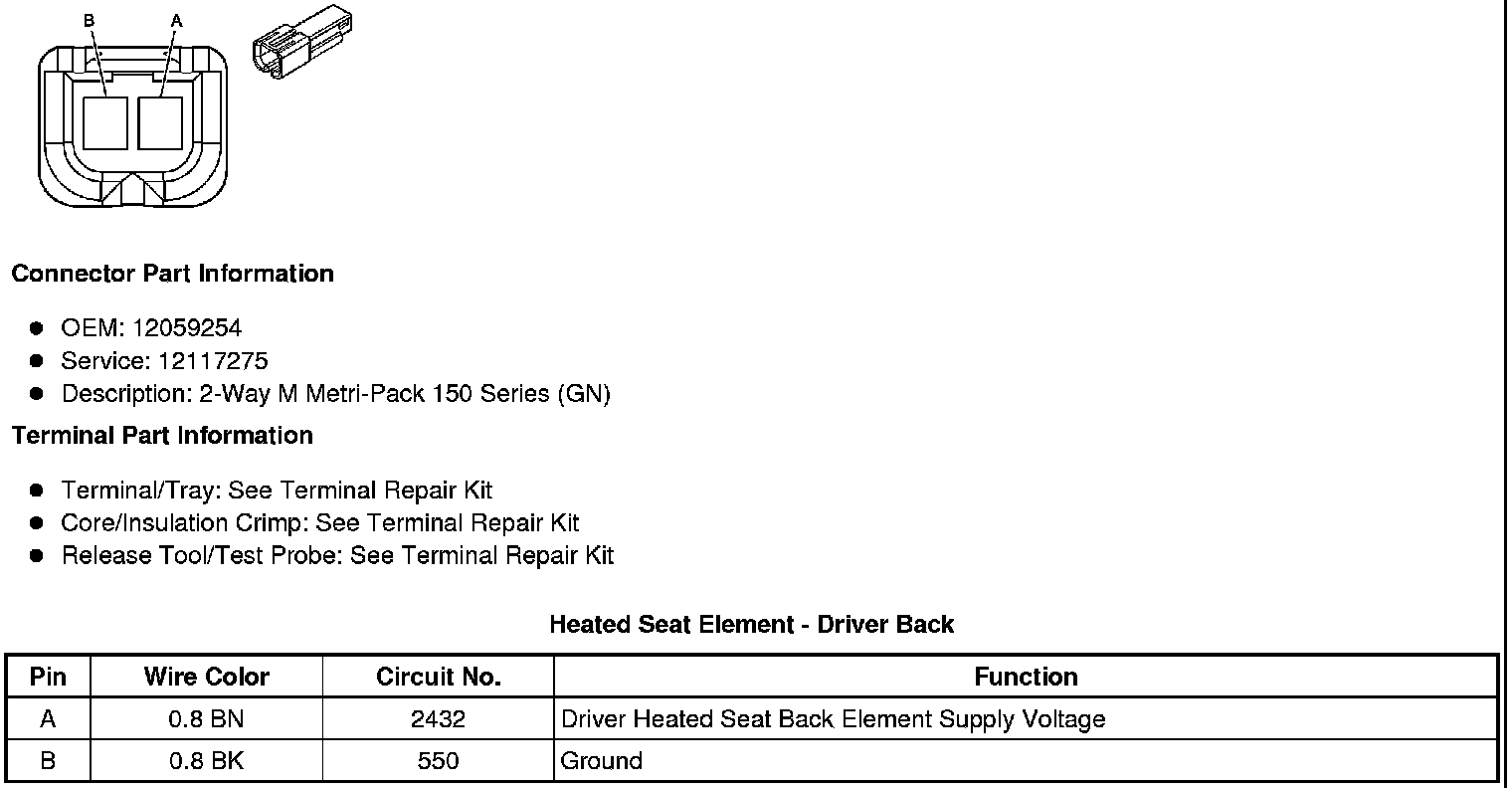

Heated Seat Element - Driver Back

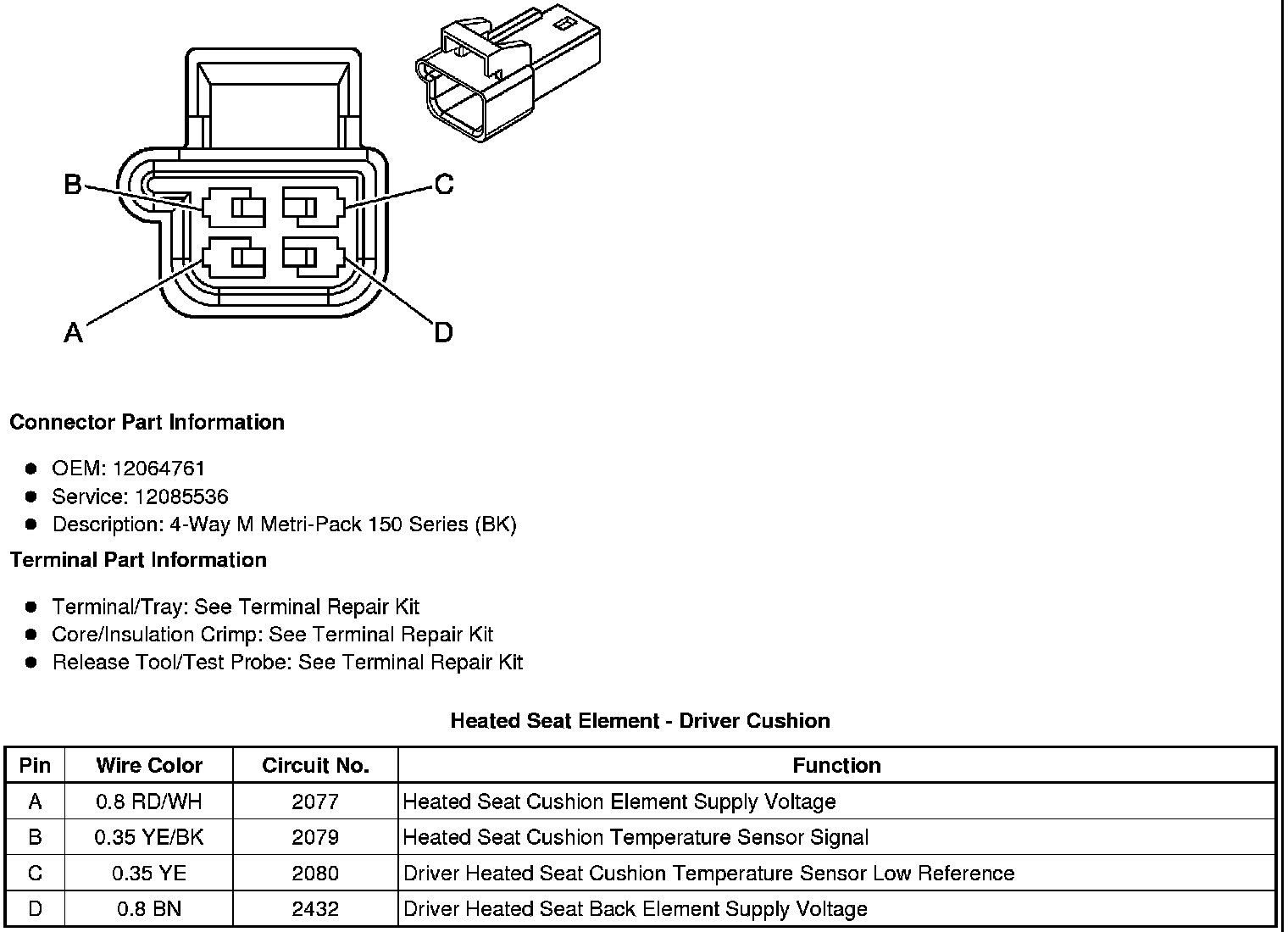

Heated Seat Element - Driver Cushion

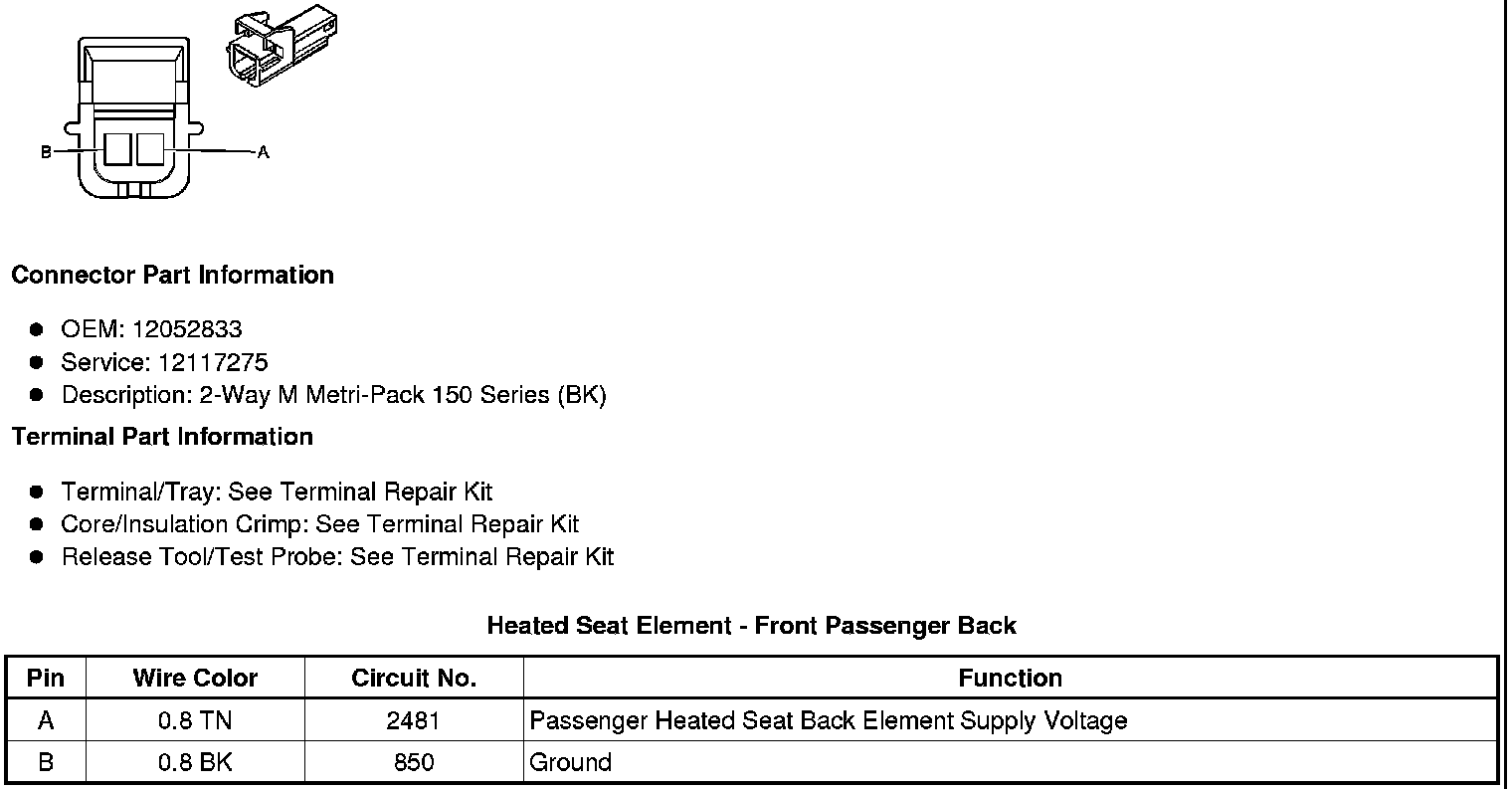

Heated Seat Element - Front Passenger Back

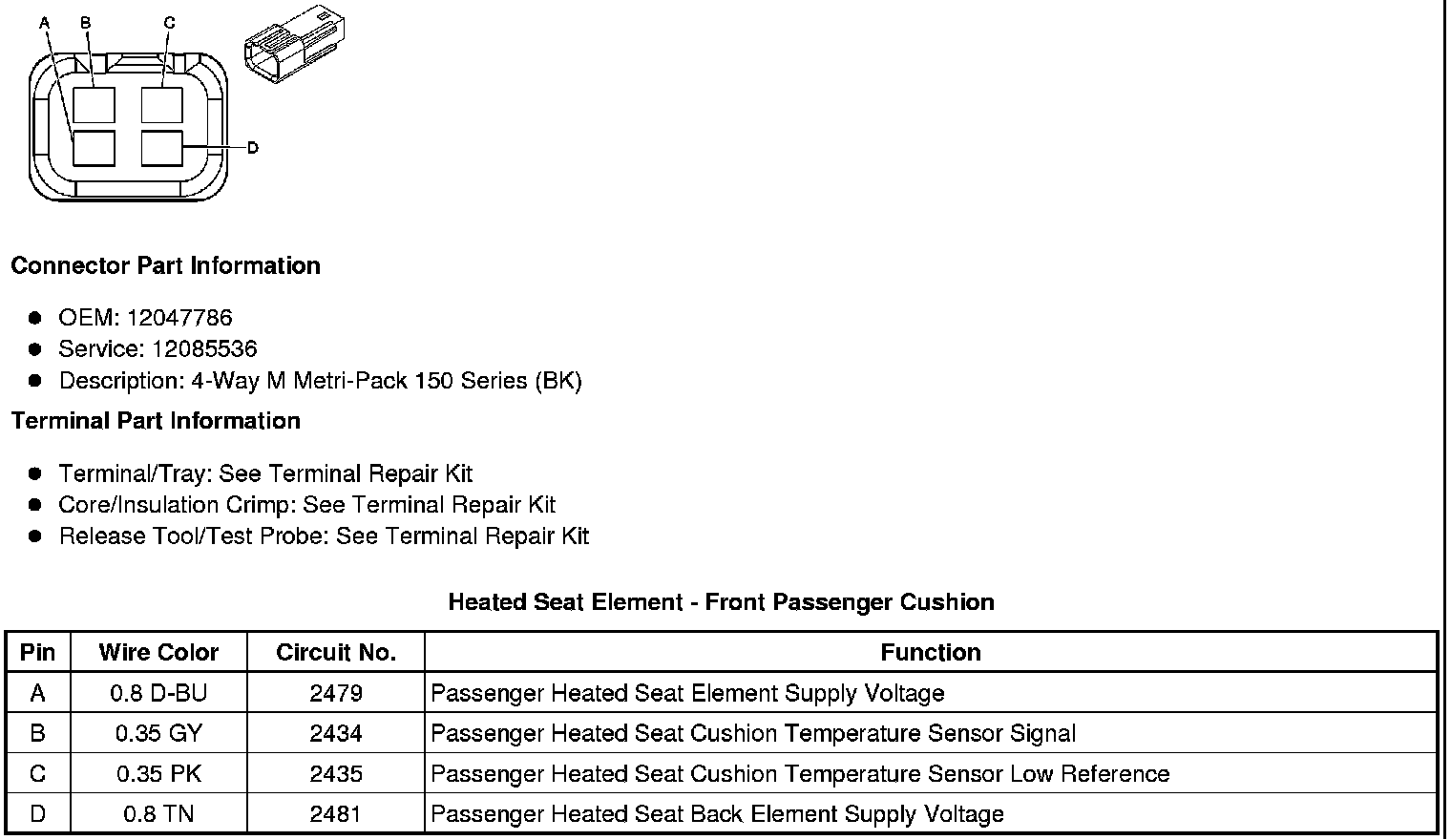

Heated Seat Element - Front Passenger Cushion
