Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch

Power Seat Switch

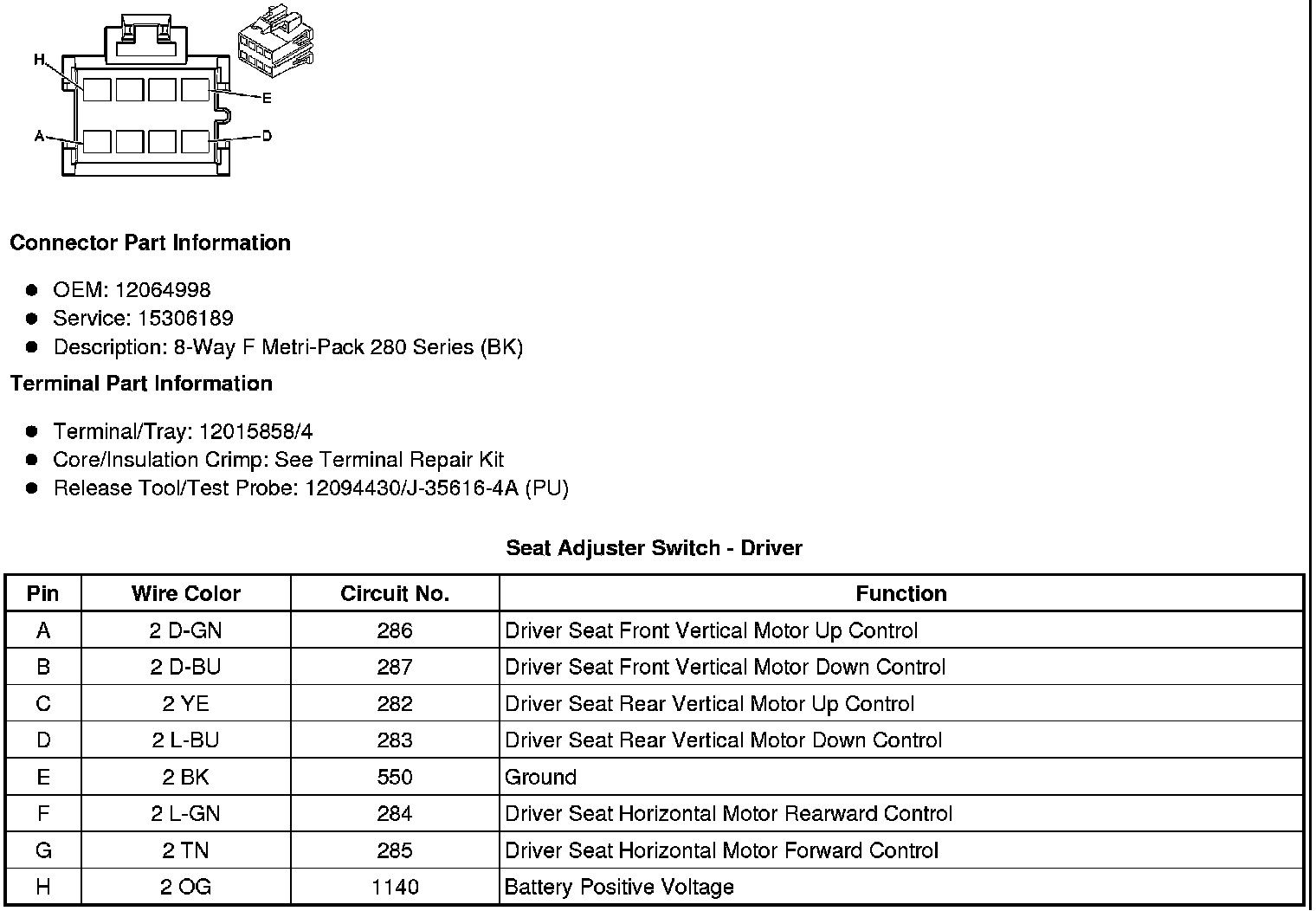

Seat Adjuster Switch - Driver

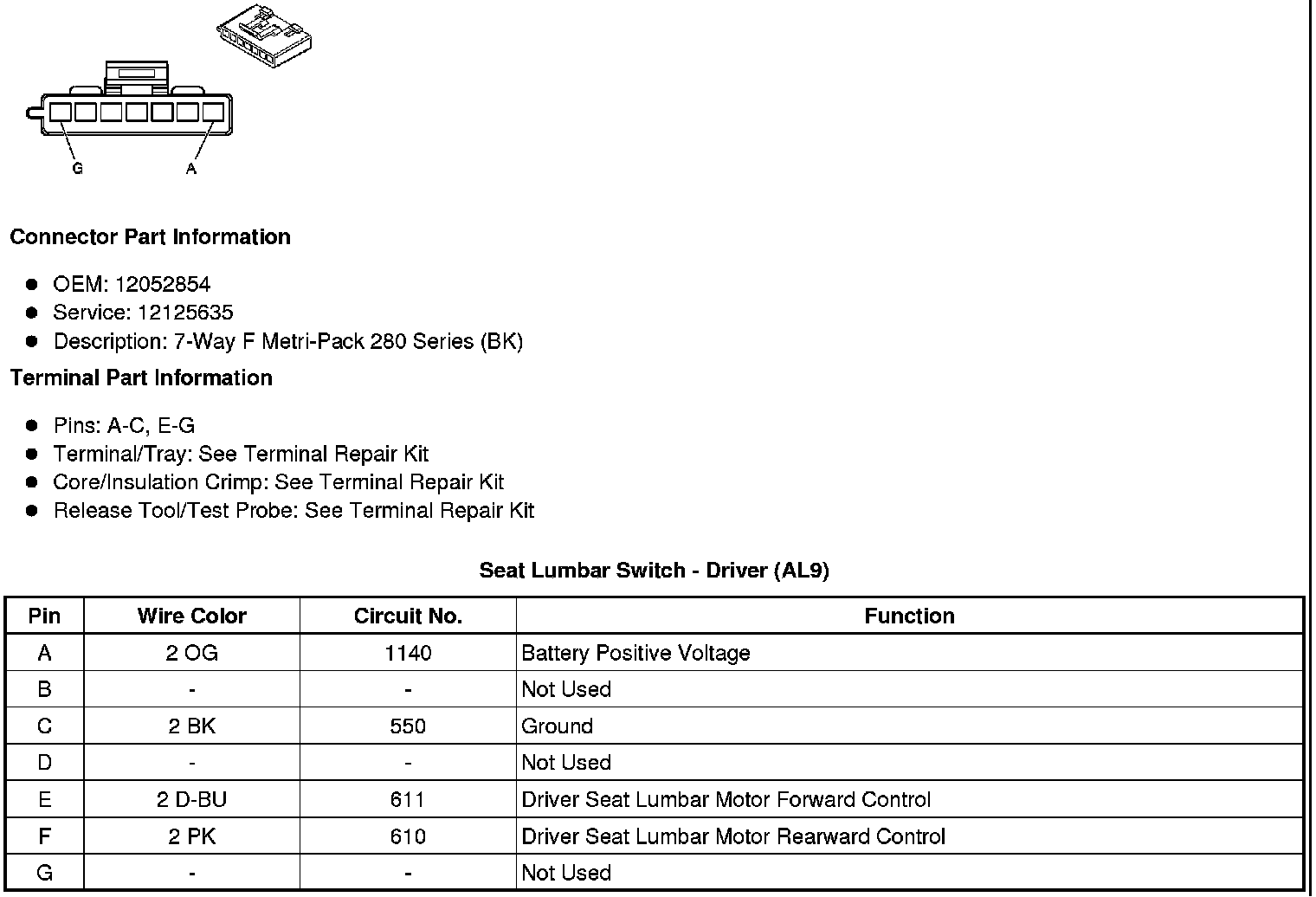

Seat Lumbar Switch - Driver (AL9)
