Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor

Power Seat Motor

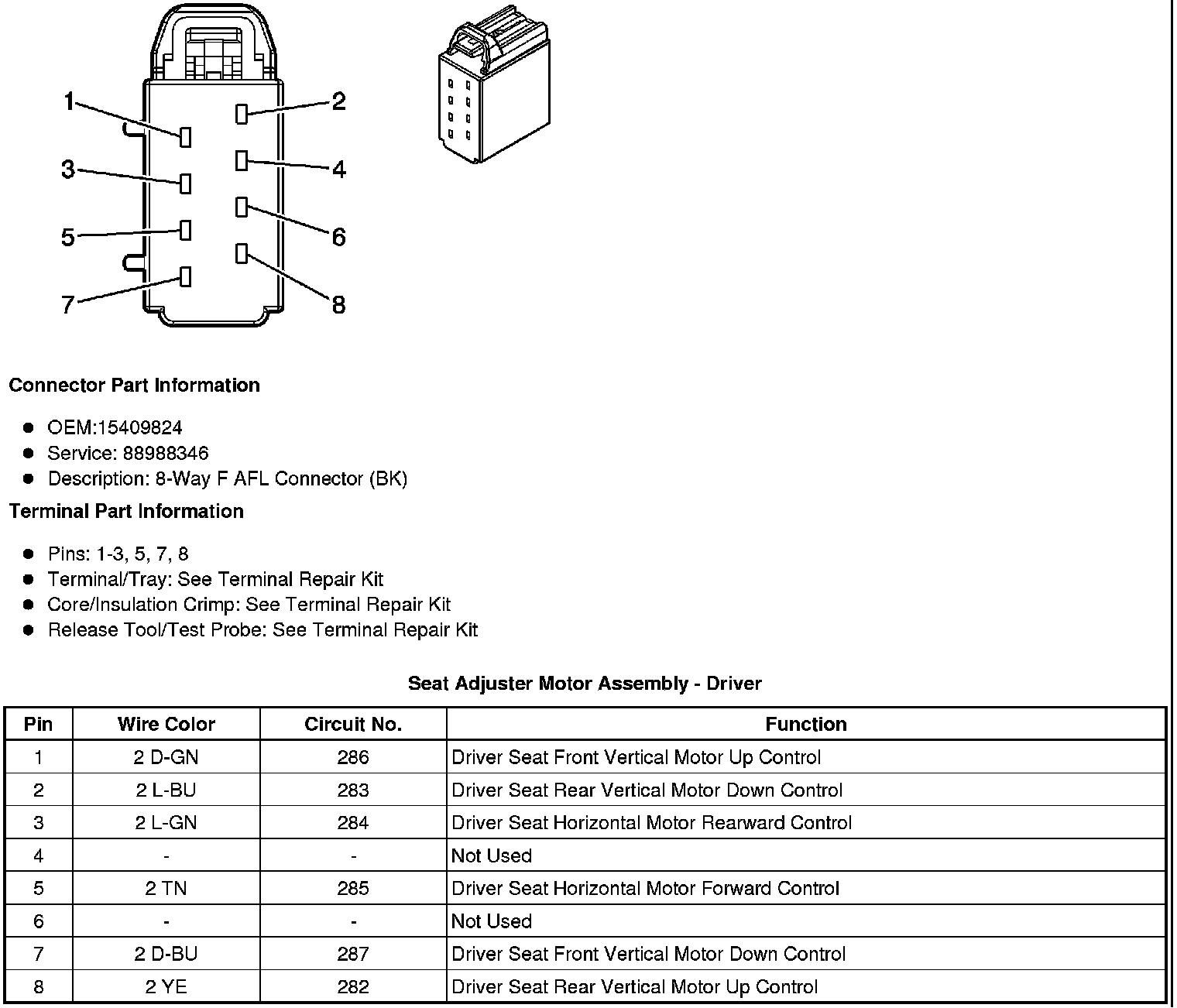

Seat Adjuster Motor Assembly - Driver

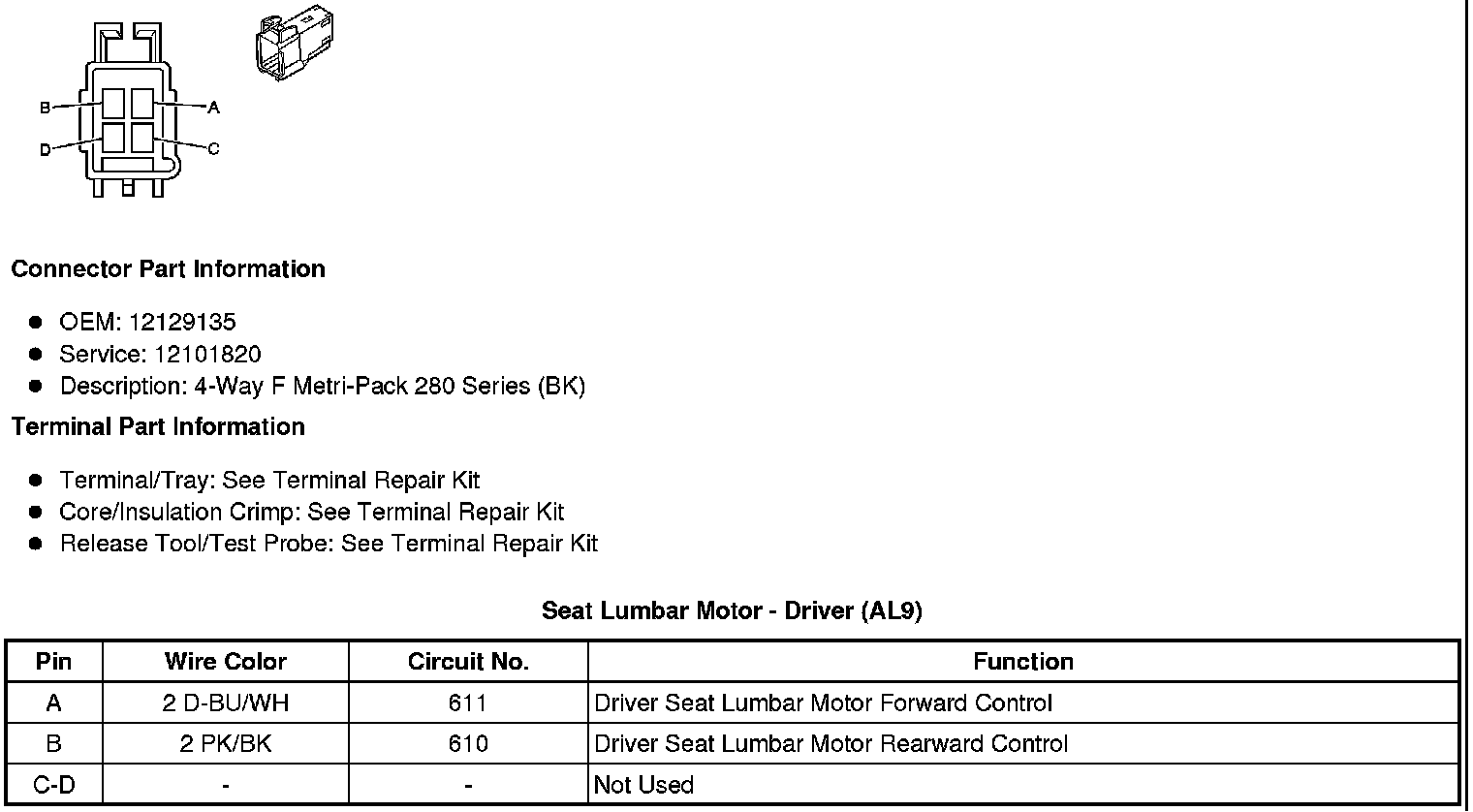

Seat Lumbar Motor - Driver (AL9)
