Power Locks

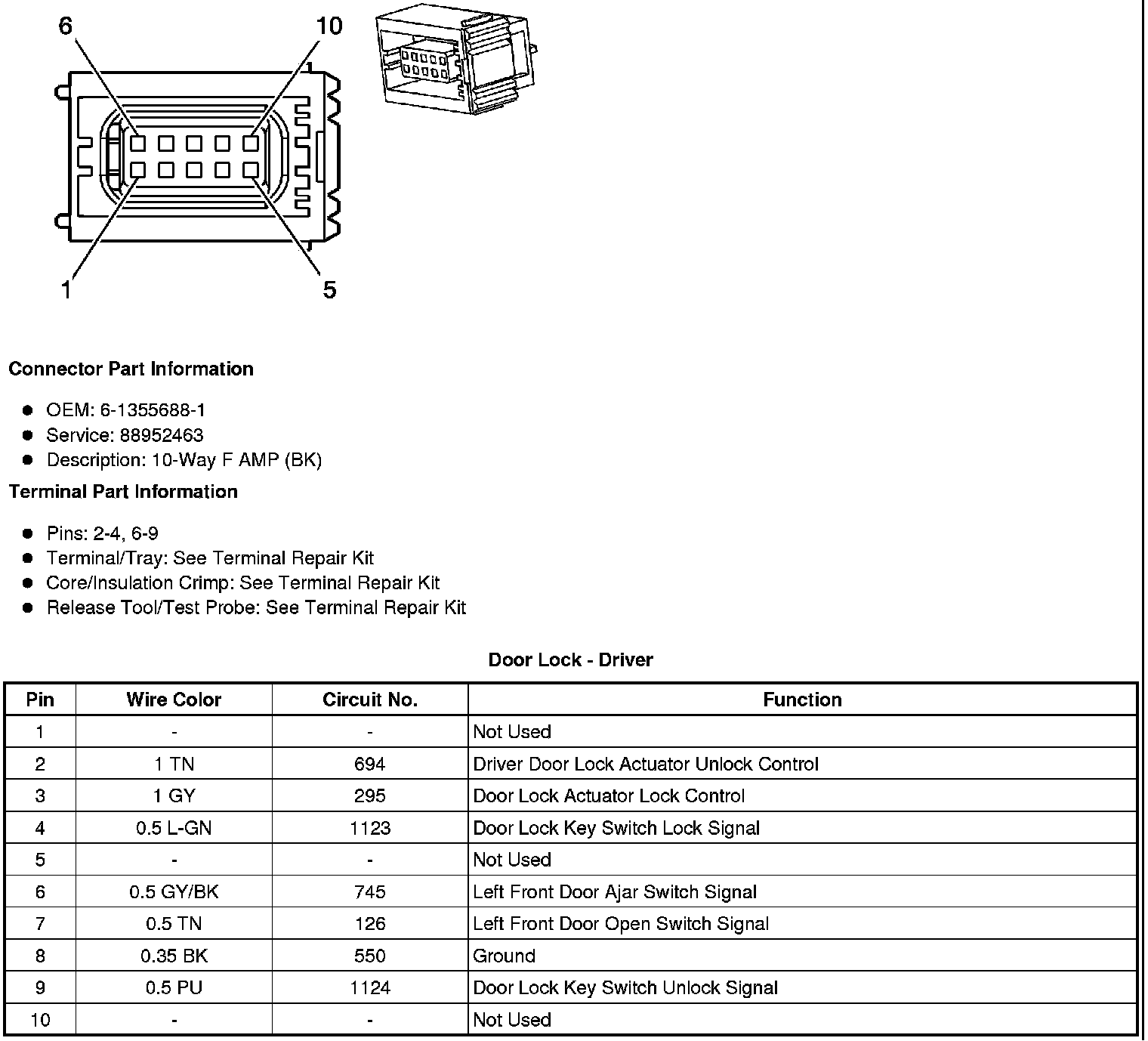

Door Lock - Driver






Door Lock - Front Passenger

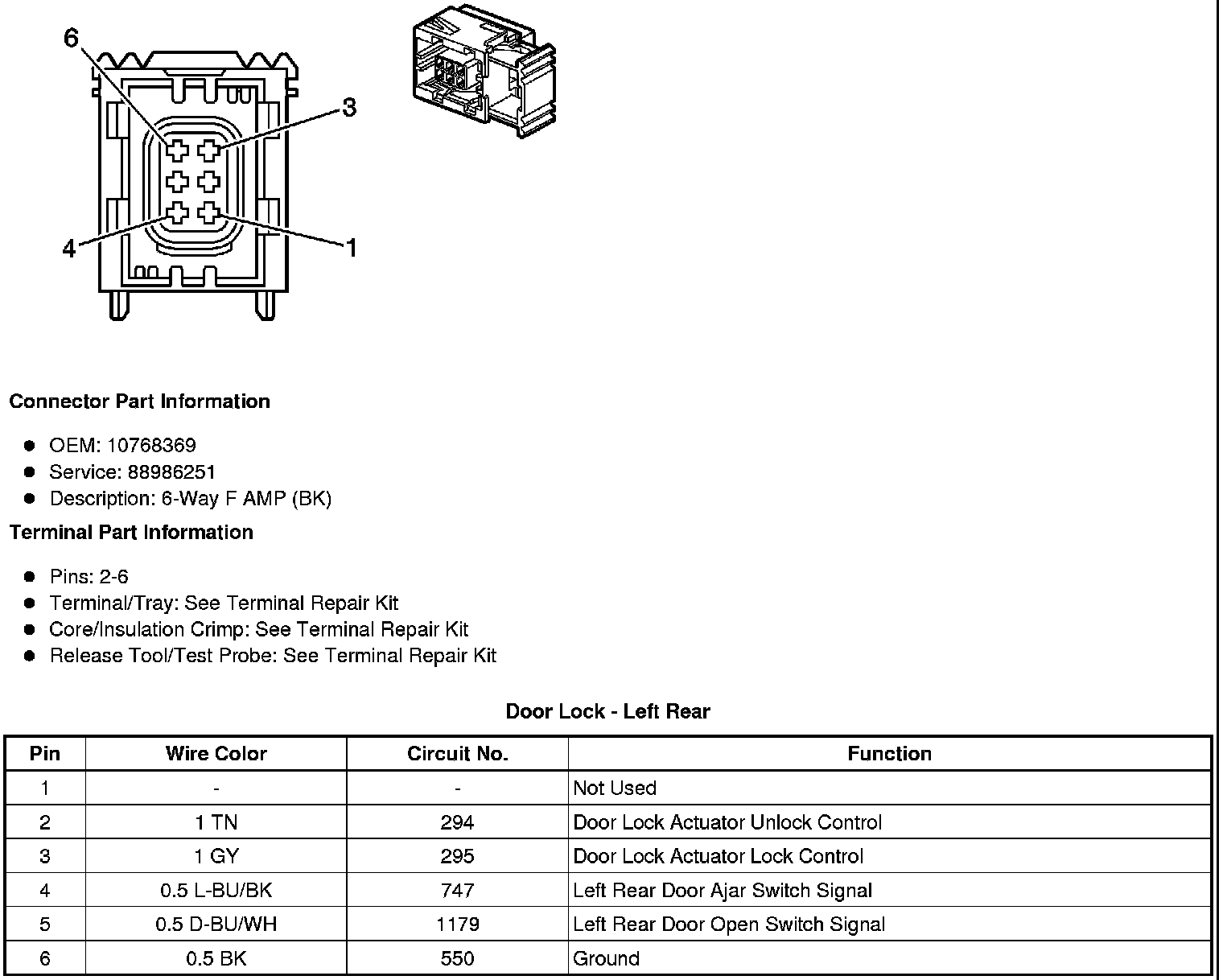

Door Lock - Left Rear

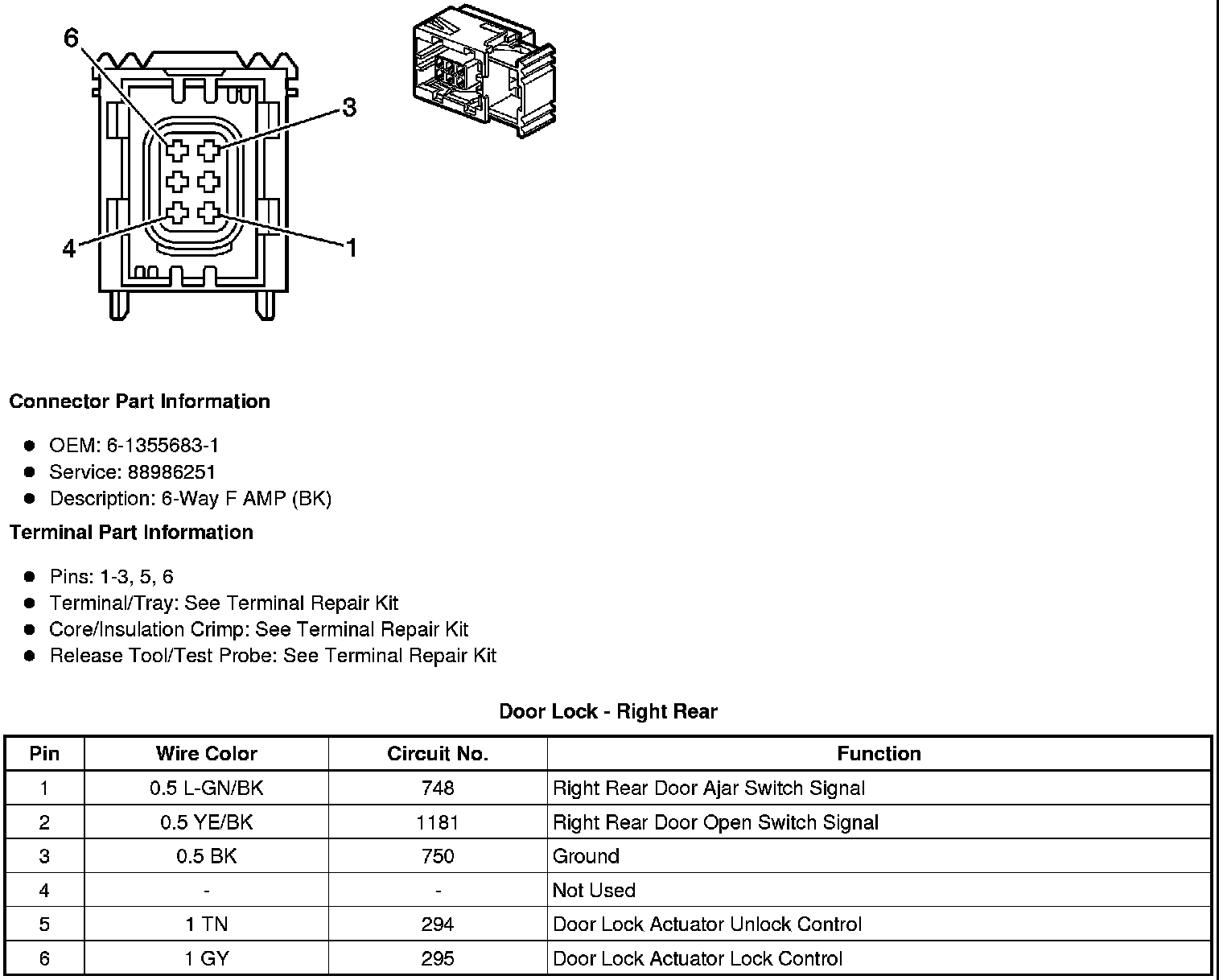

Door Lock - Right Rear

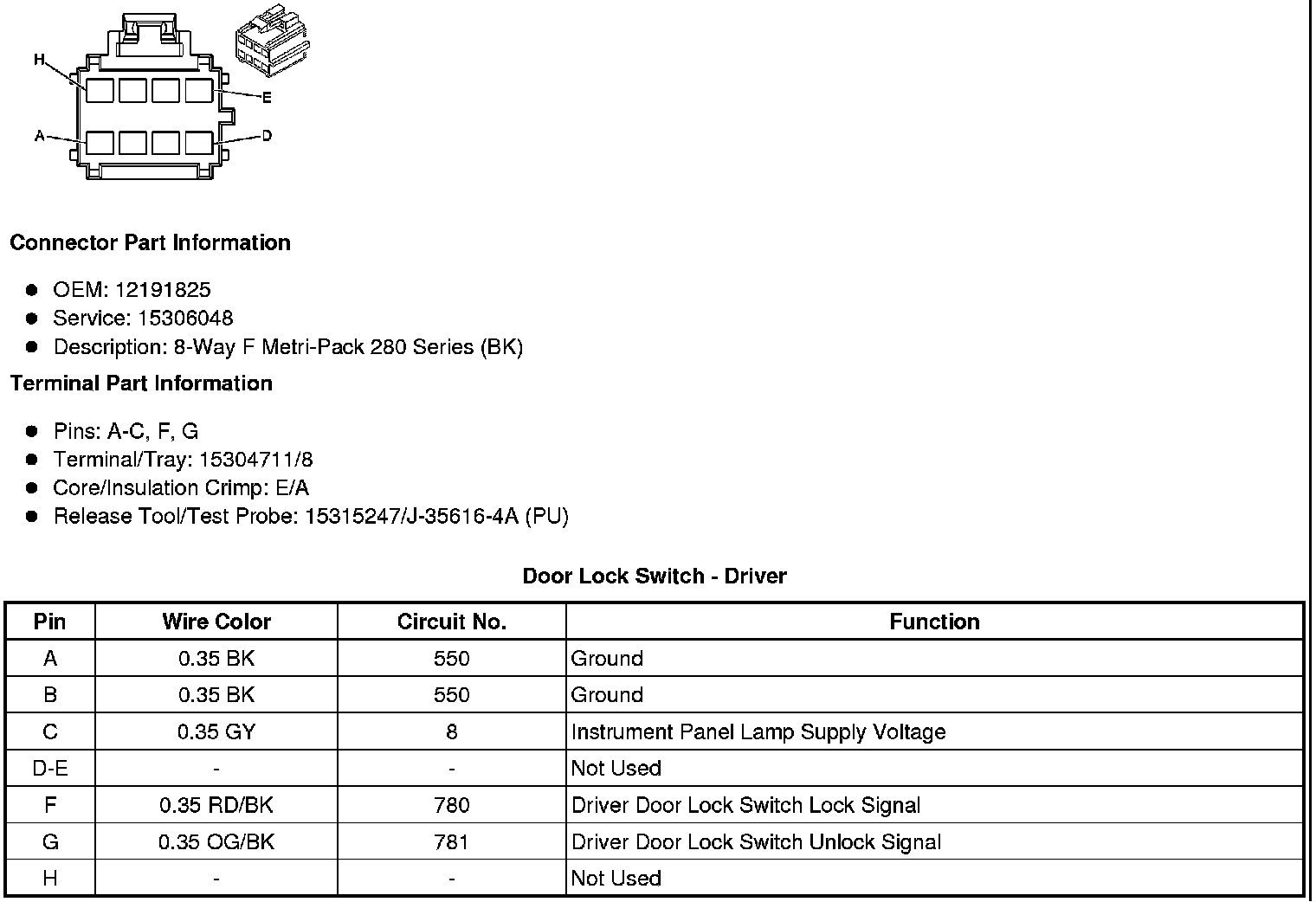

Door Lock Switch - Driver

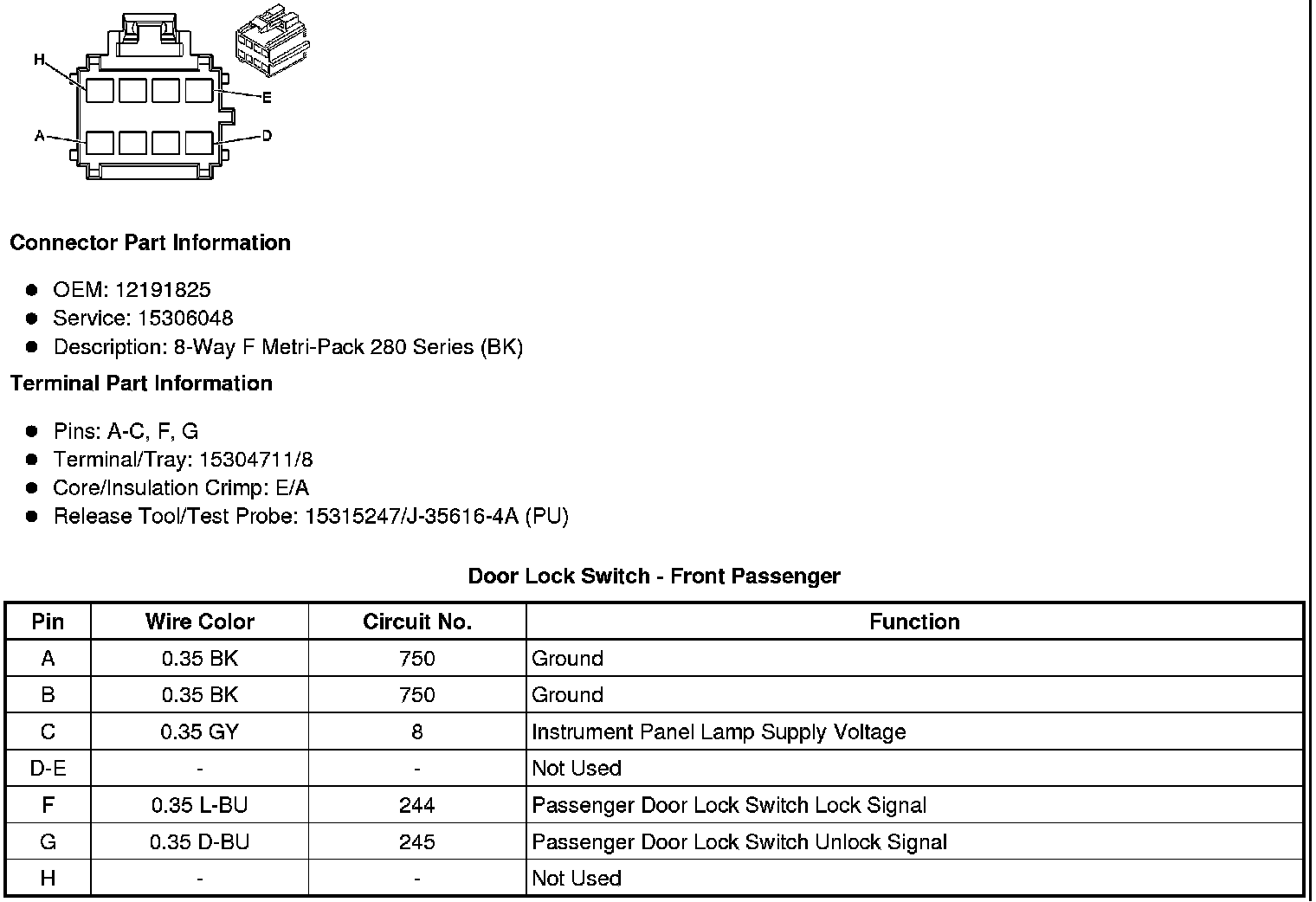

Door Lock Switch - Front Passenger

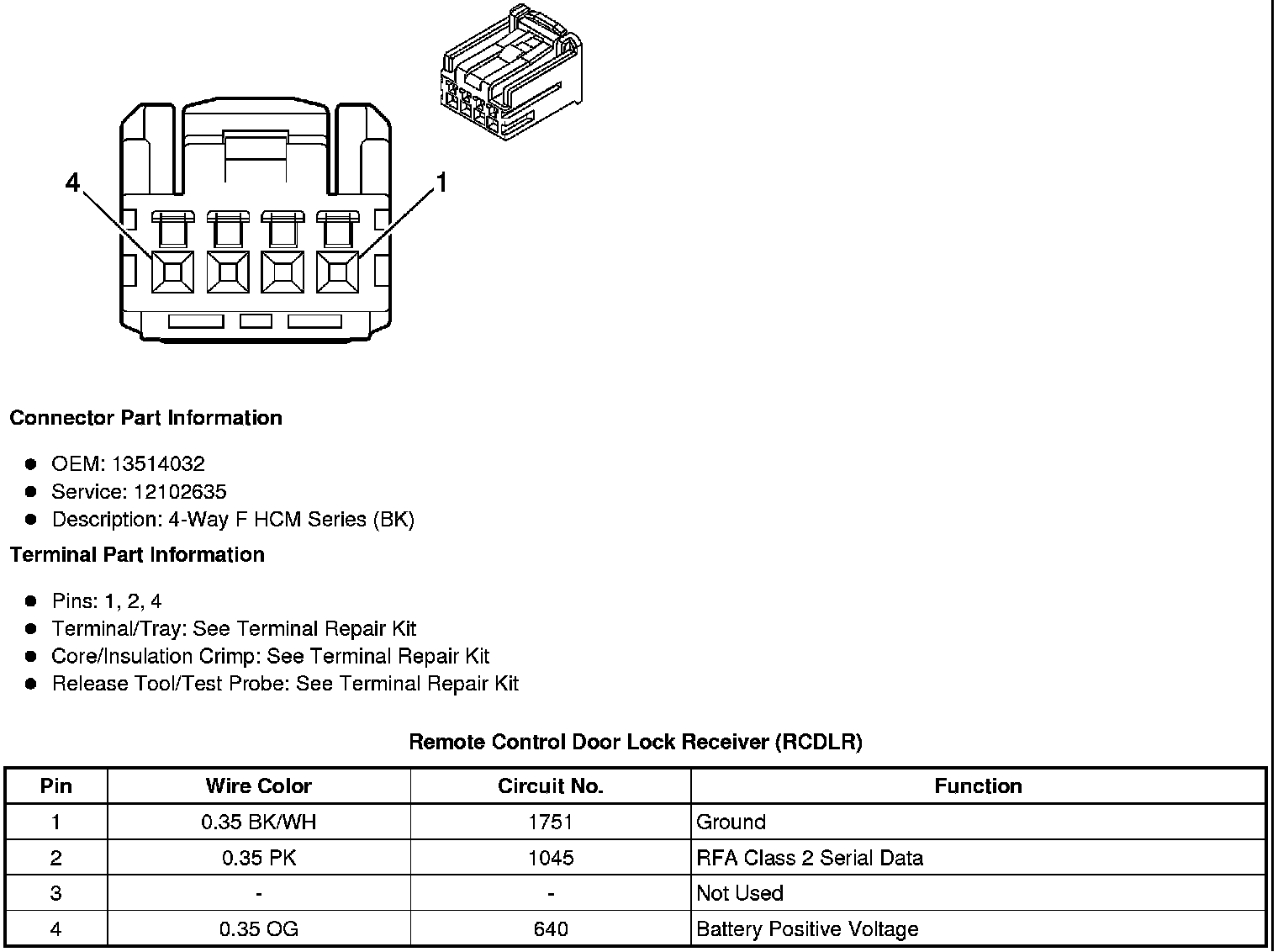

Remote Control Door Lock Receiver (RCDLR)
