Pontiac
>>
2008
>>
Grand Prix V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X400-X499
>>
X403
X403

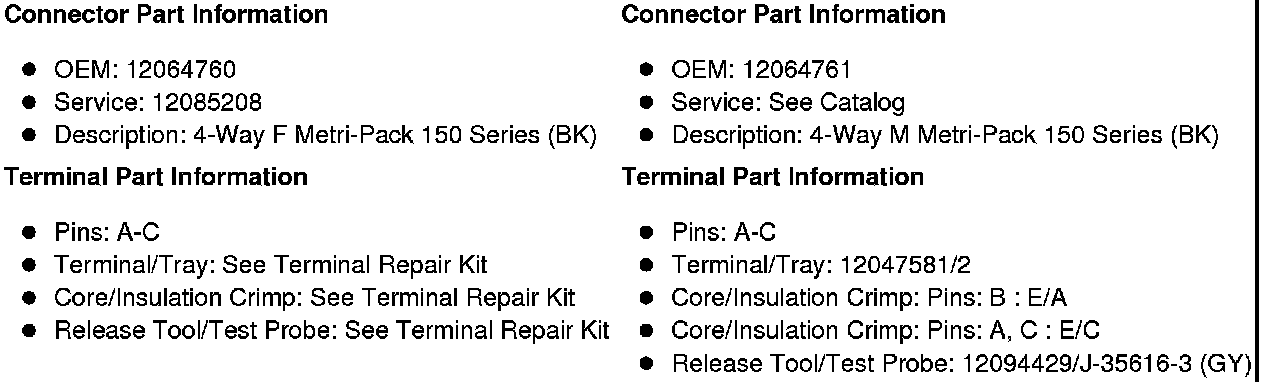

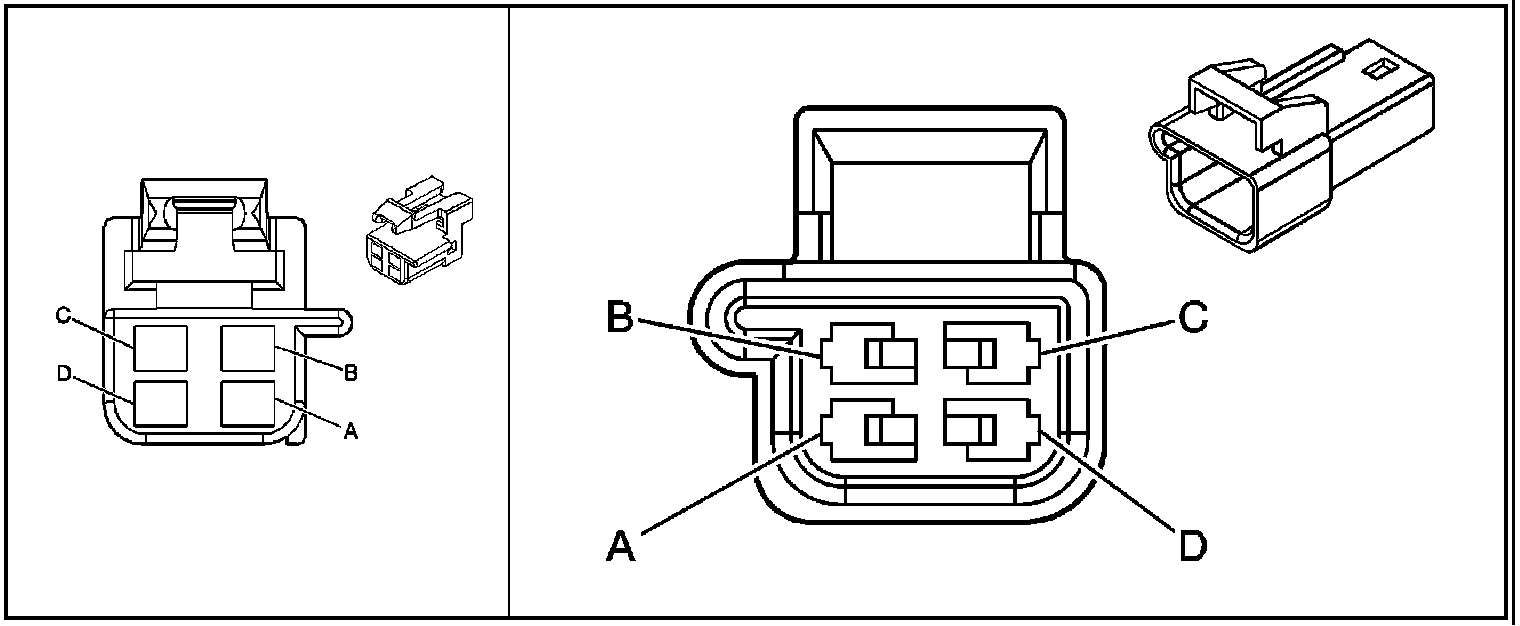

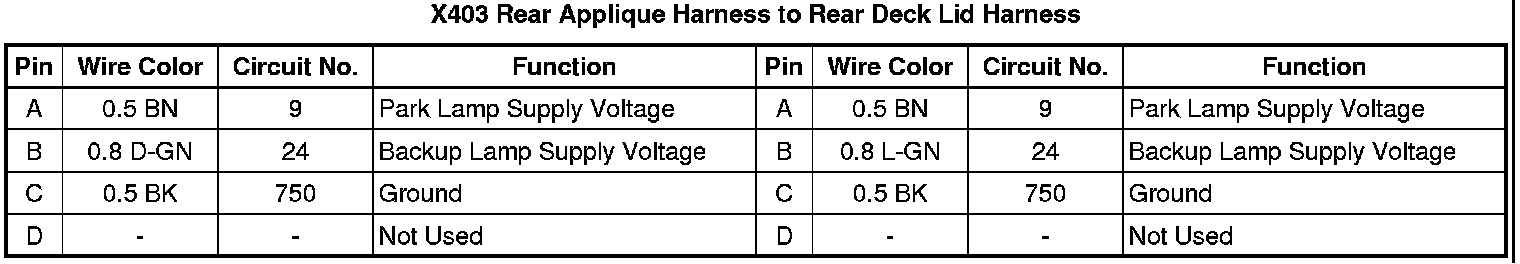

X403 Rear Applique Harness to Rear Deck Lid Harness
