Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> X300-X399 >> X355

X355

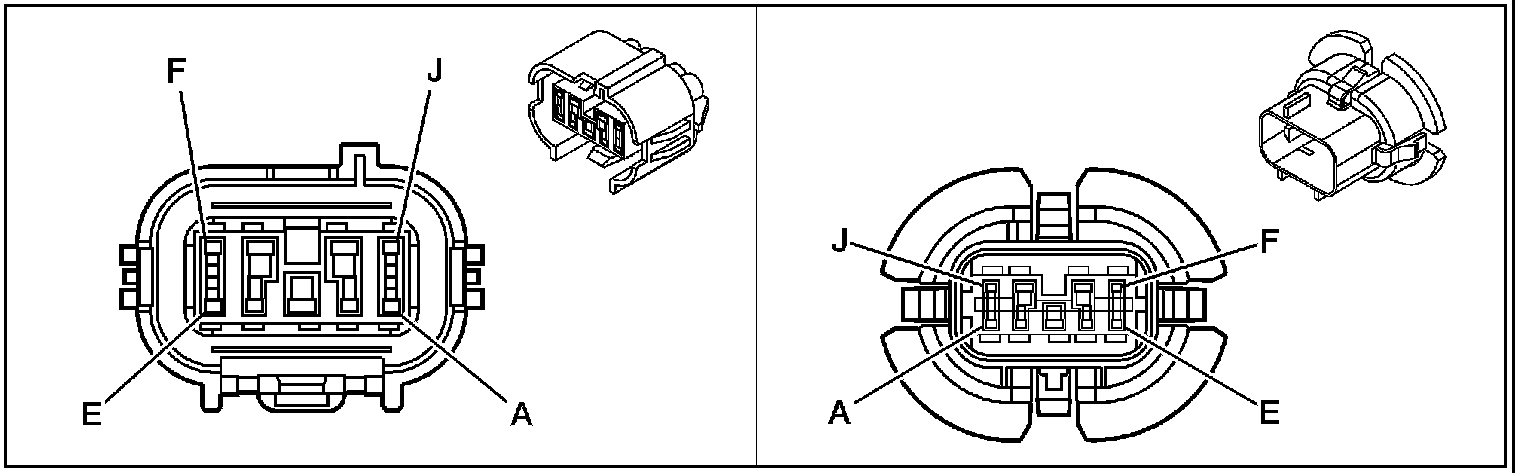

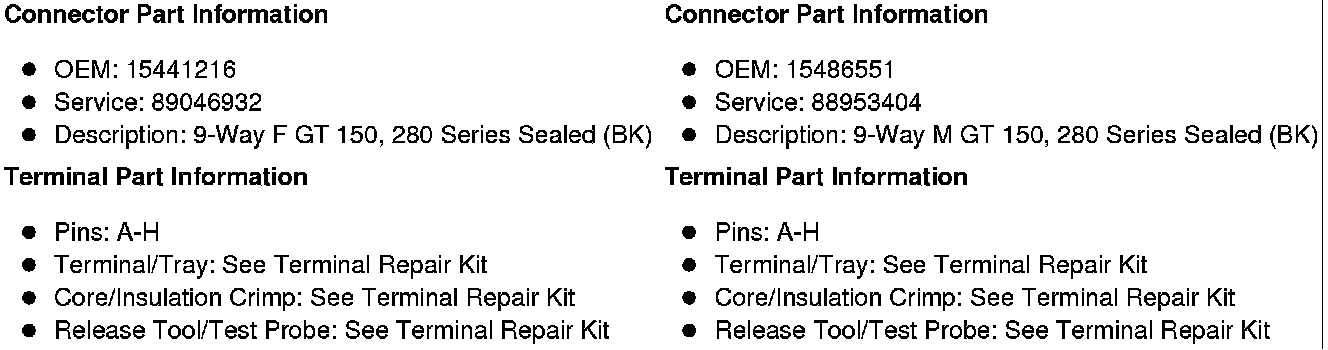

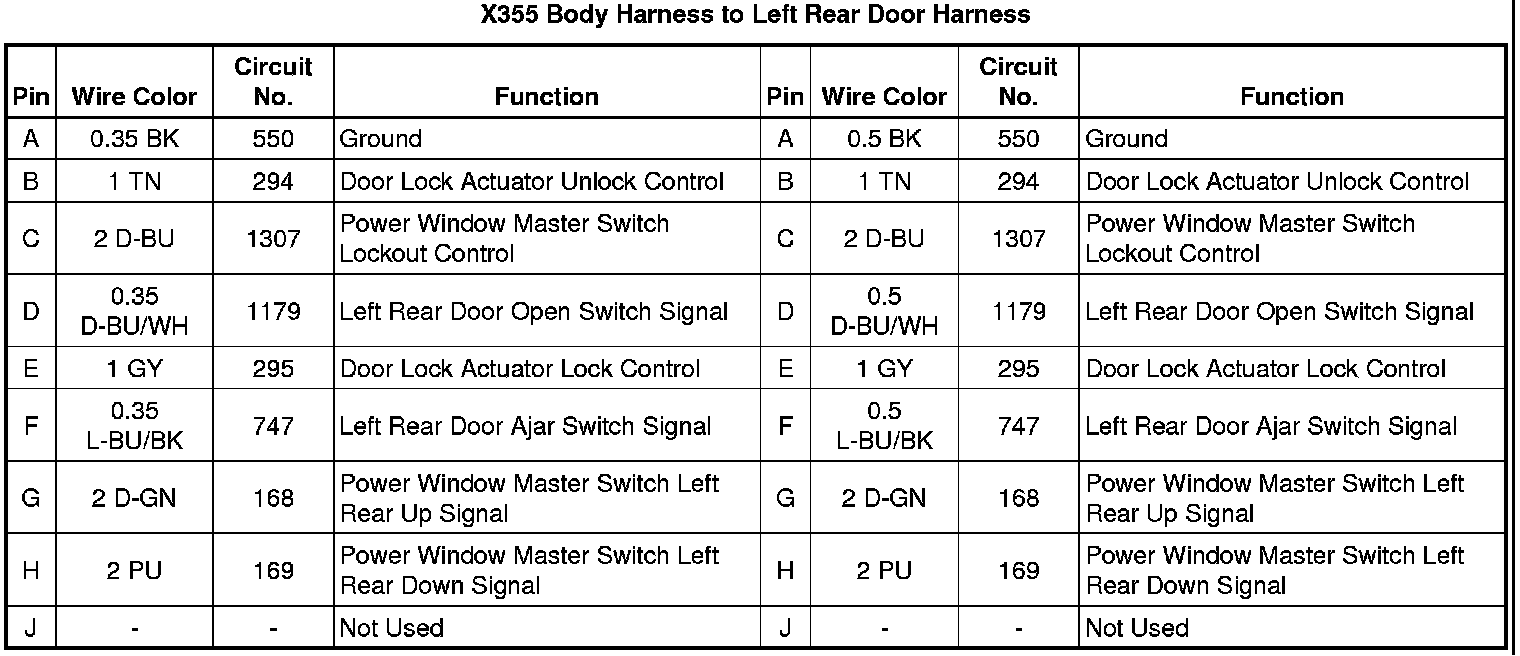

X355 Body Harness to Left Rear Door Harness
