LEMON Manuals
: Even more car manuals for everyone
Home
>>
Pontiac
>>
2008
>>
Grand Prix V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X300-X399
>>
X313
X313

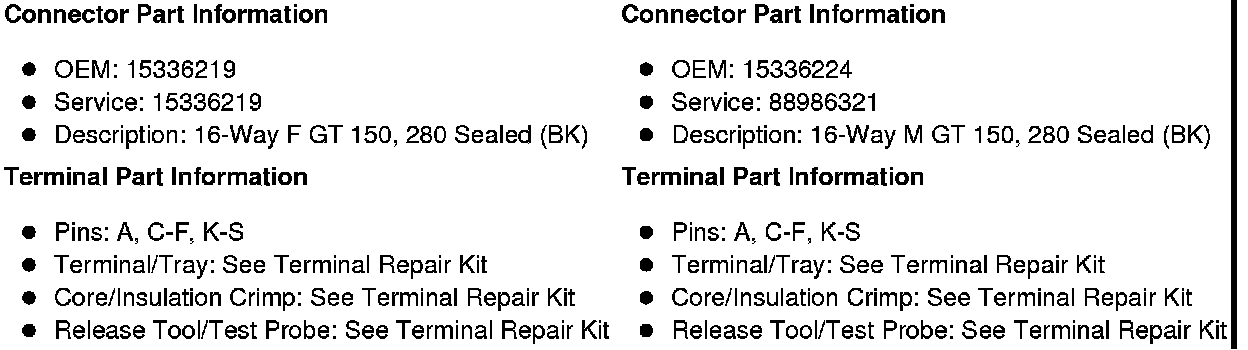

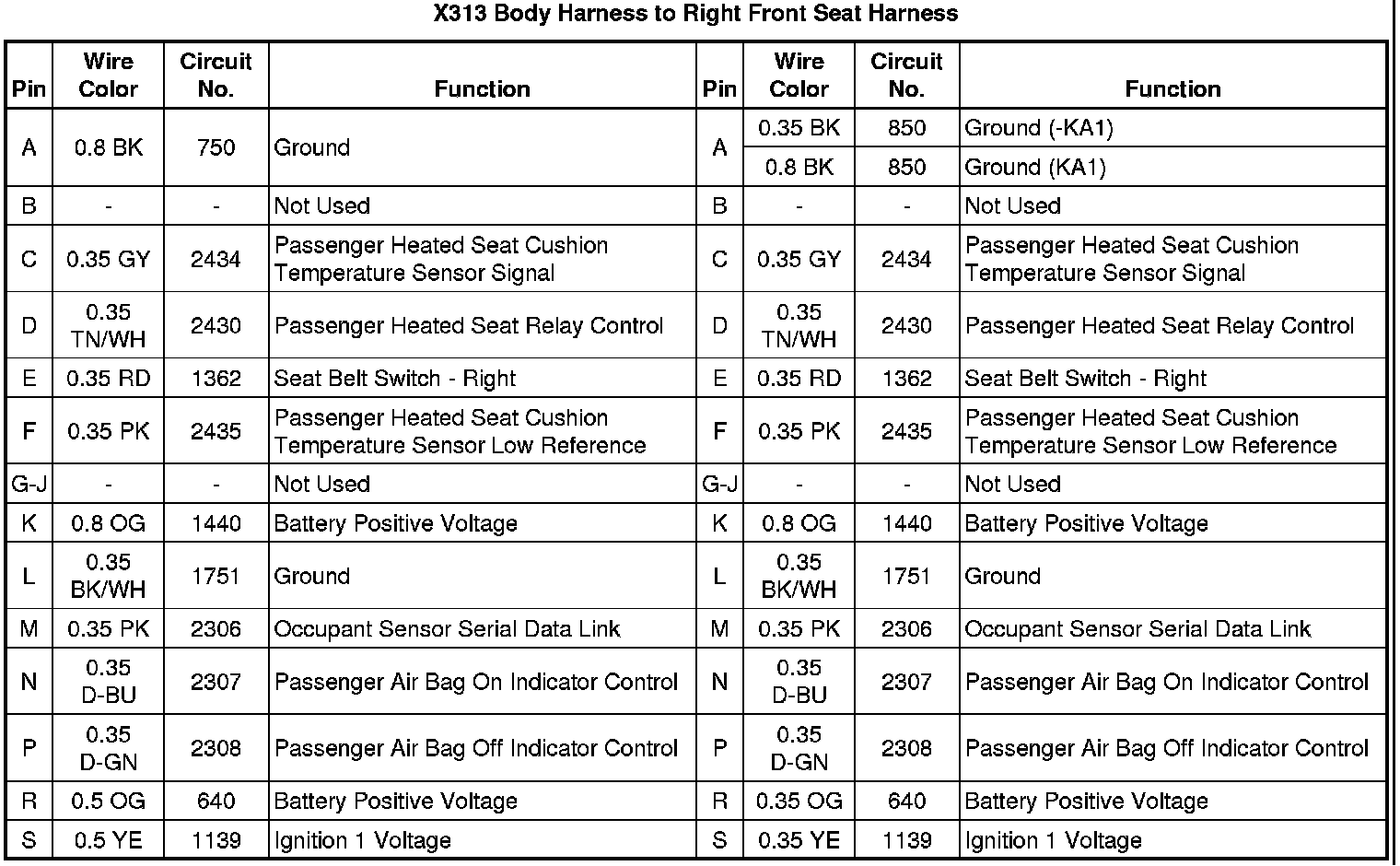

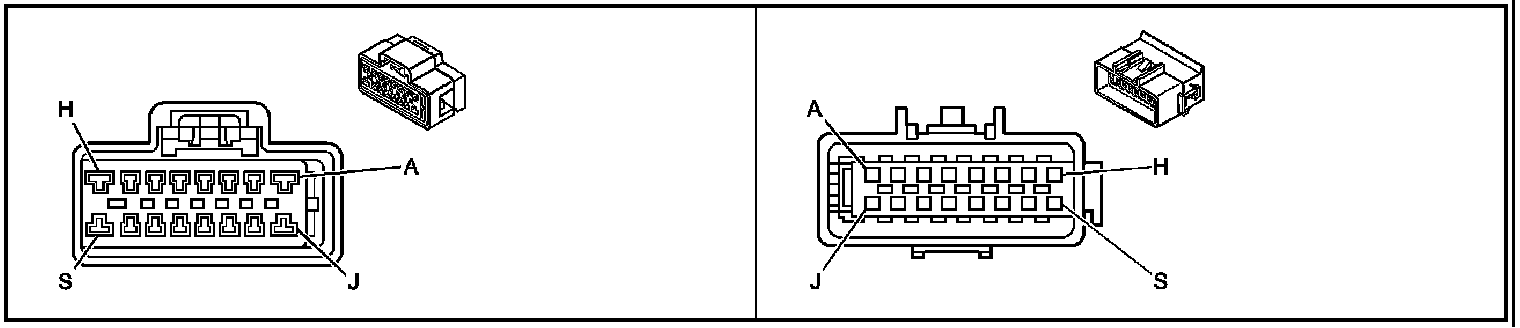

X313 Body Harness to Right Front Seat Harness
