Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> X300-X399 >> X301

X301

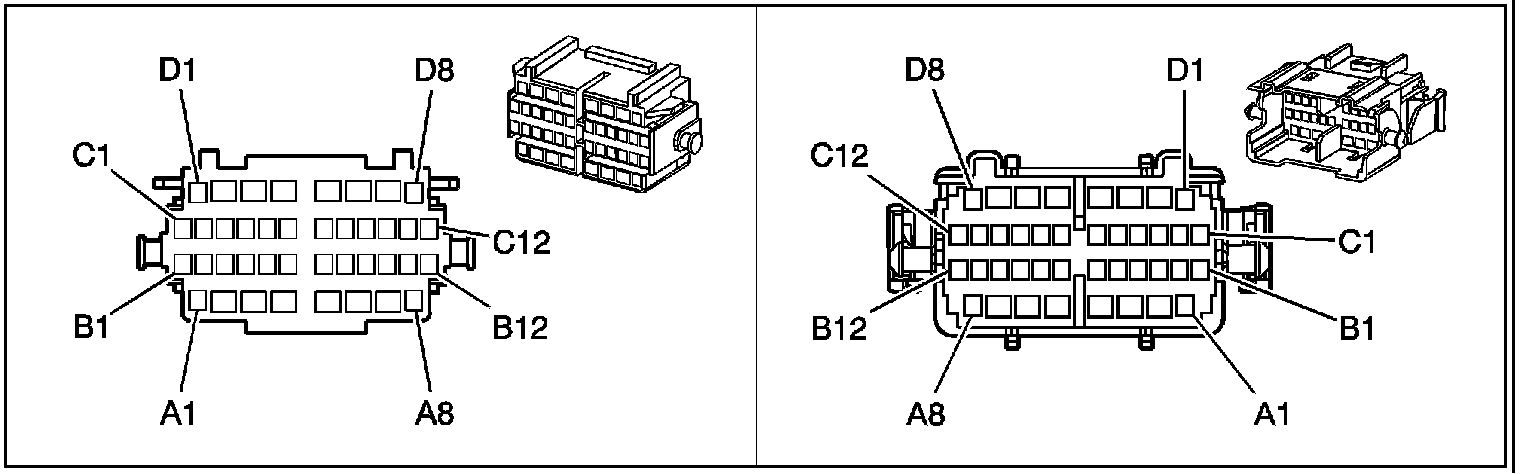

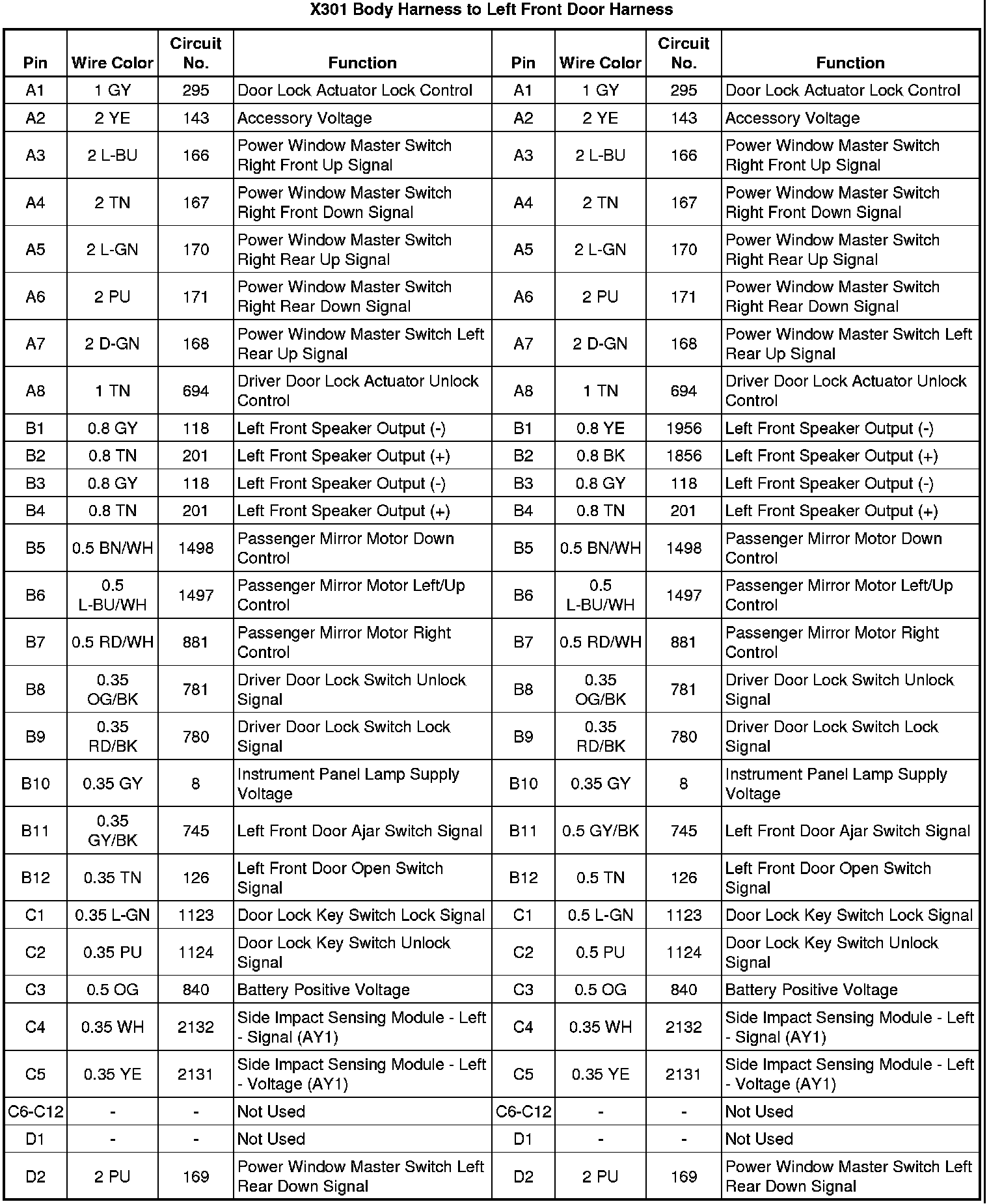

X301 Body Harness to Left Front Door Harness
