Pontiac
>>
2008
>>
Grand Prix V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X200-X299
>>
X241
X241

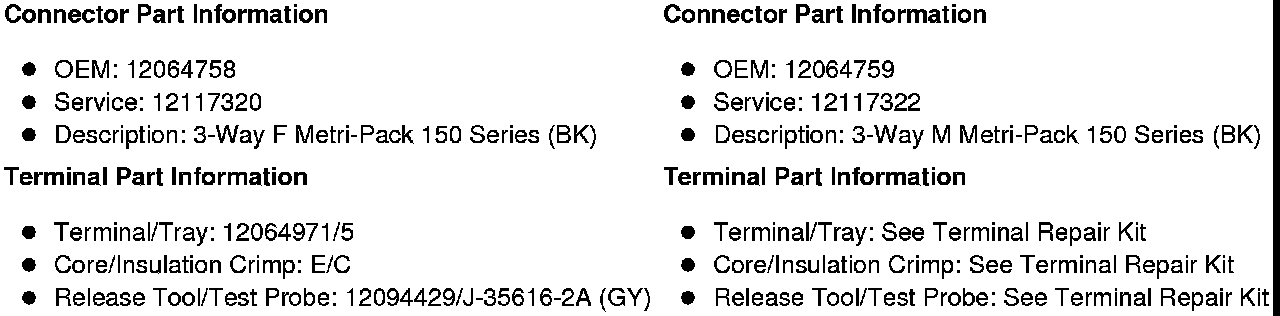

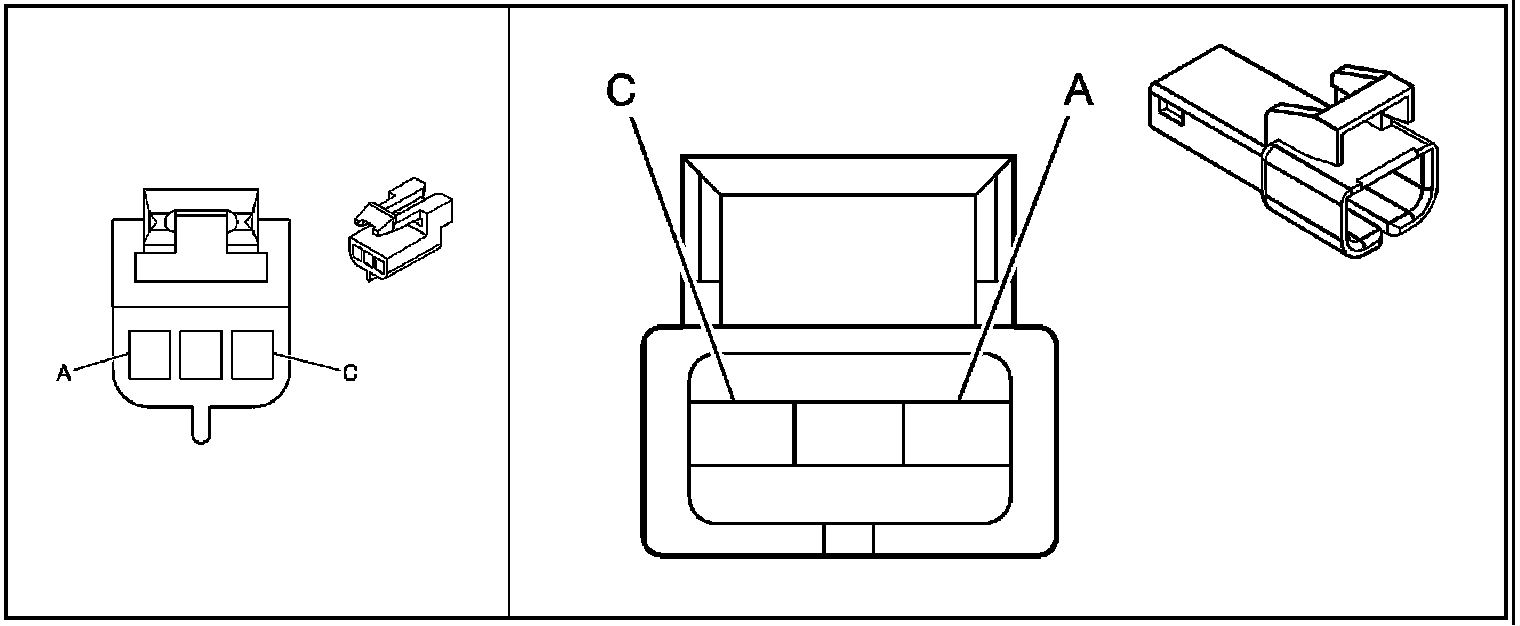

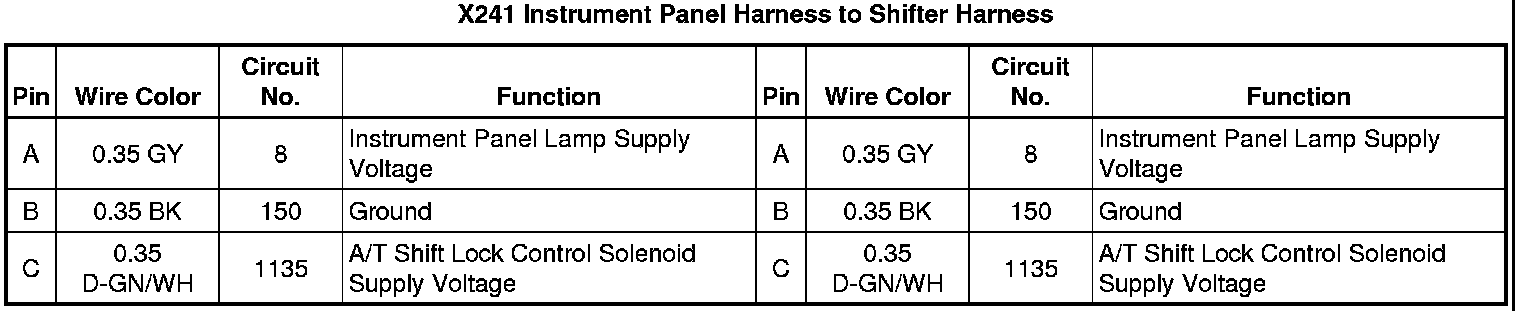

X241 Instrument Panel Harness to Shifter Harness
